LT 2316 CM (960510020-03) - Jonsered Lawn Tractor (2013-05) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

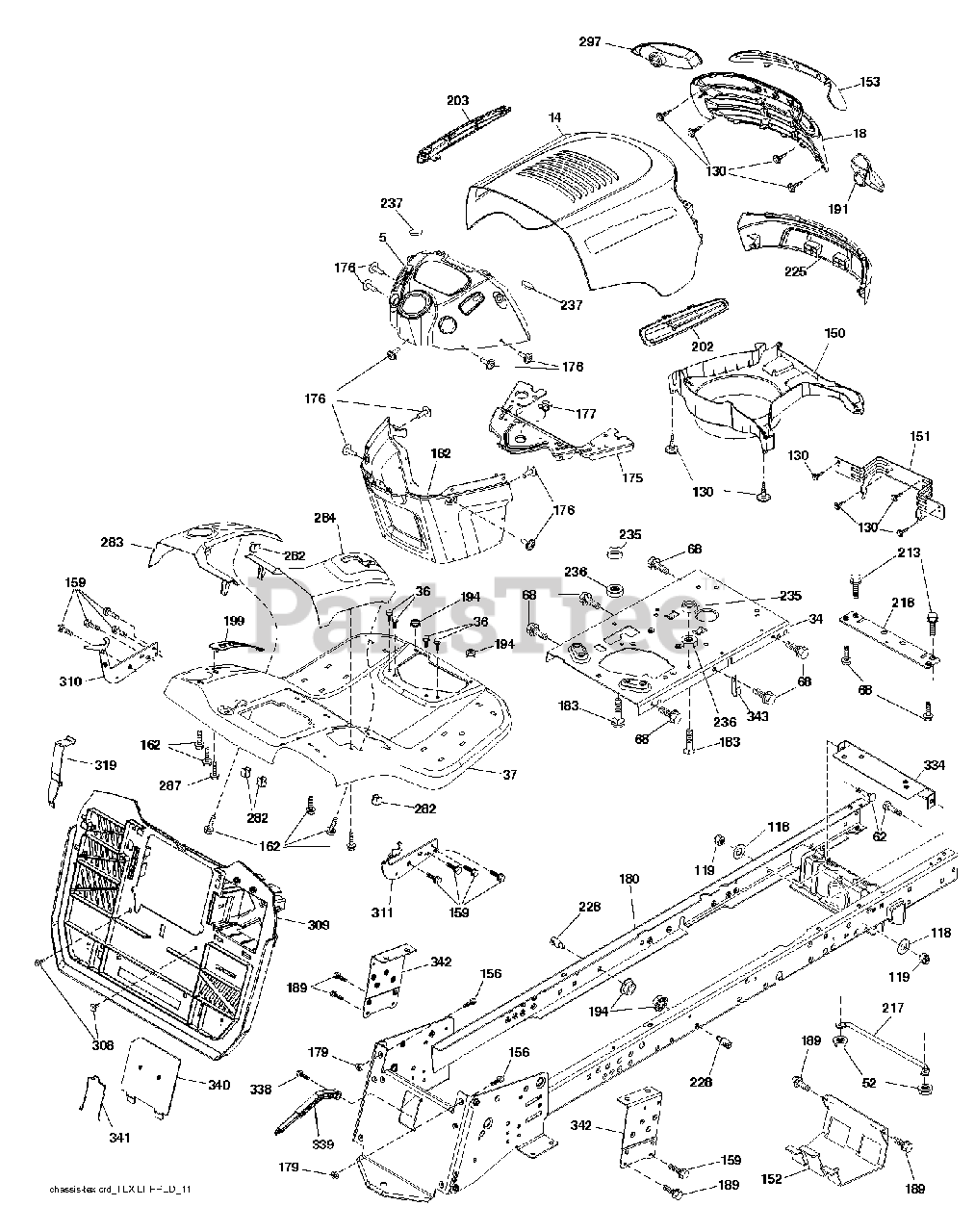

CHASSIS ENCLOSURES Parts Diagram

  • Title
5

Jonsered 532409597

No Description Available
(Superseded to 583745601)

$54.99

$

Usually ships in 3-10 days

0

14

Jonsered 532441287

No Description Available

$102.99

$

Usually ships in 3-10 days

0

18

Jonsered 532426511

No Description Available

$40.99

$

Usually ships in 3-10 days

0

34

Jonsered 580910901

No Description Available
(Superseded to 593944402)

$85.99

$

Usually ships in 3-10 days

0

36

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532442231

No Description Available

$157.99

$

Usually ships in 3-10 days

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

62

$6.49

$

Usually ships in 3-10 days

0

68

$6.49

$

Usually ships in 3-10 days

0

118

$4.99

$

In Stock, Qty 5

0

119

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 8

0

130

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

150

Jonsered 532400267

No Description Available

$34.99

$

Usually ships in 3-10 days

0

151

Jonsered 532187568

BRACKET.PIVOT.ALPHA.LT

$28.99

$

Usually ships in 3-10 days

0

152

Jonsered 532199535

SHIELD BROWNING

$

$

Not available

153

Jonsered 532444264

LENS.PREDATOR.LT

$22.99

$

Usually ships in 3-10 days

0

156

Jonsered 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

159

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

162

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Jonsered 532199472

CROSSMEMBER

$28.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Jonsered 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

180

Jonsered 532435472

No Description Available

$

$

Not available

182

Jonsered 532407176

DASH.LWER.PREDATOR/HUSQ.LT

$79.99

$

Usually ships in 3-10 days

0

183

Jonsered 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

191

Jonsered 532416502

INSERT.REFLECT.PREDATOR.LT.RH

$28.99

$

Usually ships in 3-10 days

0

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

199

Jonsered 532418739

No Description Available
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

202

Jonsered 532424322

No Description Available

$

$

Not available

203

Jonsered 532424323

No Description Available

$15.99

$

Usually ships in 3-10 days

0

213

Jonsered 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Jonsered 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Jonsered 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

225

Jonsered 532441487

No Description Available

$46.99

$

Usually ships in 3-10 days

0

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

237

Jonsered 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

282

Jonsered 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

283

Jonsered 532440361

No Description Available

$125.99

$

Usually ships in 3-10 days

0

284

Jonsered 532440528

No Description Available

$

$

Not available

287

$6.49

$

In Stock, only 2 left!

0

297

Jonsered 532401827

REFLECTOR.INSERT.PRED.LH.LT

$28.99

$

Usually ships in 3-10 days

0

308

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 6

0

309

Jonsered 584441101

No Description Available
(Superseded to 501494701)

$102.99

$

Usually ships in 3-10 days

0

310

Jonsered 532446636

No Description Available
(Superseded to 583586501)

$40.99

$

Usually ships in 3-10 days

0

311

Jonsered 532446637

No Description Available
(Superseded to 583586601)

$40.99

$

Usually ships in 3-10 days

0

319

Jonsered 532174662

No Description Available

$5.99

$

Usually ships in 3-10 days

0

334

Jonsered 532442537

No Description Available
(Superseded to 583564401)

$12.99

$

Usually ships in 3-10 days

0

338

Jonsered 532436640

No Description Available
(Superseded to 583510201)

$6.49

$

Usually ships in 3-10 days

0

339

Jonsered 532436641

No Description Available
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

340

Jonsered 532440931

No Description Available

$9.49

$

Usually ships in 3-10 days

0

341

Jonsered 532436638

No Description Available
(Superseded to 583510101)

$4.99

$

Usually ships in 3-10 days

0

342

Jonsered 532435938

No Description Available
(Superseded to 583507901)

$8.99

$

Usually ships in 3-10 days

0

343

Jonsered 532440749

No Description Available

$

$

Not available
