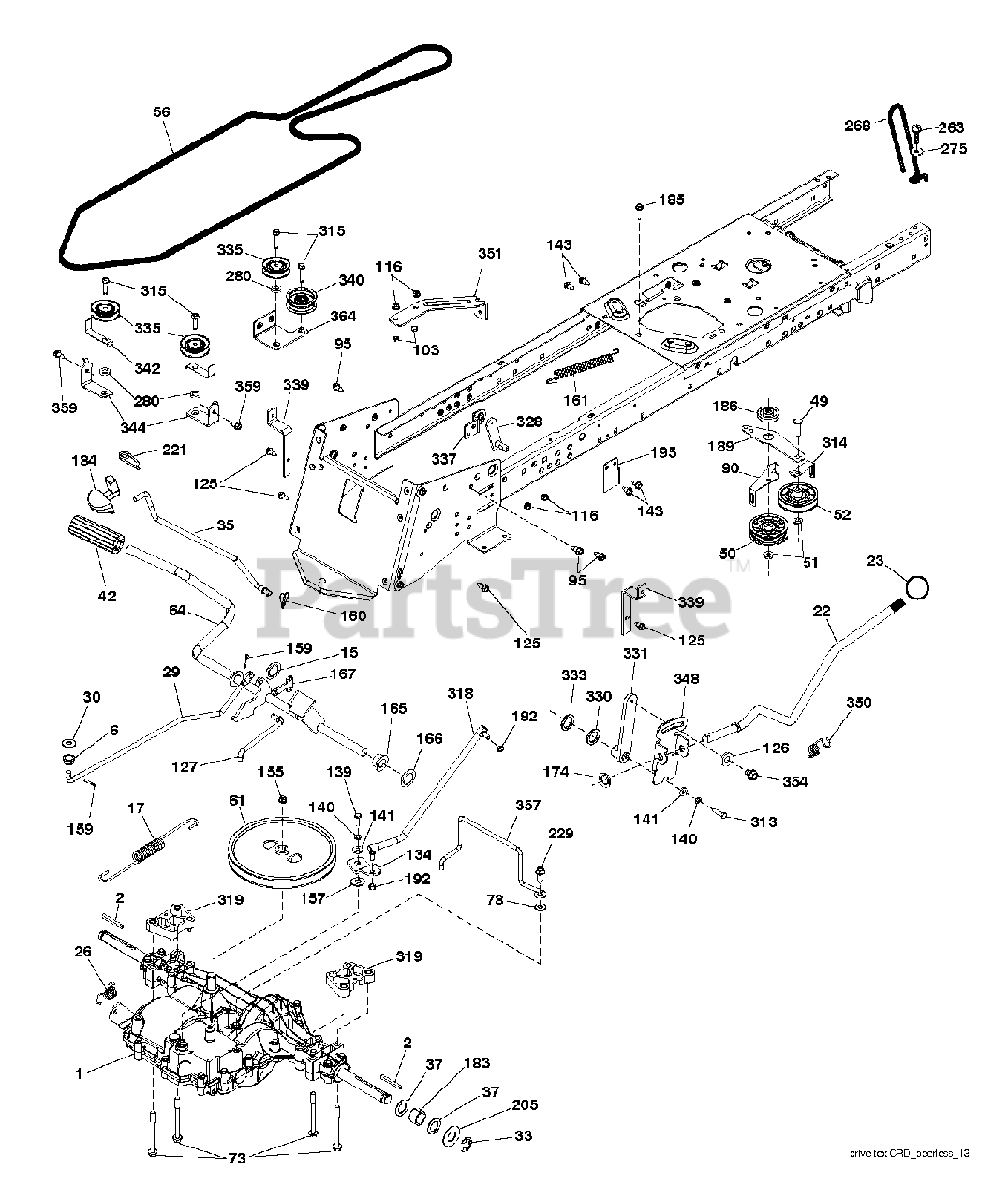

LT 2316 CM (960510004-02) - Jonsered Lawn Tractor (2012-08) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
1

Jonsered 000000000

No Description Available

Note: TRANSAXLE PEERLESS 206-578 (436815)

$

$

Not available

2

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

6

Jonsered 532124208

MANDREL ASS'Y

$193.99

$

Usually ships in 3-10 days

0

15

$4.99

$

In Stock, Qty 5

0

17

Jonsered 532440867

No Description Available
(Superseded to 583552401)

$7.99

$

Usually ships in 3-10 days

0

22

Jonsered 532443246

No Description Available

$

$

Not available

23

Jonsered 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

26

Jonsered 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 2 left!

0

29

Jonsered 532437016

No Description Available

$

$

Not available

30

Jonsered 819131616

No Description Available
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

33

Jonsered 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Jonsered 532401031

ROD, BRAKE, PARK

$18.99

$

Usually ships in 3-10 days

0

37

$3.49

$

Usually ships in 3-10 days

0

42

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Jonsered 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Jonsered 532438285

No Description Available

$

$

Not available

51

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Jonsered 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Jonsered 532436384

No Description Available
(Superseded to 583508901)

$109.99

$

Usually ships in 3-10 days

0

61

Jonsered 532165999

No Description Available
(Superseded to 584450701)

$60.99

$

Usually ships in 3-10 days

0

64

Jonsered 532196200

SHAFT.ASM.PEDAL.BRAKE.

$56.99

$

Usually ships in 3-10 days

0

73

Jonsered 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

78

Jonsered 819111212

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

90

Jonsered 532443605

No Description Available
(Superseded to 583570001)

$5.99

$

Usually ships in 3-10 days

0

95

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

103

Jonsered 873350500

JAM NUT TI

$8.99

$

Usually ships in 3-10 days

0

116

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

126

Jonsered 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

127

Jonsered 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

134

Jonsered 532145090

ARM SHIFT

$7.99

$

Usually ships in 3-10 days

0

139

Jonsered 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

140

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

141

Jonsered 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 2 left!

0

143

$6.49

$

Usually ships in 3-10 days

0

155

Jonsered 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

157

Jonsered 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

159

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Jonsered 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Jonsered 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 2 left!

0

165

Jonsered 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

166

Jonsered 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Jonsered 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

174

Jonsered 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

183

Jonsered 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

184

Jonsered 532441407

HANDLE.PARKING.BRK.PRED.LT.RED
(Superseded to 532199996)

$66.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 10

0

186

Jonsered 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

189

Jonsered 532433611

No Description Available
(Superseded to 583492701)

$7.49

$

Usually ships in 3-10 days

0

192

Jonsered 532150360

NUT LOCK CENTER 1/4 -28 FNTHD
(Superseded to 873610400)

$

$

Not available

195

Jonsered 532435865

No Description Available

$

$

Not available

205

$4.99

$

In Stock, Qty 20+

0

221

Jonsered 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 3 left!

0

229

Jonsered 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

263

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

268

Jonsered 532182402

No Description Available
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

275

Jonsered 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

280

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

314

Jonsered 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

315

Jonsered 817580520

BOLT.5/16-18X1.25

$4.99

$

In Stock, only 3 left!

0

318

Jonsered 532437022

No Description Available
(Superseded to 583515501)

$

$

Not available

319

Jonsered 532436794

No Description Available

$

$

Not available

328

Jonsered 532437958

No Description Available

$

$

Not available

330

Jonsered 532169593

WASHER.NYL.7/8IDX.105"HYD CR

$11.99

$

Usually ships in 3-10 days

0

331

Jonsered 532443606

No Description Available
(Superseded to 583570101)

$20.99

$

Usually ships in 3-10 days

0

333

Jonsered 532170868

No Description Available

$8.99

$

In Stock, only 4 left!

0

335

Jonsered 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

337

Jonsered 532435937

No Description Available
(Superseded to 583507801)

$7.99

$

Usually ships in 3-10 days

0

339

Jonsered 532436867

No Description Available
(Superseded to 583512601)

$3.99

$

Usually ships in 3-10 days

0

340

Jonsered 532436812

No Description Available
(Superseded to 583512101)

$31.99

$

Usually ships in 3-10 days

0

342

Jonsered 532182682

No Description Available
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

344

Jonsered 532435645

No Description Available
(Superseded to 583506401)

$5.99

$

Usually ships in 3-10 days

0

348

Jonsered 532443607

No Description Available
(Superseded to 583570201)

$9.49

$

Usually ships in 3-10 days

0

350

Jonsered 532445020

No Description Available

$4.99

$

Usually ships in 3-10 days

0

351

Jonsered 532436998

No Description Available
(Superseded to 583515101)

$9.99

$

Usually ships in 3-10 days

0

354

$4.99

$

Usually ships in 3-10 days

0

357

Jonsered 532441338

No Description Available

$

$

Not available

359

Jonsered 817490610

SCREW LT.3/8-46X5/8

$4.99

$

Usually ships in 3-10 days

0

364

Jonsered 532443032

No Description Available
(Superseded to 583567401)

$9.49

$

Usually ships in 3-10 days

0
