LT 2313 CA (960510130-01) - Jonsered Lawn Tractor (2015-04) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

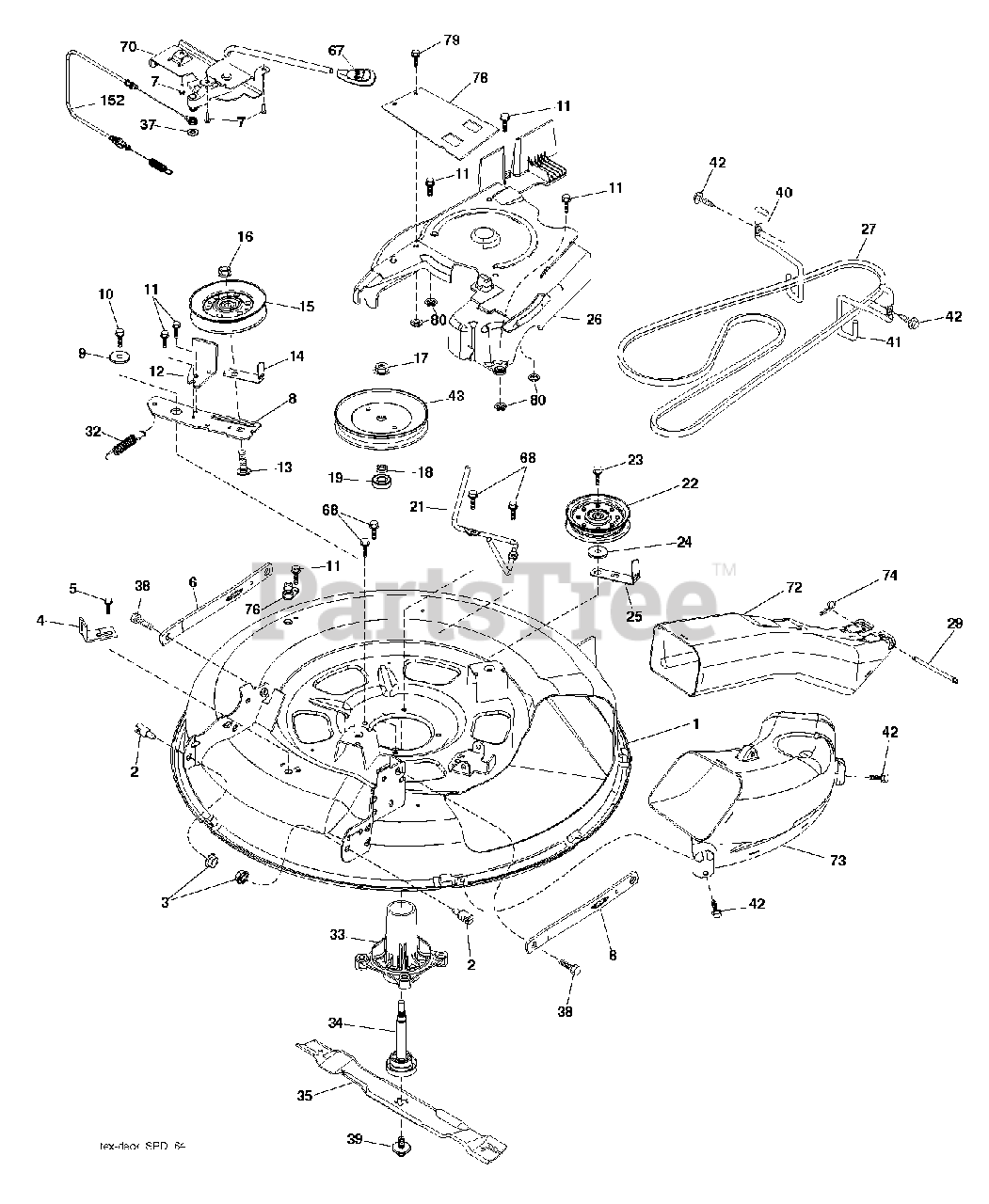

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532419272

No Description Available
(Superseded to 583749801)

$399.99

$

Usually ships in 3-10 days

0

2

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

3

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

4

Jonsered 532417645

No Description Available

$5.99

$

Usually ships in 3-10 days

0

5

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

6

Jonsered 532418863

ARMS.SUSP.MOWER.REAR.SRD

$20.99

$

Usually ships in 3-10 days

0

7

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

8

Jonsered 532420252

No Description Available
(Superseded to 583379801)

$10.99

$

Usually ships in 3-10 days

0

9

Jonsered 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

10

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

11

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

12

Jonsered 532199470

ARM BRAKE MOWER RH
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

13

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

15

Jonsered 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

16

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

18

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

19

$13.99

$

In Stock, Qty 11

0

21

Jonsered 532416910

No Description Available

$15.99

$

Usually ships in 3-10 days

0

22

Jonsered 532175820

PULLEY.IDLER.FLAT.46.PR.DR.
(Superseded to 596481401)

$26.99

$

In Stock, only 1 left!

0

23

Jonsered 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

24

$1.99

$

Usually ships in 3-10 days

0

25

Jonsered 532420253

No Description Available
(Superseded to 529311701)

$6.49

$

Usually ships in 3-10 days

0

26

Jonsered 532420255

No Description Available
(Superseded to 583481101)

$56.99

$

Usually ships in 3-10 days

0

27

Jonsered 532419271

V-BELT.DRIVE.MOWER.30"

$60.99

$

Usually ships in 3-10 days

0

29

Jonsered 532420895

No Description Available
(Superseded to 593885101)

$6.99

$

In Stock, Qty 5

0

32

Jonsered 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

33

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

34

Jonsered 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

35

Jonsered 532419274

BLADE.MOWER.BAGGING.30"

$34.99

$

In Stock, only 1 left!

0

37

$4.99

$

In Stock, Qty 5

0

38

Jonsered 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

39

Jonsered 584309301

Screw, 7/16 X 20 X 1"

$3.99

$

Usually ships in 3-10 days

0

40

Jonsered 532419270

No Description Available

$17.99

$

In Stock, only 1 left!

0

41

Jonsered 532419265

No Description Available

$15.99

$

In Stock, only 4 left!

0

42

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

43

Jonsered 532416877

PULLEY, MANDREL 6.5 PD
(Superseded to 525568001)

$34.99

$

In Stock, only 1 left!

0

67

Jonsered 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

68

Jonsered 584953901

Hex Washer Head Bolt, .313-18 X 1.19

$4.99

$

In Stock, Qty 20+

0

70

Jonsered 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$80.99

$

In Stock, only 1 left!

0

72

Jonsered 532417236

No Description Available
(Superseded to 583364501)

$72.99

$

In Stock, only 1 left!

0

73

Jonsered 532425274

No Description Available

$79.99

$

Usually ships in 3-10 days

0

74

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

76

Jonsered 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 10

0

78

Jonsered 532422566

No Description Available

$

$

Not available

79

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Jonsered 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

152

Jonsered 532435111

CABLE.CLUTCH.MANUAL.

$34.99

$

In Stock, only 1 left!

0

--

Jonsered 587253301

Mandrel Assembly, Non-Greaseable
(Superseded to 587819701)

Note: MANDREL ASSEMBLY (Includes Housing (Key 14) Shaft Assembly (Key 13) and Bearing Only (Key 15)- Pulley /Nut /Washer and Blade Bolt /Washers Not Included)

$56.99

$

In Stock, Qty 20+

0

--

Jonsered 532431550

No Description Available

Note: NOT SHOWN

$

$

Not available
