LT 2246 (2691029-01) - Snapper 46" Lawn Tractor, 22hp Seat & Seat Deck Group - EVAP Compliant Parts Diagram

46" Lawn Tractor, 22hp

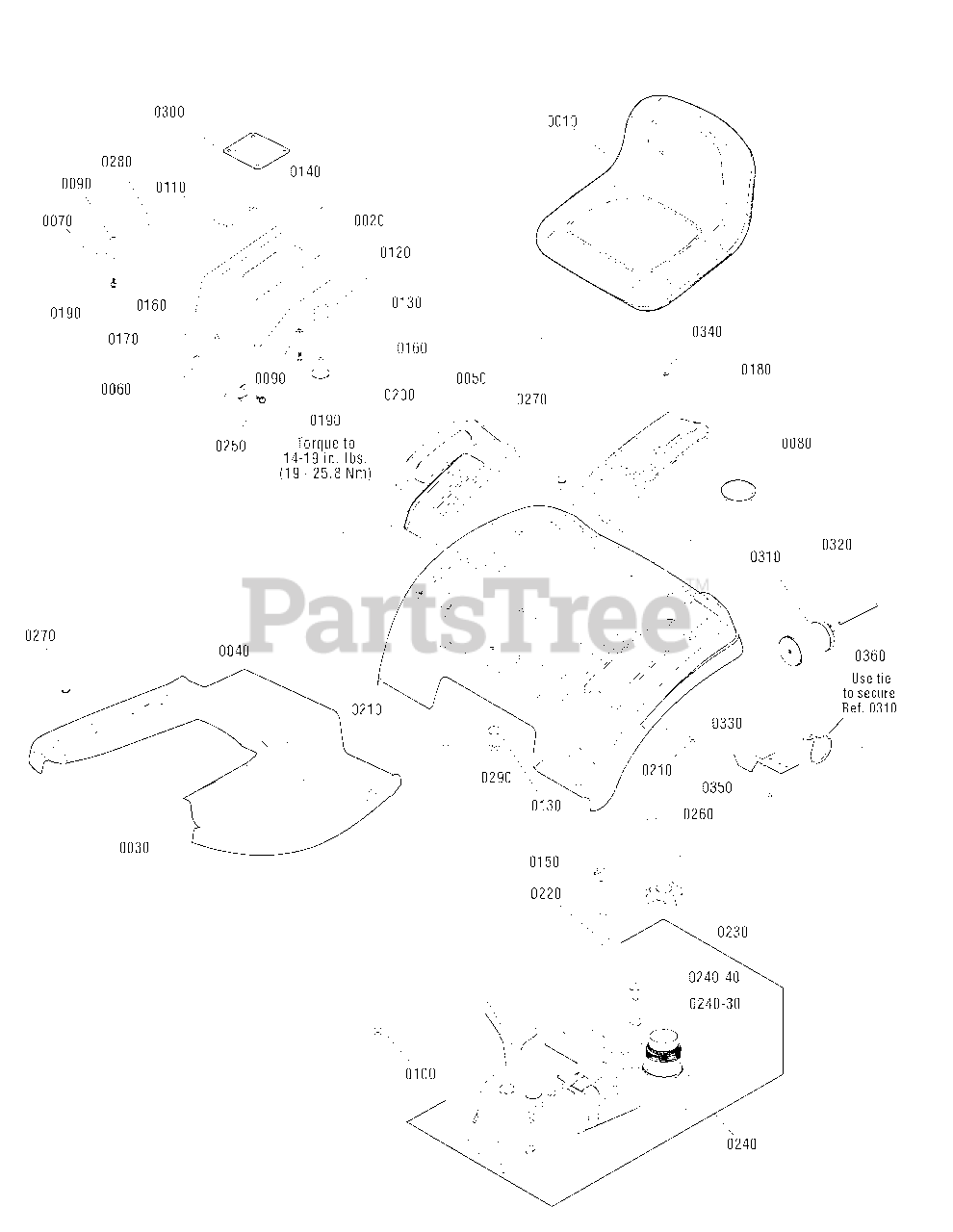

Seat & Seat Deck Group - EVAP Compliant Parts Diagram

  • Title

0010

Snapper 1752062YP

SEAT, 15" Back
(Superseded to 1761589YP)

$213.99

$

Usually ships in 2-12 days

0

0020

Snapper 1727265SM

SUPPORT, Seat

$102.99

$

Usually ships in 2-12 days

0

0030

Snapper 1722105DSM

TUNNEL

$201.99

$

Usually ships in 2-12 days

0

0040

Snapper 1722106DSM

DECK, Seat

$512.99

$

Usually ships in 2-12 days

0

0050

Snapper 1722108SM

POD, RH with 2 Slots
(Superseded to 1687790YP)

$103.99

$

Usually ships in 2-12 days

0

0060

Snapper 1738233AYP

SUPPORT, Seat Pivot

$16.99

$

Usually ships in 2-12 days

0

0070

Snapper 1727268SM

LATCH, Seat

$8.99

$

Usually ships in 2-12 days

0

0080

Snapper 1722309SM

PLUG, Plastic

$5.99

$

In Stock, Qty 11

0

0090

Snapper 1919381SM

WASHER, 5/16 x 1
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0100

Snapper 1930591SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

0110

Snapper 1731300SM

SPACER, 5/16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

0120

Snapper 1704728SM

SPRING, Compression, 2" Long

$9.99

$

In Stock, only 2 left!

0

0130

Snapper 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 2 left!

0

0140

Snapper 1960282SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0150

Snapper 1726902SM

TUBE & ELBOW ASSEMBLY
(Superseded to 1757609YP)

$19.99

$

Usually ships in 2-12 days

0

0160

Snapper 1960686SM

NUT, Hex Flange, 5/16-18, ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 1931334SM

BOLT, Carriage, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

0180

Snapper 1729711SM

POD, with Cup Holder, LH
(Superseded to 1687789YP)

$103.99

$

Usually ships in 2-12 days

0

0190

Snapper 1930595SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

0200

Snapper 1704724SM

COVER, Spring, 1-1/2 Long

$7.99

$

In Stock, only 4 left!

0

0210

Snapper 2860664SM

SCREW, Conical Washer, 1/4-20 x 7/8 Dog Point

$5.99

$

In Stock, only 2 left!

0

0220

Snapper 1654930SM

BUSHING, 3/8 x 9/16 x 5/8, Rubber

$7.99

$

In Stock, Qty 20+

0

0230

Snapper 5103005YP

CAP, Gas
(Superseded to 1761224YP)

$48.99

$

In Stock, Qty 6

0

0240

Snapper 1751622YP

TANK, Fuel

$365.99

$

Usually ships in 2-12 days

0

0240-30

Snapper 799624

GROMMET

$8.99

$

In Stock, Qty 15

0

0240-40

Snapper 7104638YP

REMOTE VENT ASSEMBLY

$

$

Not available

0250

Snapper 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0260

Snapper 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0270

Snapper 1930601SM

CAPSCREW, Hex Flange Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0280

Snapper 2172434SM

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

0290

Snapper 1919438SM

NUT, Hex Lock, ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0300

Snapper 1739571AYP

SPACER PLATE

$13.99

$

Usually ships in 2-12 days

0

0310

Snapper 1751599YP

CANISTER, Carbon, 300cc

$59.99

$

Usually ships in 2-12 days

0

0320

Snapper 7700552X5YP

HOSE, Vapor
(Superseded to 7700552X12YP)

$5.49

$

In Stock, only 2 left!

0

0330

Snapper 1752099AYP

BRACKET, Canister Mounting

$20.99

$

Usually ships in 2-12 days

0

0340

Snapper 1960589SM

SCREW, Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0350

Snapper 1960591SM

NUT, Hex KEPS, #10-24

$3.49

$

In Stock, Qty 8

0

0360

Snapper 1701011SM

TIE, Self Locking, 15 Long

$5.49

$

In Stock, only 2 left!

0
