LT 2227 A2 (960410146-02) - Husqvarna Lawn Tractor (2012-08) ENGINE Parts Diagram

Lawn Tractor

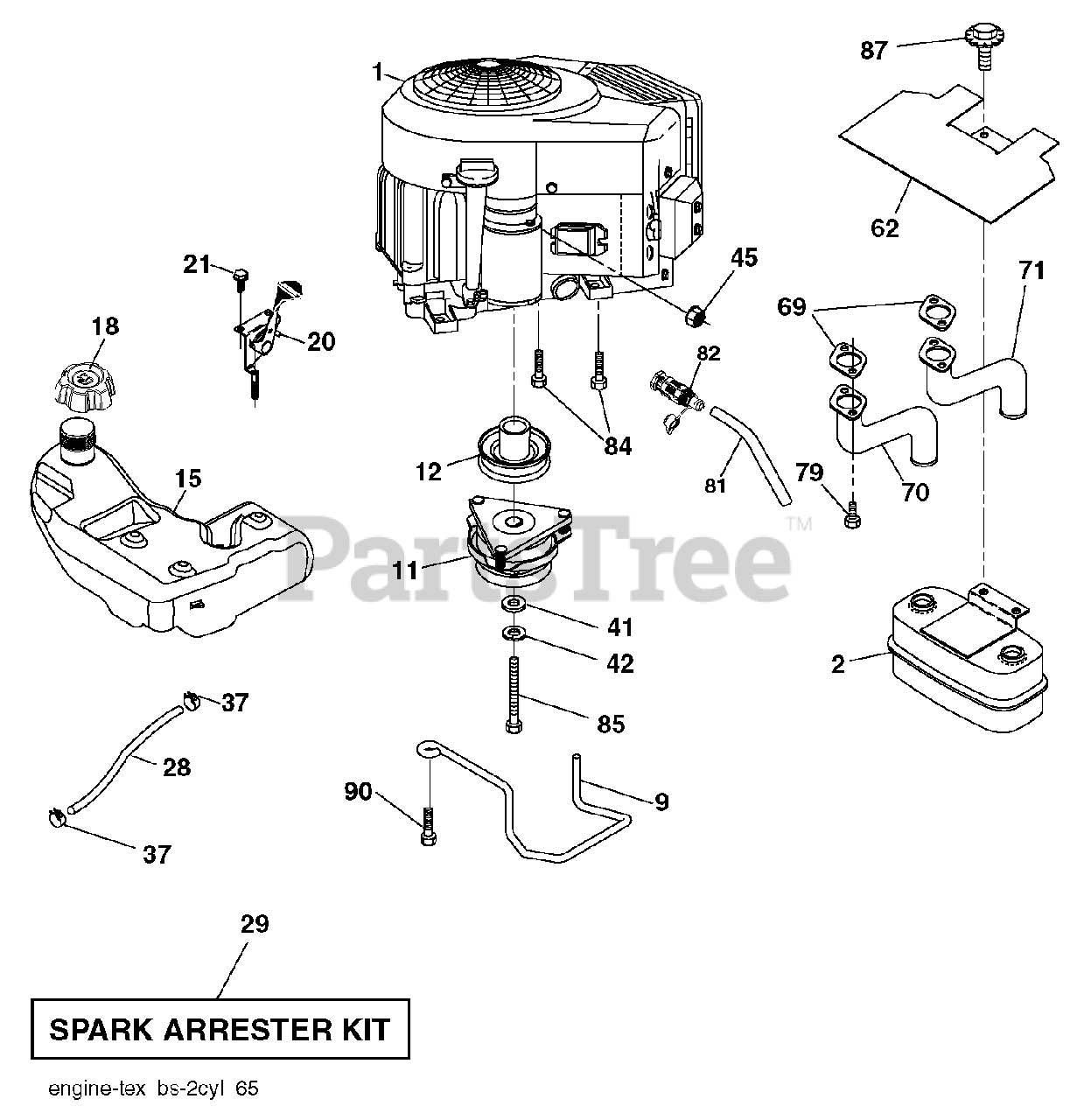

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: ENGINE B S MODEL NO 44Q777-1583-G5 (442590)

$

$

Not available

2

Electrolux/AYP 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532408667

KEEPER.BELT.ENGINE.4.25"

$13.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532179335

CLUTCH ELECTRIC
(Superseded to 532414737)

$338.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 532194343

PULLEY ENGINE

$74.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532430218

CAP.ASM.FUEL.TANK.3"BLACK
(Superseded to 584248701)

$17.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.

$30.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Electrolux/AYP 532142158

Fuel Line
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532137180

ARRESTER SPARK (OPTIONAL)
(Superseded to 532121851)

$

$

Not available

37

Electrolux/AYP 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

42

Electrolux/AYP 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Electrolux/AYP 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Electrolux/AYP 532159955

EXHAUST TUBE LH *SUBS/2*
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

71

Electrolux/AYP 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

79

Electrolux/AYP 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

82

Electrolux/AYP 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Electrolux/AYP 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Electrolux/AYP 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5

$7.49

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

90

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0
