LT 2227 A2 (960410146-01) - Jonsered Lawn Tractor (2011-04) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

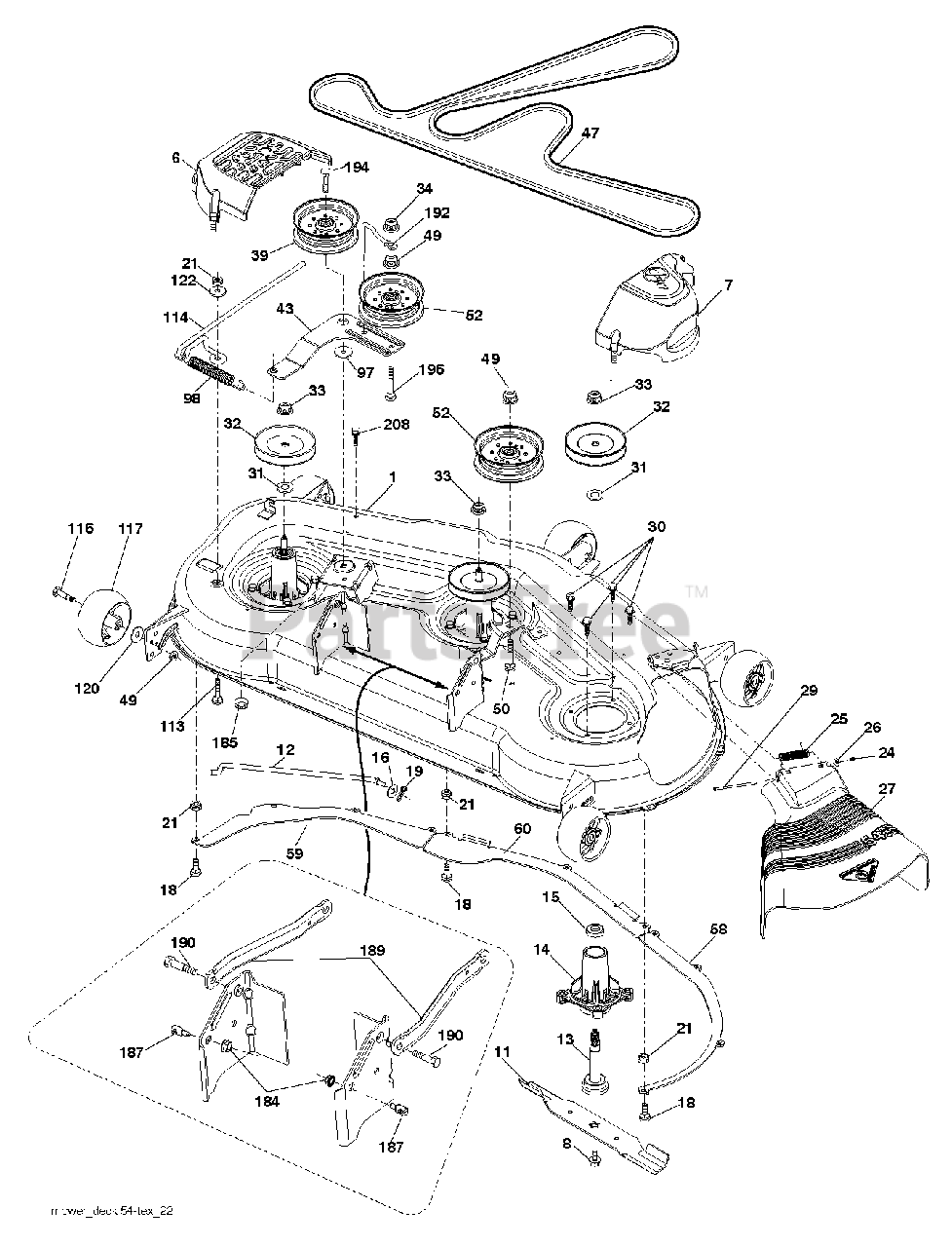

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532195632

DECK.WELDMENT.54'
(Superseded to 583240501)

$854.99

$

Usually ships in 3-10 days

0

6

Jonsered 532196066

COVER.MANDREL.LH.54"20

$34.99

$

In Stock, only 1 left!

0

7

Jonsered 532197181

COVER.MANDREL.RH.54.20

$47.99

$

In Stock, only 1 left!

0

8

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Jonsered 532187256

BLADE, BAGGING 54"
(Superseded to 594892901)

$22.99

$

In Stock, Qty 19

0

12

Jonsered 532400337

ROD.ANTI.SWAY.48/54"TE
(Superseded to 596274401)

$11.99

$

In Stock, only 3 left!

0

13

Jonsered 532187291

SHAFT ASM MANDREL
(Superseded to 597023501)

$28.99

$

In Stock, Qty 7

0

14

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

$13.99

$

In Stock, Qty 14

0

16

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 1 left!

0

18

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 532188938

DEFLECTOR
(Superseded to 532187257)

$80.99

$

In Stock, Qty 8

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

32

Jonsered 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

39

Jonsered 532197380

PULLEY.IDLER.4.50/HUB SPECIAL
(Superseded to 532196104)

$43.99

$

In Stock, Qty 19

0

43

Jonsered 532196065

ARM.IDLER

$15.99

$

Usually ships in 3-10 days

0

47

Jonsered 532196103

BELT.DRIVE.54."2006
(Superseded to 587686701)

$62.99

$

In Stock, Qty 8

0

49

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Jonsered 872110616

BOLT
(Superseded to 596136301)

$3.99

$

Usually ships in 3-10 days

0

52

Jonsered 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

58

Jonsered 532187342

BAFFLE.RIGHT.54"

$12.99

$

Usually ships in 3-10 days

0

59

Jonsered 532187344

BAFFLE.LEFT.54"

$

$

Not available

60

Jonsered 532187607

BAFFLE CENTER 54" MOWER

$22.99

$

In Stock, only 2 left!

0

97

$6.99

$

Usually ships in 3-10 days

0

98

Jonsered 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 11

0

113

$4.99

$

Usually ships in 3-10 days

0

114

Jonsered 532187556

ROD TENSION RELIEF

$24.99

$

In Stock, only 1 left!

0

116

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Jonsered 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

120

$1.99

$

Usually ships in 3-10 days

0

122

Jonsered 532187557

BUSHING.RELIEF.TENSION

$9.49

$

In Stock, only 1 left!

0

184

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

185

Jonsered 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 14

0

187

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Jonsered 532195185

ARM.SUSPENSION.MOWER

$18.99

$

Usually ships in 3-10 days

0

190

Jonsered 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

192

Jonsered 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

194

Jonsered 874490736

BOLT.HEX.WASHER.HEAD.7/16-24X

$13.99

$

In Stock, only 4 left!

0

196

Jonsered 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

208

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

-

Jonsered 532187292

MANDREL ASM. SERVICE
(Superseded to 587820301)

$56.99

$

In Stock, Qty 18

0

-

Jonsered 532197701

No Description Available

$

$

Not available
