LT 2227 A2 (960410146-01) - Jonsered Lawn Tractor (2011-04) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

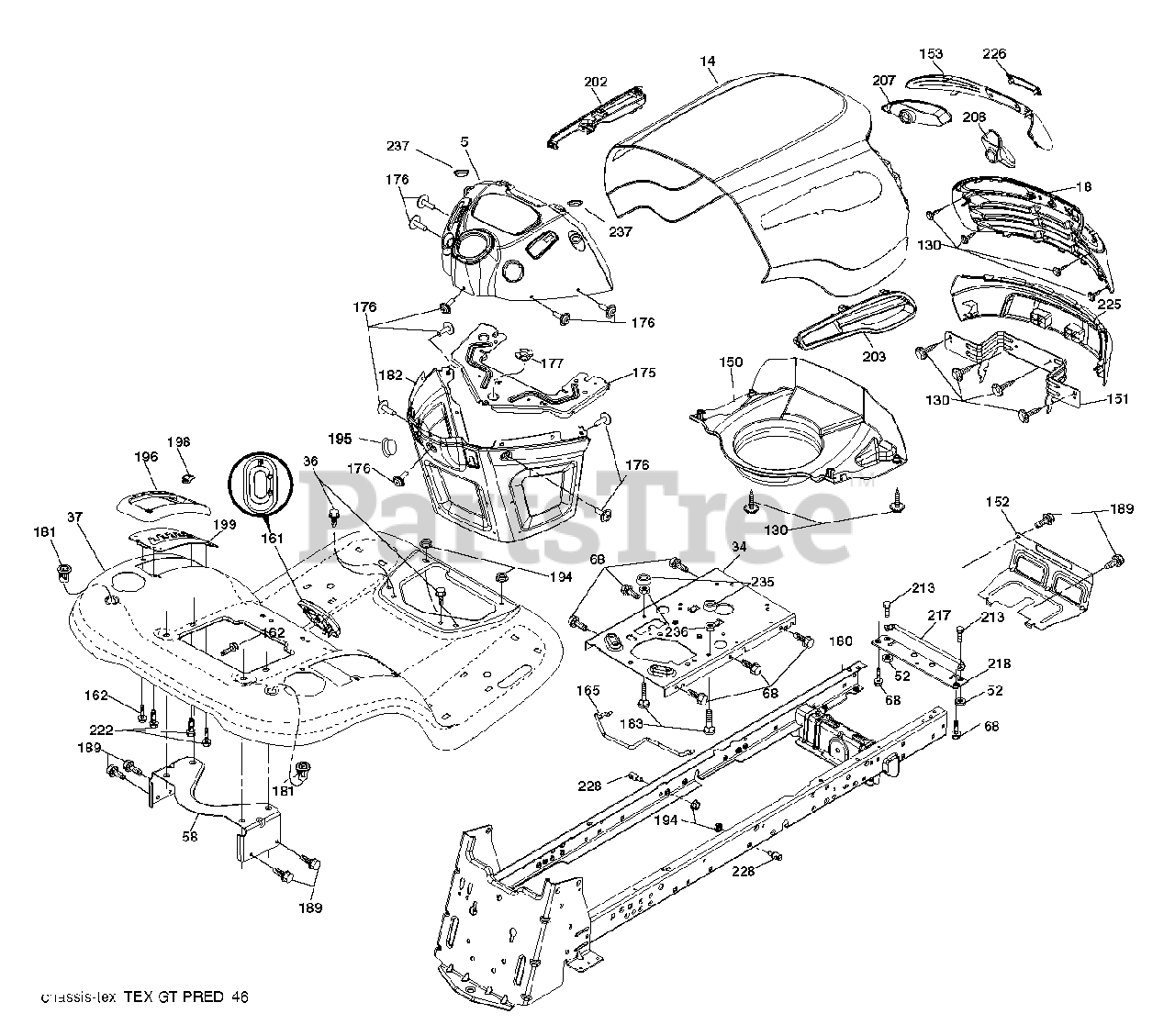

CHASSIS ENCLOSURES Parts Diagram

  • Title
5

Jonsered 532428271

No Description Available

$60.99

$

Usually ships in 3-10 days

0

14

Jonsered 532443824

No Description Available

$91.99

$

Usually ships in 3-10 days

0

18

Jonsered 532427333

No Description Available

$56.99

$

Usually ships in 3-10 days

0

34

Jonsered 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

36

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532443816

No Description Available

$241.99

$

Usually ships in 3-10 days

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Jonsered 532194314

BRKT.SUPPORT.FNDR/TANK

$27.99

$

Usually ships in 3-10 days

0

68

$6.49

$

Usually ships in 3-10 days

0

130

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

150

Jonsered 532199411

No Description Available

$21.99

$

Usually ships in 3-10 days

0

151

Jonsered 532196332

No Description Available

$

$

Not available

152

Jonsered 532199535

SHIELD BROWNING

$

$

Not available

153

Jonsered 532424717

No Description Available

$26.99

$

In Stock, only 1 left!

0

161

Jonsered 532411879

CONSOLE.FUEL.WINDOW.STGT.BLACK

$8.99

$

Usually ships in 3-10 days

0

162

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

165

Jonsered 532196826

SUPPORT.TANK.REAR.W/TE

$26.99

$

Usually ships in 3-10 days

0

175

Jonsered 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Jonsered 532195227

BUSHING,STEERING

$6.99

$

In Stock, Qty 15

0

180

Jonsered 532195477

CHASSIS.GT.SLOPED.DRAWBAR.
(Superseded to 582033001)

$284.99

$

Usually ships in 3-10 days

0

181

Jonsered 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Jonsered 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$96.99

$

In Stock, only 2 left!

0

183

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

195

Jonsered 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

196

Jonsered 532411878

No Description Available

$34.99

$

Usually ships in 3-10 days

0

198

Jonsered 532441552

INDICATOR.DECK.LIFT.RED

$15.99

$

Usually ships in 3-10 days

0

199

Jonsered 532196377

PLATE DECK LIFT

$24.99

$

Usually ships in 3-10 days

0

202

Jonsered 532423272

No Description Available

$

$

Not available

203

Jonsered 532423271

No Description Available

$

$

Not available

207

Jonsered 532198964

No Description Available
(Superseded to 583248901)

$39.99

$

Usually ships in 3-10 days

0

208

Jonsered 532198963

No Description Available
(Superseded to 583248801)

$26.99

$

Usually ships in 3-10 days

0

213

Jonsered 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Jonsered 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Jonsered 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

222

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

225

Jonsered 532443825

No Description Available

$36.99

$

Usually ships in 3-10 days

0

226

Jonsered 532424716

No Description Available

$7.49

$

Usually ships in 3-10 days

0

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

237

Jonsered 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0
