LT 2223 CMA2 (960610324-00) - Jonsered Lawn Tractor (2010-11) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

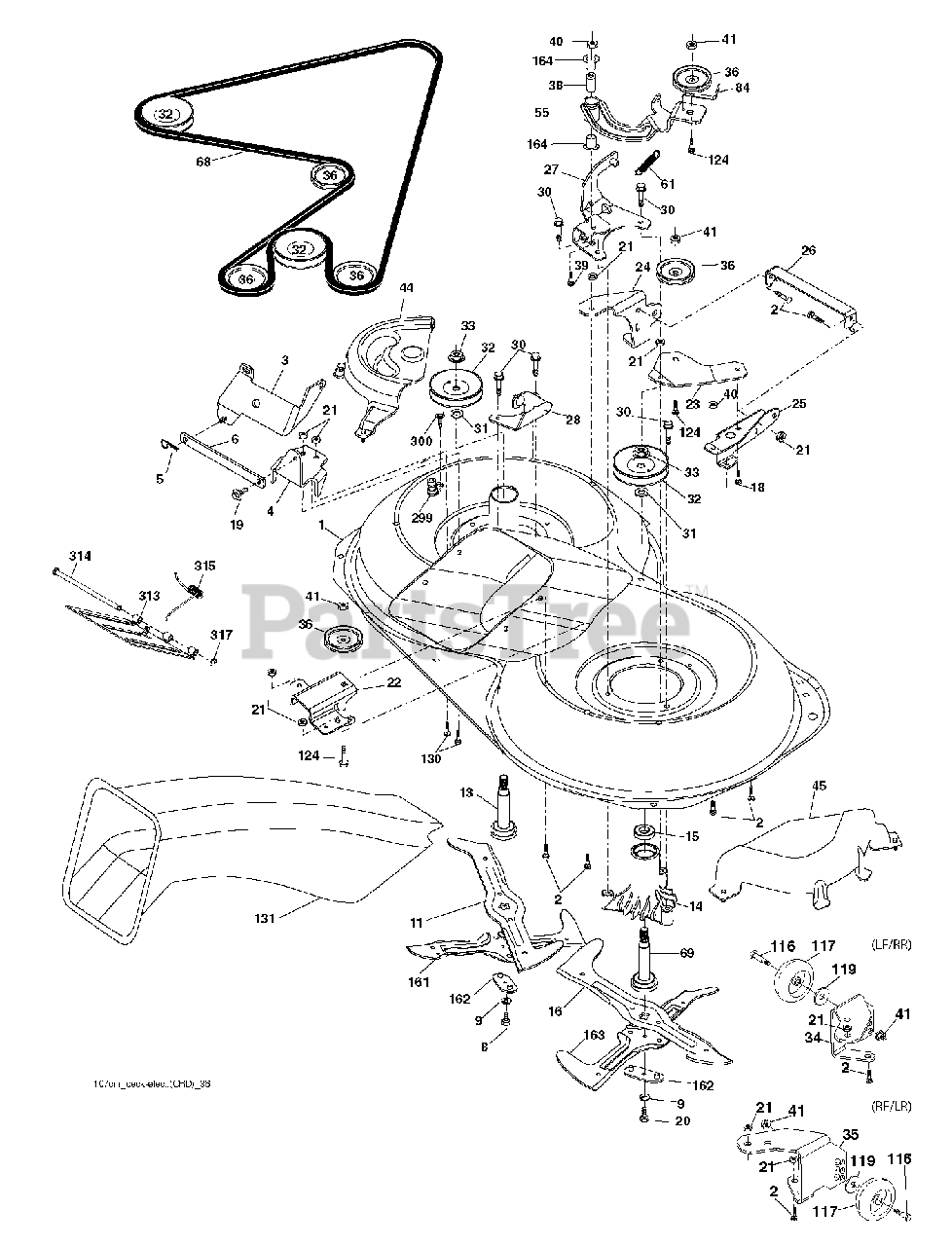

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532440453

No Description Available

$

$

Not available

2

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532431864

BRACKET.ASM.BAR.SWAY.CHASS

$24.99

$

Usually ships in 3-10 days

0

4

$

$

Not available

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532165557

BAR SWAY
(Superseded to 165557)

$

$

Not available

8

Jonsered 532181712

No Description Available
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

9

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

11

Jonsered 532180583

BLADE.3N1.LH.CRD

$36.99

$

In Stock, only 1 left!

0

13

Jonsered 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Jonsered 532128774

HSG MANDREL

$34.99

$

Usually ships in 3-10 days

0

15

$13.99

$

In Stock, Qty 11

0

16

Jonsered 532180584

BLADE.3N1.RH.CRD

$72.99

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Jonsered 532181713

No Description Available
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Jonsered 532169165

BRACKET
(Superseded to 169165)

$

$

Not available

23

Jonsered 532169166

BRACKET
(Superseded to 169166)

$26.99

$

Usually ships in 3-10 days

0

24

Jonsered 532413436

No Description Available
(Superseded to 583341901)

$27.99

$

Usually ships in 3-10 days

0

25

Jonsered 532400105

No Description Available
(Superseded to 583259001)

$48.99

$

Usually ships in 3-10 days

0

26

Jonsered 532400110

No Description Available
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

27

Jonsered 532169172

BRACKET
(Superseded to 169172)

$28.99

$

Usually ships in 3-10 days

0

28

Jonsered 532169168

No Description Available
(Superseded to 583029401)

$27.99

$

Usually ships in 3-10 days

0

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

32

Jonsered 532198145

No Description Available

$

$

Not available

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Jonsered 532400103

No Description Available
(Superseded to 583258801)

$26.99

$

Usually ships in 3-10 days

0

35

Jonsered 532400104

No Description Available
(Superseded to 583258901)

$22.99

$

Usually ships in 3-10 days

0

36

Jonsered 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

38

$10.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 10

0

40

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

41

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Jonsered 532432773

No Description Available

$

$

Not available

45

Jonsered 532432772

No Description Available

$

$

Not available

55

Jonsered 532169849

ARM IDLER

$34.99

$

Usually ships in 3-10 days

0

61

Jonsered 532199487

No Description Available
(Superseded to 583252701)

$9.49

$

Usually ships in 3-10 days

0

68

Jonsered 532402009

HEX-BELT 107 MOWER
(Superseded to 584897001)

$74.99

$

Usually ships in 3-10 days

0

69

Jonsered 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$68.99

$

Usually ships in 3-10 days

0

84

Jonsered 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

116

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Jonsered 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

119

$1.99

$

Usually ships in 3-10 days

0

124

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, Qty 20+

0

131

Jonsered 532438163

No Description Available

$

$

Not available

161

Jonsered 532180424

No Description Available

$

$

Not available

162

Jonsered 532180878

No Description Available

$

$

Not available

163

Jonsered 532180425

No Description Available
(Superseded to 583101701)

$66.99

$

Usually ships in 3-10 days

0

164

Jonsered 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

299

Jonsered 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 10

0

300

$7.49

$

In Stock, only 2 left!

0

313

Jonsered 532438197

No Description Available

$

$

Not available

314

Jonsered 532435861

No Description Available

$

$

Not available

315

Jonsered 532439928

No Description Available

$

$

Not available

317

Jonsered 532437988

E-RING.5/16"

$9.49

$

Usually ships in 3-10 days

0

--

Jonsered 532181857

No Description Available
(Superseded to 583118201)

$91.99

$

Usually ships in 3-10 days

0

--

Jonsered 532181858

No Description Available
(Superseded to 583118301)

$96.99

$

Usually ships in 3-10 days

0

--

Jonsered 532440713

No Description Available

$

$

Not available
