LT 2223 CMA2 (960610243-00) - Jonsered Lawn Tractor (2009-01) ENGINE Parts Diagram

Lawn Tractor

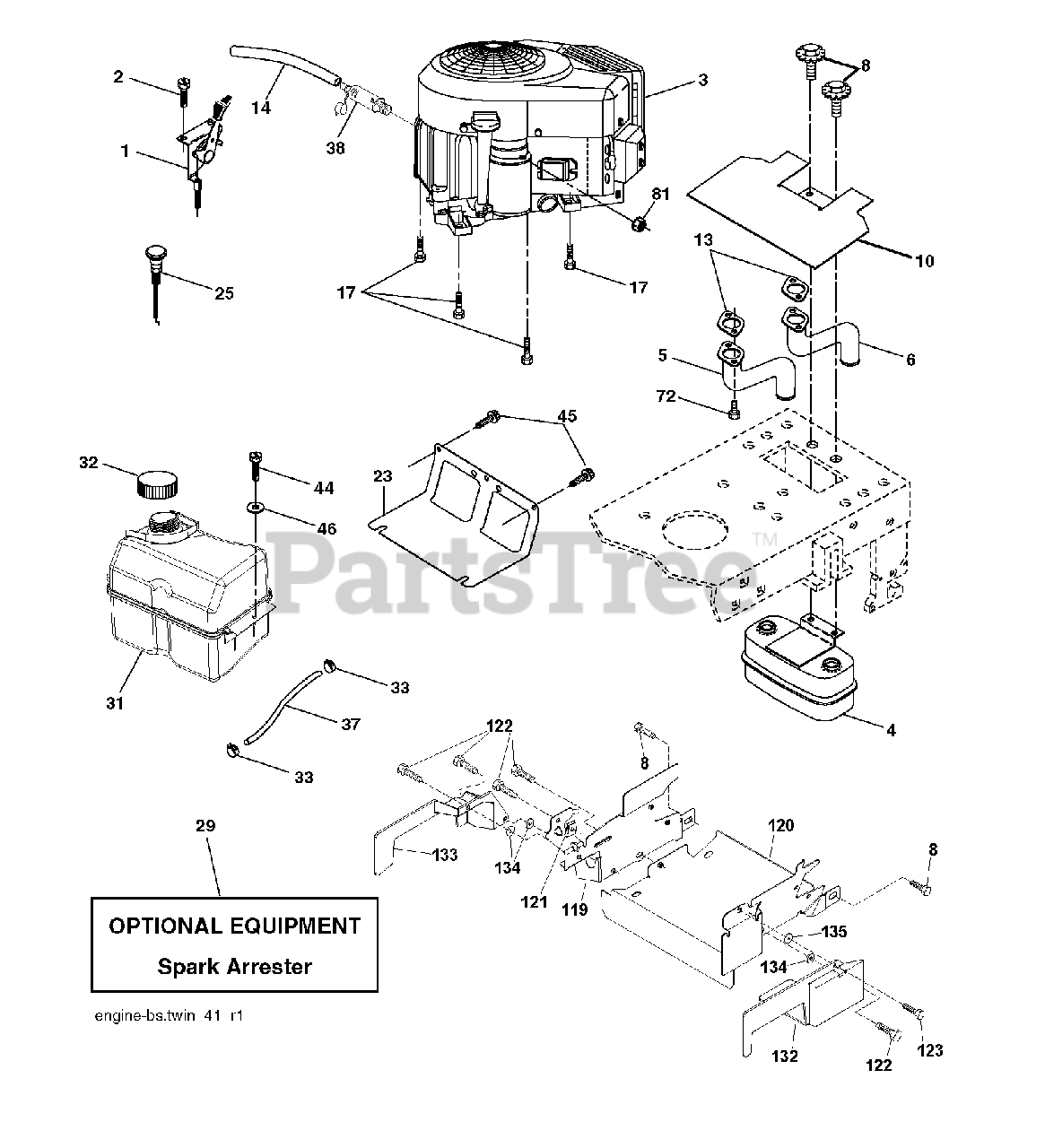

ENGINE Parts Diagram

  • Title
1

Jonsered 532178385

THROTTLE CABLE
(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0

2

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

3

Jonsered TBD

No Description Available

$

$

Not available

4

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

5

Jonsered 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

6

Jonsered 532159955

TUBE MANIFOLD LH
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

8

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

10

Jonsered 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

13

Jonsered 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

14

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

17

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

23

Jonsered 532169837

SHEILD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 532191596

CONTROL CHOKE

$40.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

31

Jonsered 532407551

No Description Available

$

$

Not available

32

Jonsered 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

37

Jonsered 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

44

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

45

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

46

$6.49

$

Usually ships in 3-10 days

0

72

Jonsered 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

119

Jonsered 532199768

No Description Available
(Superseded to 583254301)

$21.99

$

Usually ships in 3-10 days

0

120

Jonsered 532199767

No Description Available
(Superseded to 583254201)

$36.99

$

Usually ships in 3-10 days

0

121

$4.99

$

In Stock, only 3 left!

0

122

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

123

Jonsered 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

132

Jonsered 532420757

No Description Available

$

$

Not available

133

Jonsered 532420756

No Description Available

$

$

Not available

134

Jonsered 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

135

Jonsered 532423063

No Description Available
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days

0
