LT 2223 CMA2 (960610200-02) - Jonsered Lawn Tractor (2007-09) STEERING Parts Diagram

Lawn Tractor

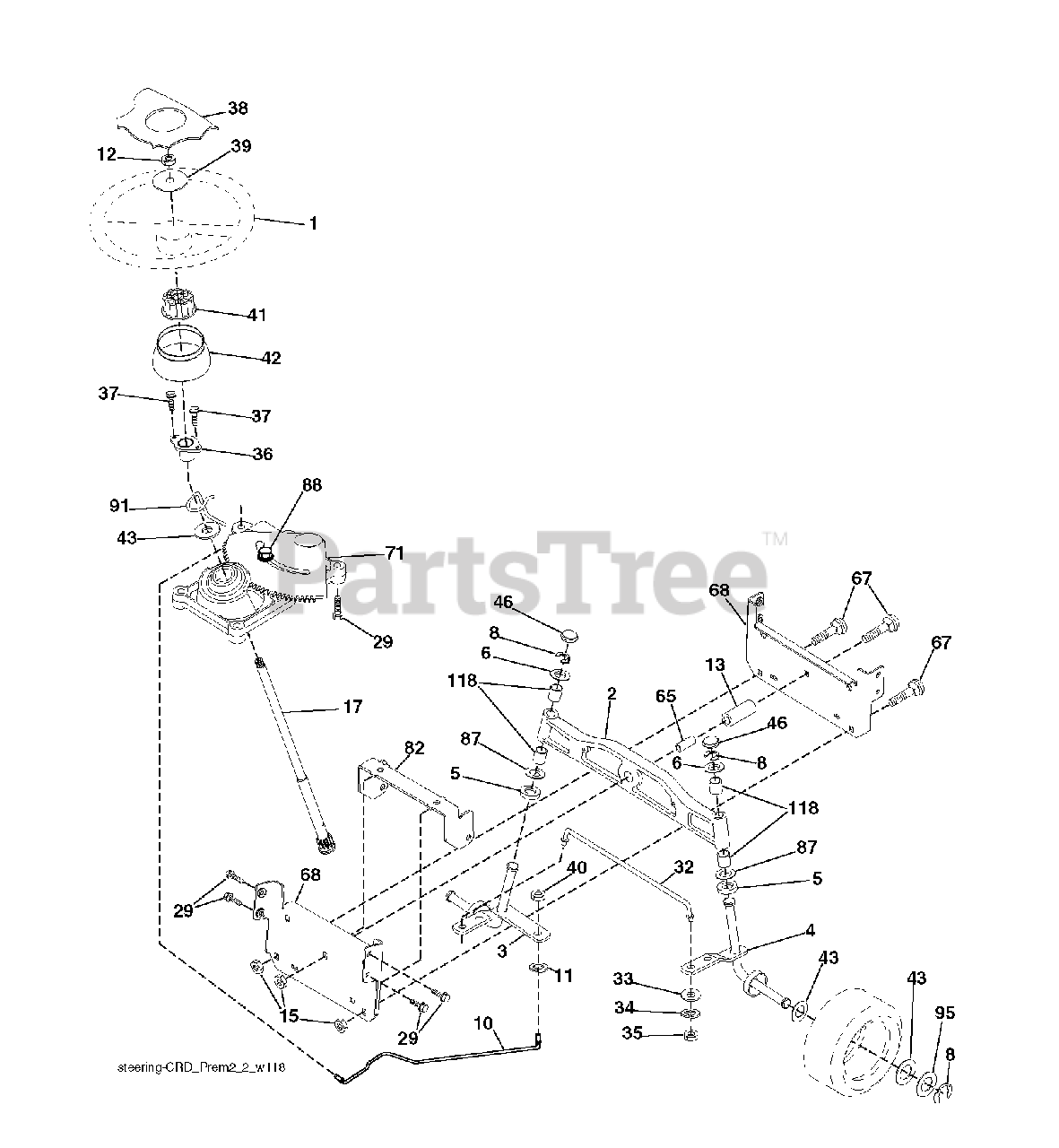

STEERING Parts Diagram

  • Title
1

Jonsered 532194637

WHEEL.STEERING.PREM.2.BLK
(Superseded to 532186094)

$

$

Not available

2

Jonsered 532184706

AXLE ASSY FRONT
(Superseded to 532193542)

$169.99

$

Usually ships in 3-10 days

0

3

Jonsered 532169840

SPINDLE.ASM.LH.15"TIRES
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Jonsered 532169839

SPINDLE.ASM.RH.15"TIRES
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Jonsered 532124931

No Description Available
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

$4.99

$

In Stock, Qty 20+

0

8

Jonsered 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

10

Jonsered 532175121

DRAGLINK.15".TIRES.2001

$68.99

$

In Stock, only 1 left!

0

11

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

12

Jonsered 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

13

Jonsered 532136518

TUBE, PIVOT AXLE

$9.99

$

In Stock, only 1 left!

0

15

Jonsered 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 532177883

SHAFT ASM STRG

$120.99

$

Usually ships in 3-10 days

0

29

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

32

Jonsered 532171888

No Description Available

$68.99

$

In Stock, only 1 left!

0

33

Jonsered 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

34

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

35

Jonsered 873540500

NUT, CROWNLOCK

$7.49

$

Usually ships in 3-10 days

0

36

Jonsered 532155105

BUSHING, STRG. BLK
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

$7.49

$

In Stock, only 2 left!

0

38

Jonsered 532194603

INSERT.CAP.STRG.WH.BLACK

$53.99

$

Usually ships in 3-10 days

0

39

Jonsered 819183812

WASHER 9/16"ID, 2 3/8"OD

$9.49

$

Usually ships in 3-10 days

0

40

Jonsered 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

41

Jonsered 532186737

ADAPTER, WHEEL STNG..
(Superseded to 532437747)

$9.49

$

In Stock, Qty 8

0

42

Jonsered 532177149

No Description Available

$36.99

$

Usually ships in 3-10 days

0

43

$3.49

$

Usually ships in 3-10 days

0

46

Jonsered 532121232

CAP.SPINDLE

$4.99

$

In Stock, Qty 9

0

65

Jonsered 532160367

SPACER BRACE AXLE
(Superseded to 532414736)

$6.99

$

In Stock, Qty 5

0

67

Jonsered 872110618

BOLT CARRIAGE

$6.49

$

In Stock, only 2 left!

0

68

Jonsered 532169827

BRACE.AXLE.15"TIRES

$21.99

$

Usually ships in 3-10 days

0

71

Jonsered 532175146

STEERING ASM

$182.99

$

In Stock, only 3 left!

0

82

Jonsered 532199978

BRACKET.SUSP.CHASSIS.FRONT.15

$15.99

$

Usually ships in 3-10 days

0

87

Jonsered 532173966

WASHER, FLAT .781 X 1 1/2"

$7.49

$

Usually ships in 3-10 days

0

88

Jonsered 532175118

BOLT, SHOULDER 7/16-20

$6.49

$

Usually ships in 3-10 days

0

91

Jonsered 532175553

CLIP.STEERING

$13.99

$

In Stock, only 1 left!

0

95

Jonsered 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

118

Jonsered 532406013

BUSHING, AXLE CAST

$5.99

$

In Stock, Qty 12

0
