LT 2218 CMA2 (960610266-01) - Jonsered Lawn Tractor (2010-08) MOWER LIFT / DECK LIFT Parts Diagram

Lawn Tractor

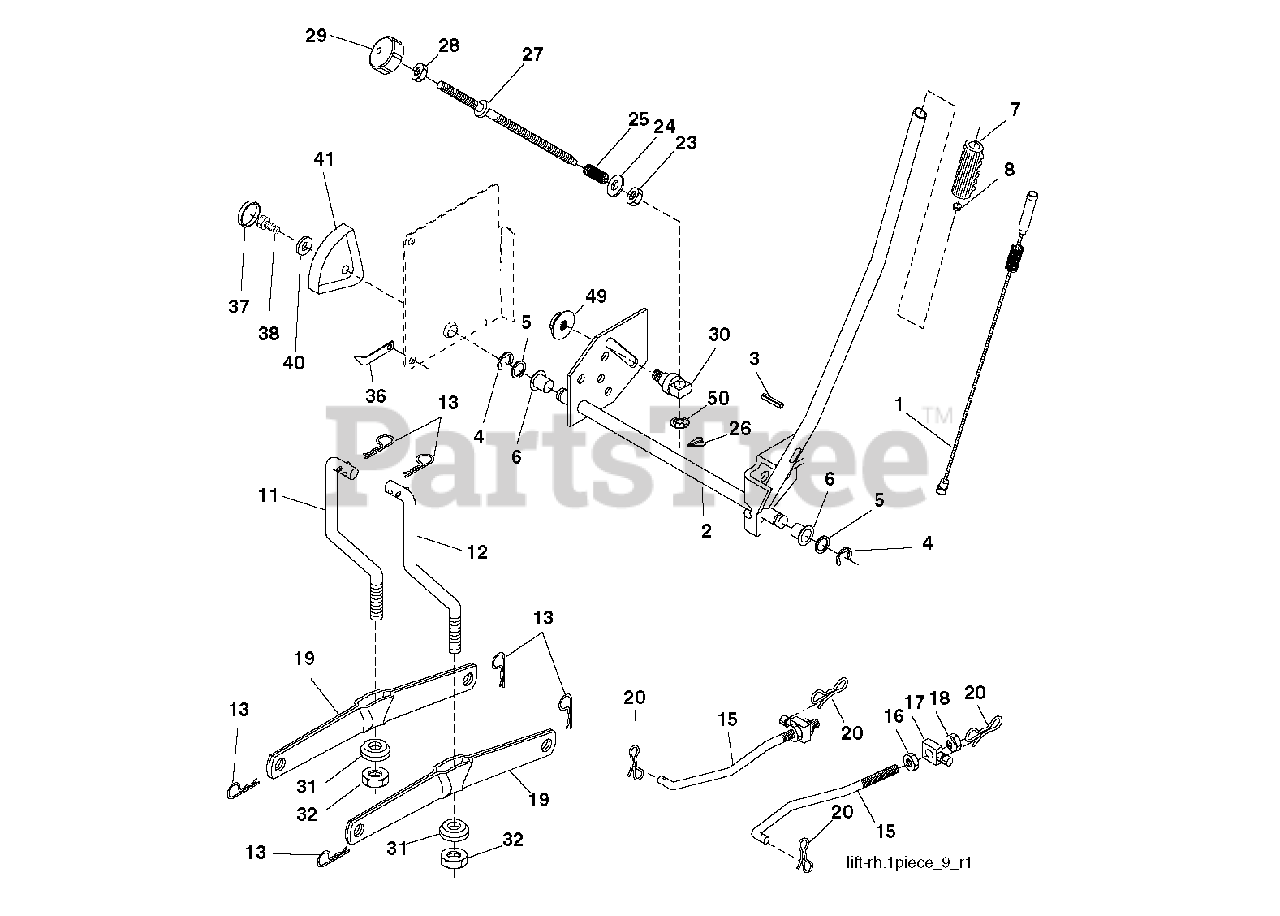

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
1

Jonsered 532405007

No Description Available

$

$

Not available

2

Jonsered 532198070

No Description Available
(Superseded to 585906501)

$56.99

$

Usually ships in 3-10 days

0

3

Jonsered 532188822

No Description Available
(Superseded to 583172901)

$7.49

$

In Stock, only 1 left!

0

4

Jonsered 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 2 left!

0

6

Jonsered 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

7

Jonsered 532125631

GRIP HANDLE

$7.99

$

In Stock, only 1 left!

0

8

Jonsered 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

11

Jonsered 532165829

LINK
(Superseded to 532165828)

$26.99

$

Usually ships in 3-10 days

0

12

Jonsered 532165831

LINK
(Superseded to 532165830)

$

$

Not available

13

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

15

Jonsered 532173288

LINK.SUSPENSION.FRONT

$13.99

$

Usually ships in 3-10 days

0

16

Jonsered 873350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

$

$

Not available

18

Jonsered 873800800

NUT
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Jonsered 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

20

Jonsered 532194209

PIN.COTTER.7/16.BOW TI

$3.99

$

In Stock, Qty 10

0

$

$

Not available

24

$6.49

$

In Stock, Qty 5

0

25

Jonsered 532164024

No Description Available

$4.99

$

Usually ships in 3-10 days

0

26

Jonsered 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 2 left!

0

27

Jonsered 532164543

No Description Available

$8.99

$

Usually ships in 3-10 days

0

28

Jonsered 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Jonsered 532138057

KNOB INF 3/8-16

$8.99

$

Usually ships in 3-10 days

0

30

$12.99

$

Usually ships in 3-10 days

0

31

Jonsered 532169865

BEARING.PIVOT.LIFT

$

$

Not available

32

Jonsered 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

36

Jonsered 532155097

POINTER, HEIGHT INDICATOR

$

$

Not available

37

Jonsered 532123935

PLUG,HOLE

$5.99

$

Usually ships in 3-10 days

0

38

Jonsered 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

40

$6.49

$

Usually ships in 3-10 days

0

41

Jonsered 532123934

HEIGHT INDICATOR

$

$

Not available

49

Jonsered 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

50

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0
