LT 2218 A2 (960410059-00) - Jonsered Lawn Tractor (2007-06) ENGINE Parts Diagram

Lawn Tractor

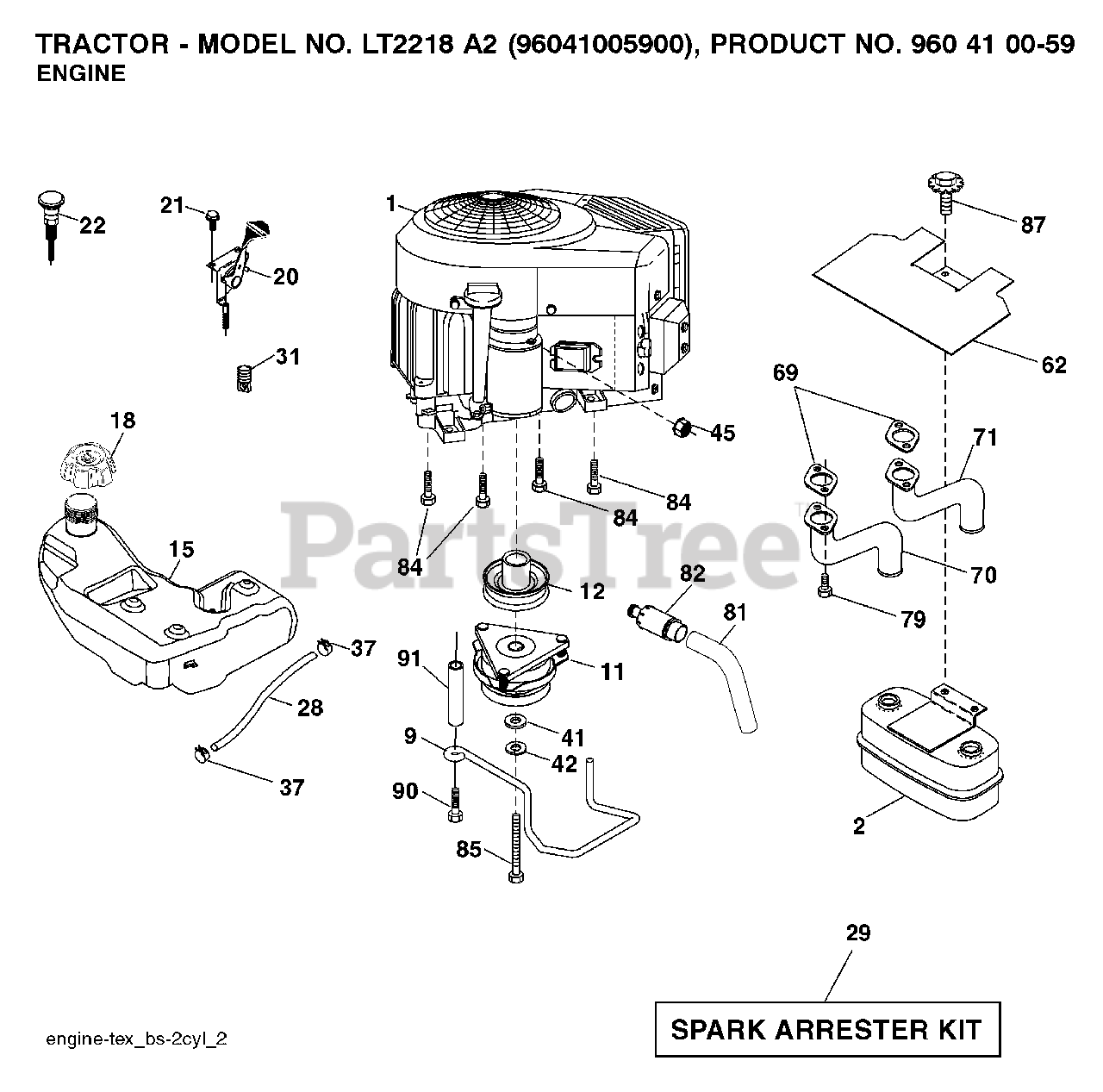

ENGINE Parts Diagram

  • Title
2

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Jonsered 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$11.99

$

In Stock, Qty 5

0

11

Jonsered 532180505

CLUTCH
(Superseded to 583389701)

$399.99

$

Usually ships in 3-10 days

0

12

Jonsered 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

15

Jonsered 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

18

Jonsered 532195951

CAP.ASM.FUEL.TANK.3"BL
(Superseded to 584248701)

$17.99

$

Usually ships in 3-10 days

0

20

Jonsered 532178385

THROTTLE CABLE
(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0

21

Jonsered 532191611

SCREW
(Superseded to 532416358)

$3.99

$

In Stock, Qty 15

0

22

Jonsered 532191596

CONTROL CHOKE

$40.99

$

Usually ships in 3-10 days

0

28

Jonsered 532142158

No Description Available
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

31

Jonsered 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

41

$8.99

$

In Stock, only 3 left!

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Jonsered 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

69

Jonsered 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Jonsered 532159955

TUBE MANIFOLD LH
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

71

Jonsered 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

79

Jonsered 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

82

Jonsered 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

84

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Jonsered 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Jonsered 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

90

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

91

Jonsered 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0
