LT 2218 A (960410105-02) - Jonsered Lawn Tractor (2010-03) MOWER LIFT / DECK LIFT Parts Diagram

Lawn Tractor

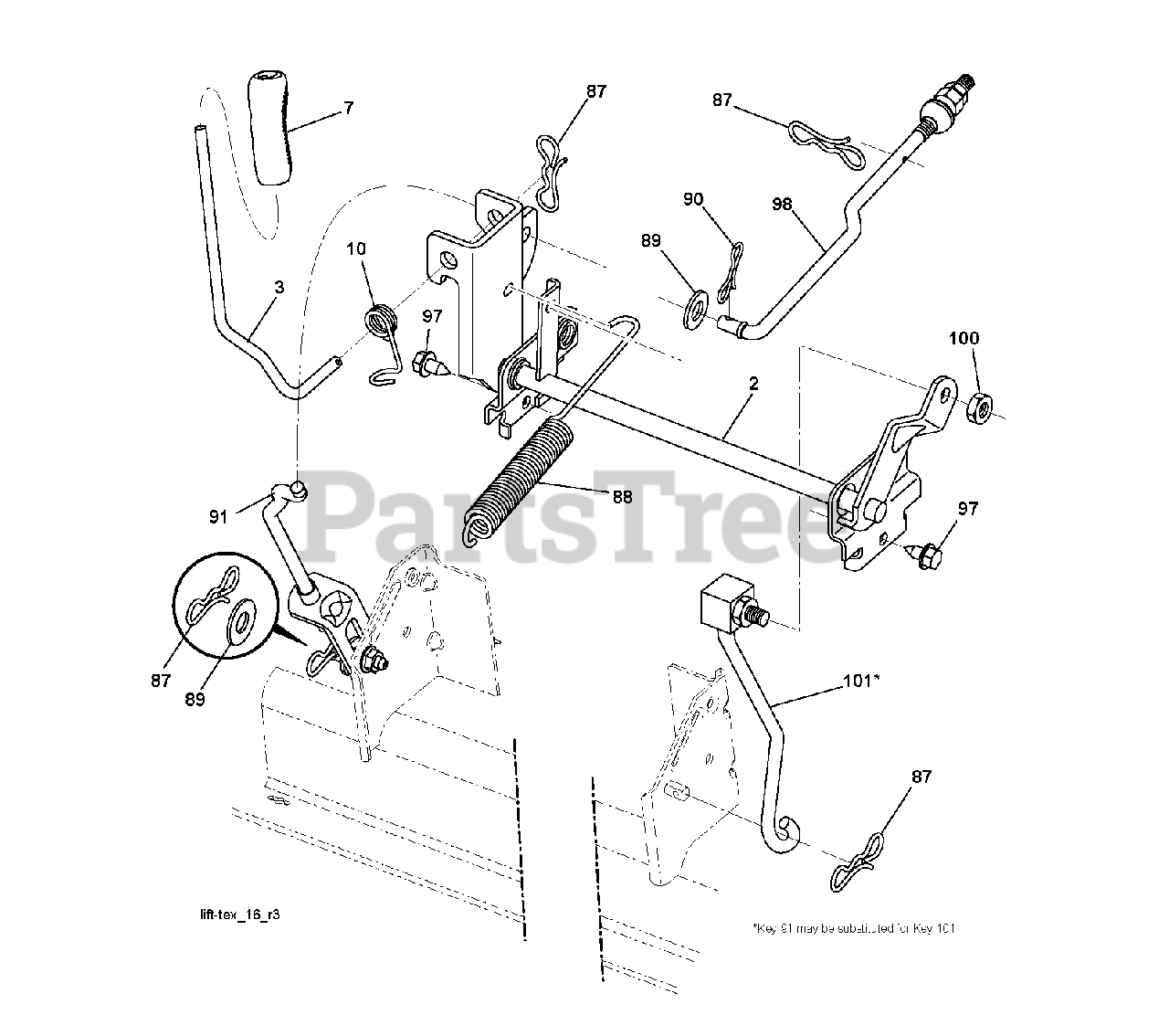

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
2

Jonsered 532422027

SHAFT.ASM.CROSS.LIFT

$80.99

$

Usually ships in 3-10 days

0

3

Jonsered 532195231

LEVER.LIFT.HANDLE.LT
(Superseded to 594018001)

$20.99

$

In Stock, only 1 left!

0

7

Jonsered 532411555

GRIP.HANDLE.LIFT.PVC.BLACK

$9.49

$

In Stock, only 2 left!

0

10

Jonsered 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

87

Jonsered 532194209

PIN.COTTER.7/16.BOW TI

$3.99

$

In Stock, Qty 10

0

88

Jonsered 532410710

SPRING.LIFT.ASSIST

$11.99

$

In Stock, Qty 6

0

89

Jonsered 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 11

0

90

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

91

Jonsered 532195181

LINK.ASM.LIFT.REAR
(Superseded to 589464807)

$18.99

$

In Stock, only 1 left!

0

97

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

98

Jonsered 532195270

LINK.ASM.SUSP.FRONT.MW
(Superseded to 581506903)

$11.99

$

In Stock, only 3 left!

0

100

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

101

Jonsered 532407003

LINK.ASM.LIFT.FIXE.38/42/46"

$18.99

$

In Stock, only 1 left!

0
