LT 2218 A (960410035-00) - Jonsered Lawn Tractor (2007-03) SEAT Parts Diagram

Lawn Tractor

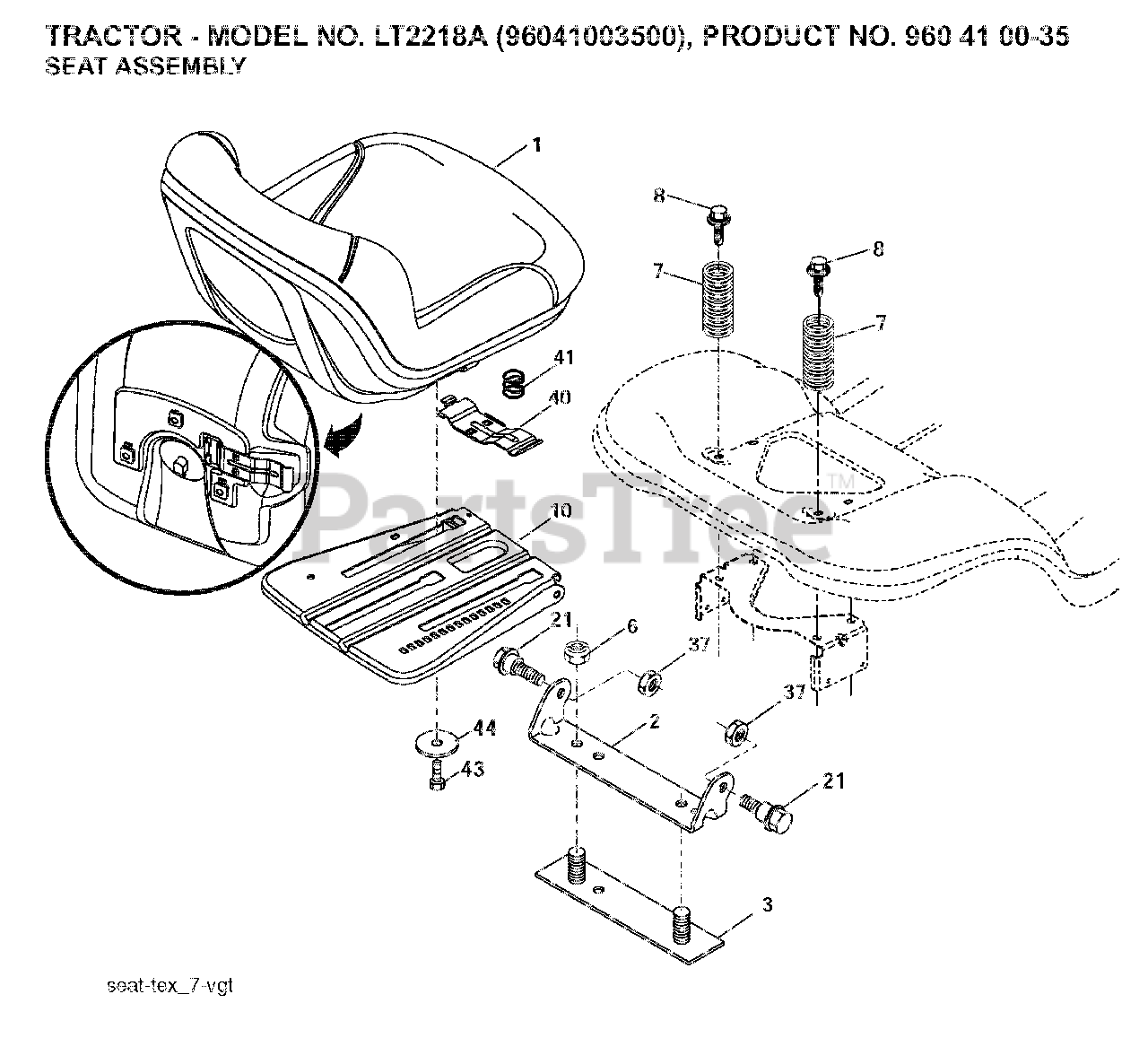

SEAT Parts Diagram

  • Title
1

Jonsered 532406625

SEAT.TG150.BLK.NLOGO.

$265.99

$

Usually ships in 3-10 days

0

2

Jonsered 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

$6.99

$

Usually ships in 3-10 days

0

6

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Jonsered 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, only 4 left!

0

10

Jonsered 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

21

Jonsered 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

37

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

40

Jonsered 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK
(Superseded to 595088102)

$5.99

$

In Stock, Qty 7

0

41

Jonsered 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

44

Jonsered 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

$

$

Not available
