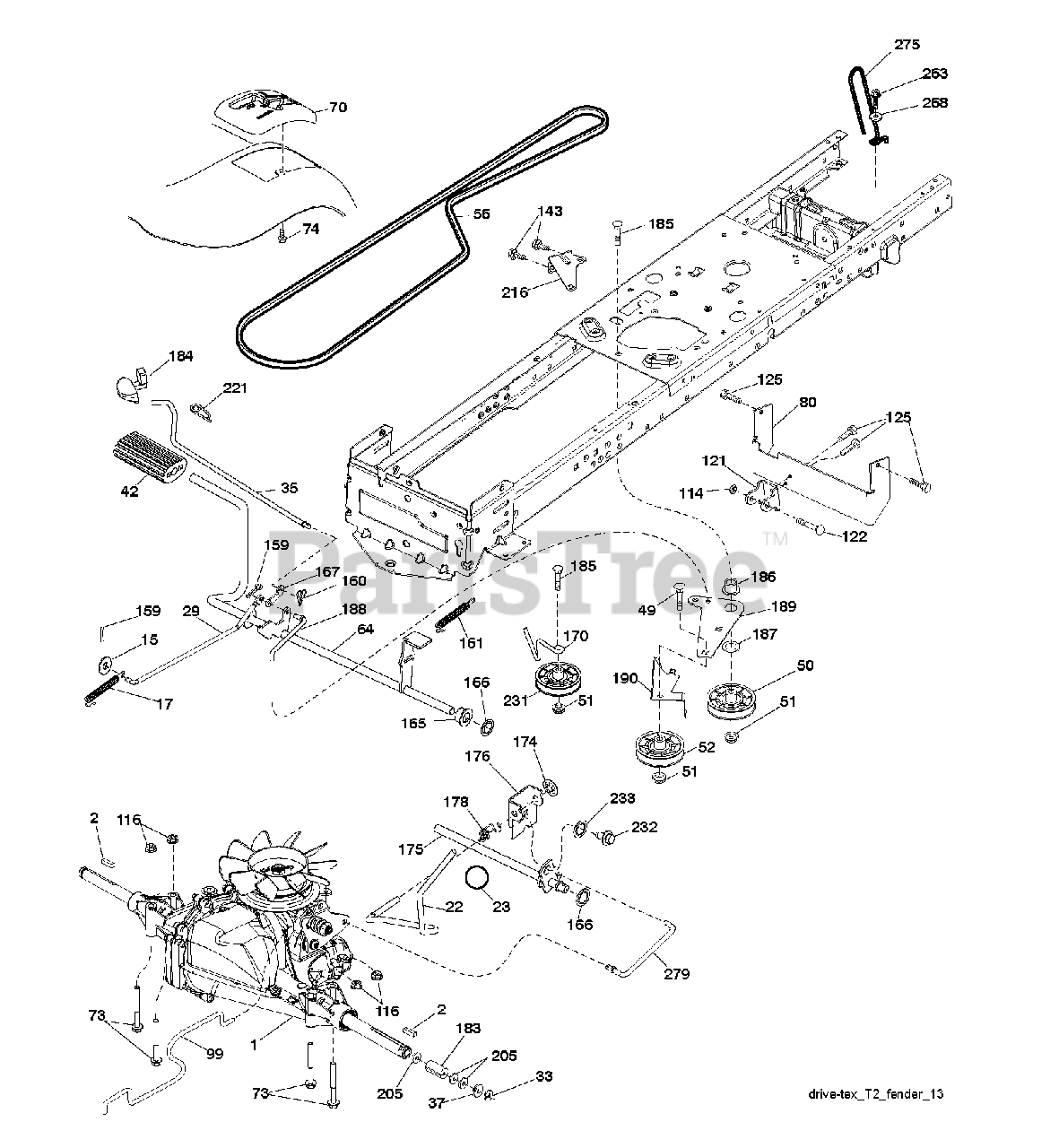

LT 2217 A (960410104-00) - Jonsered Lawn Tractor (2009-01) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
1

Jonsered 000000000

No Description Available

Note: Transaxle Hydro Gear T2-AABC-1XIA-1GX1

$

$

Not available

2

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

15

$4.99

$

In Stock, Qty 5

0

17

Jonsered 532197296

SPRING.BRAKE.HG3000/3500

$6.99

$

In Stock, only 1 left!

0

22

Jonsered 532197660

ROD.SHIFT.FENDER.TLT.2006

$182.99

$

Usually ships in 3-10 days

0

23

Jonsered 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

29

Jonsered 532408391

ROD.BRAKE.T2.TEX
(Superseded to 532423239)

$45.99

$

In Stock, only 2 left!

0

33

Jonsered 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Jonsered 532401031

ROD, BRAKE, PARK

$18.99

$

Usually ships in 3-10 days

0

37

$3.49

$

Usually ships in 3-10 days

0

42

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Jonsered 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Jonsered 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Jonsered 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

$39.99

$

In Stock, Qty 8

0

64

Jonsered 532196200

SHAFT.ASM.PEDAL.BRAKE.

$56.99

$

Usually ships in 3-10 days

0

70

Jonsered 532411329

CONSOLE.SHIFT.STL.HYD.BLACK

$17.99

$

Usually ships in 3-10 days

0

73

Jonsered 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

74

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Jonsered 532408393

STRAP.TORQUE.FS.T2
(Superseded to 581550701)

$26.99

$

Usually ships in 3-10 days

0

99

Jonsered 532408418

ROD.ASM.BYPASS.SPRING.T2.FS

$9.99

$

Usually ships in 3-10 days

0

114

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

116

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

121

Jonsered 532175611

BRACKET STRAP TORQUE

$7.99

$

Usually ships in 3-10 days

0

122

Jonsered 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

125

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

143

$6.49

$

Usually ships in 3-10 days

0

159

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Jonsered 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Jonsered 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

165

Jonsered 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

166

Jonsered 532197290

NUT.PUSH.625.2006
(Superseded to 532429164)

$6.49

$

In Stock, only 2 left!

0

167

Jonsered 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Jonsered 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

In Stock, only 1 left!

0

174

Jonsered 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Jonsered 532408539

SHAFT.ASM.SHFT.T2.TLT

$26.99

$

In Stock, only 1 left!

0

176

Jonsered 532196214

ARM.CLEVIS.ROD.SHIFT

$7.99

$

Usually ships in 3-10 days

0

178

Jonsered 532197456

SPRING.SHIFT.GT2006

$6.49

$

Usually ships in 3-10 days

0

183

Jonsered 532156972

SPACER, AXLE PVST

$6.99

$

Usually ships in 3-10 days

0

184

Jonsered 532409747

HANDLE PARKING BRAKE
(Superseded to 532199996)

$66.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 10

0

186

Jonsered 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Jonsered 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Jonsered 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Jonsered 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 2 left!

0

205

$4.99

$

In Stock, Qty 20+

0

216

Jonsered 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.99

$

In Stock, only 1 left!

0

221

Jonsered 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

231

Jonsered 532407287

IDLER.V-GROOVE.1.688.OFFSET

$22.99

$

In Stock, Qty 9

0

232

Jonsered 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Jonsered 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

263

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

268

Jonsered 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

275

Jonsered 532182402

No Description Available
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

279

Jonsered 532408538

LINK SHIFT
(Superseded to 532424155)

$15.99

$

Usually ships in 3-10 days

0
