LT 2216 CMA2 (960610282-00) - Jonsered Lawn Tractor (2010-01) DRIVE Parts Diagram

Lawn Tractor

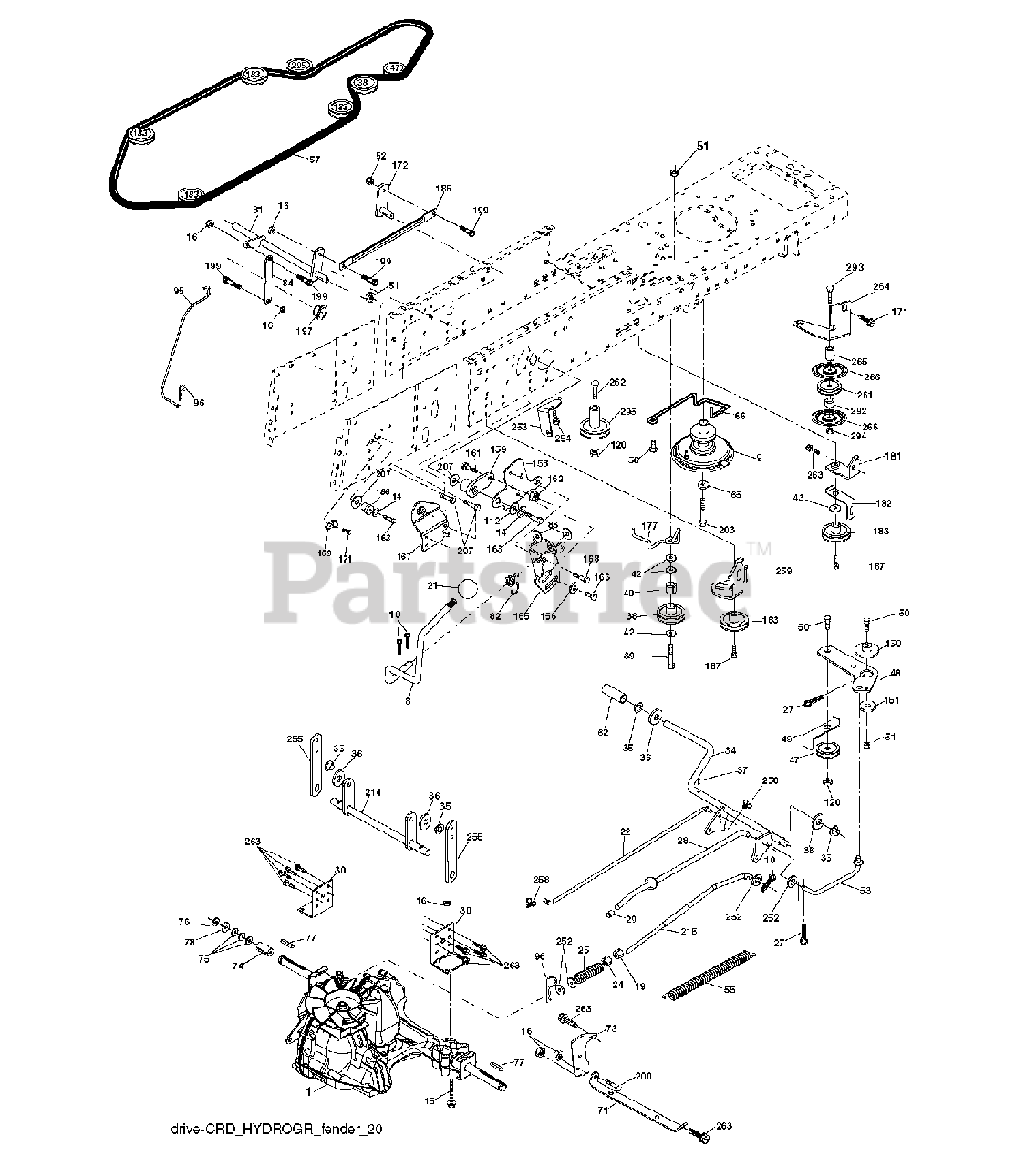

DRIVE Parts Diagram

  • Title
1

Jonsered 000000000

No Description Available

Note: TRANSAXLE HYDRO GEAR 321-0510

$

$

Not available

8

Jonsered 532192706

ROD SHIFT FENDER ADJUST LT
(Superseded to 585139901)

$20.99

$

Usually ships in 3-10 days

0

9

Jonsered 532408579

No Description Available

$

$

Not available

10

Jonsered 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Jonsered 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Jonsered 532130564

PISTOL KNOB

$14.99

$

Usually ships in 3-10 days

0

22

Jonsered 532175607

No Description Available
(Superseded to 583070201)

$27.99

$

Usually ships in 3-10 days

0

24

Jonsered 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Jonsered 532192036

No Description Available
(Superseded to 583201301)

$4.99

$

Usually ships in 3-10 days

0

27

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Jonsered 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

30

Jonsered 532169592

BRKT, TRNSXLE MNT 20"

$6.49

$

Usually ships in 3-10 days

0

34

Jonsered 532175578

SHAFT, FOOT PEDAL

$31.99

$

Usually ships in 3-10 days

0

35

Jonsered 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

36

Jonsered 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532124963

DRIVE PIN
(Superseded to 532002882)

$

$

Not available

38

Jonsered 532165936

PULLEY.FLAT

$31.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

40

$6.49

$

Usually ships in 3-10 days

0

42

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

43

$6.49

$

Usually ships in 3-10 days

0

47

Jonsered 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

48

Jonsered 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

49

Jonsered 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

51

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Jonsered 532199652

LINK.CLUTCH.7.66.2005

$13.99

$

Usually ships in 3-10 days

0

55

Jonsered 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

56

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

57

Jonsered 532170140

No Description Available
(Superseded to 583036701)

$85.99

$

Usually ships in 3-10 days

0

62

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

65

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Jonsered 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

71

Jonsered 532169183

STRAP TORQUE LH HYDRO

$7.49

$

Usually ships in 3-10 days

0

73

Jonsered 532169182

STRAP TORQUE RH HYDRO

$17.99

$

In Stock, only 1 left!

0

74

Jonsered 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

75

$3.49

$

Usually ships in 3-10 days

0

76

Jonsered 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

77

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

78

$4.99

$

In Stock, Qty 20+

0

81

Jonsered 532170006

SHAFT ASSY
(Superseded to 170006)

$12.99

$

Usually ships in 3-10 days

0

82

Jonsered 532165711

SHIFT SPRING

$7.49

$

In Stock, only 1 left!

0

83

Jonsered 819171216

WASHER
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

84

Jonsered 532170007

No Description Available
(Superseded to 583035901)

$6.99

$

Usually ships in 3-10 days

0

95

Jonsered 532170015

No Description Available
(Superseded to 583036101)

$21.99

$

Usually ships in 3-10 days

0

96

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

112

Jonsered 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

120

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

150

Jonsered 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

151

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Jonsered 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

158

Jonsered 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Jonsered 532183900

HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Jonsered 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

$6.49

$

Usually ships in 3-10 days

0

165

Jonsered 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

$4.99

$

Usually ships in 3-10 days

0

167

Jonsered 532165588

BRACKET
(Superseded to 574988801)

$

$

Not available

168

Jonsered 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

169

Jonsered 532165580

PLATE.FASTENING.CROSS.SHAFT

$6.99

$

Usually ships in 3-10 days

0

171

$6.49

$

Usually ships in 3-10 days

0

172

Jonsered 532170271

No Description Available
(Superseded to 583037801)

$24.99

$

Usually ships in 3-10 days

0

177

$7.99

$

Usually ships in 3-10 days

0

181

Jonsered 532180211

No Description Available
(Superseded to 583099101)

$5.99

$

Usually ships in 3-10 days

0

182

Jonsered 532182682

No Description Available
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

183

Jonsered 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

185

Jonsered 532170008

No Description Available
(Superseded to 583036001)

$13.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

187

Jonsered 817580520

BOLT.5/16-18X1.25

$4.99

$

In Stock, only 3 left!

0

197

Jonsered 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

199

Jonsered 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

200

Jonsered 872140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, only 4 left!

0

203

Jonsered 871170780

No Description Available
(Superseded to 71170780)

$9.49

$

In Stock, only 1 left!

0

207

Jonsered 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

214

Jonsered 532175609

No Description Available
(Superseded to 583070401)

$11.99

$

Usually ships in 3-10 days

0

215

Jonsered 532175652

No Description Available

$

$

Not available

252

Jonsered 819131616

No Description Available
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

253

Jonsered 532175028

No Description Available

$

$

Not available

254

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

255

Jonsered 532175608

No Description Available
(Superseded to 583070301)

$2.99

$

Usually ships in 3-10 days

0

258

Jonsered 532178062

CLIP RETAINER

$4.99

$

In Stock, only 1 left!

0

259

Jonsered 532180212

No Description Available
(Superseded to 583099201)

$

$

Not available

261

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

$4.99

$

In Stock, Qty 10

0

263

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

264

Jonsered 532431174

No Description Available
(Superseded to 583467201)

$13.99

$

Usually ships in 3-10 days

0

265

Jonsered 532404607

No Description Available

$

$

Not available

266

Jonsered 532182061

No Description Available
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

292

Jonsered 532400271

No Description Available
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

293

Jonsered 872140628

No Description Available

$4.99

$

In Stock, only 2 left!

0

294

Jonsered 532197033

NUT, HEX 3/8-16

$4.99

$

Usually ships in 3-10 days

0

295

Jonsered 532179114

PULLEY IDLER COMPOSITE

$31.99

$

Usually ships in 3-10 days

0

297

Jonsered 817490610

SCREW LT.3/8-46X5/8

$4.99

$

Usually ships in 3-10 days

0
