LT 2216 CM (960610271-01) - Jonsered Lawn Tractor (2010-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

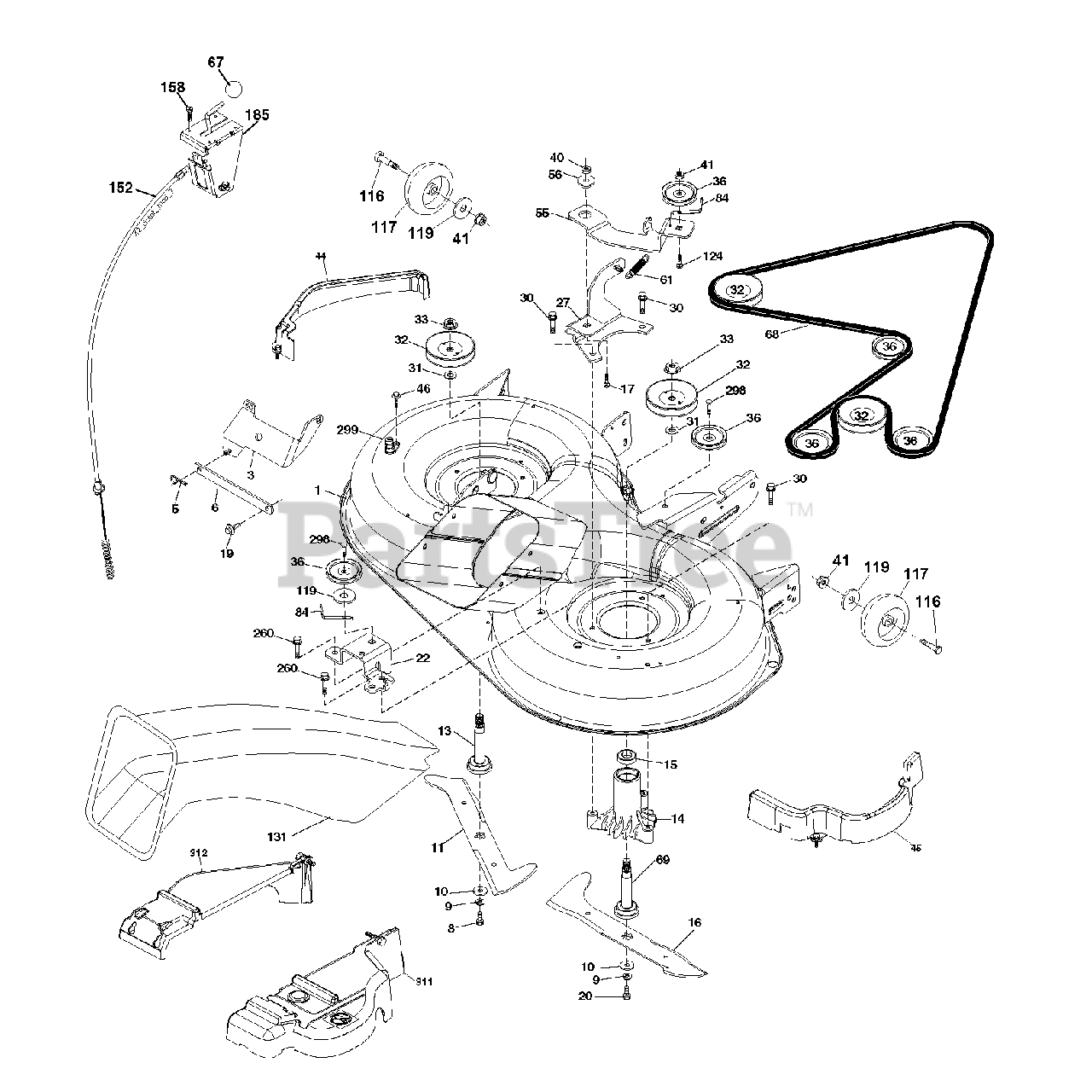

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532429121

No Description Available
(Superseded to 583486301)

$399.99

$

Usually ships in 3-10 days

0

3

Jonsered 532431864

BRACKET.ASM.BAR.SWAY.CHASS

$24.99

$

Usually ships in 3-10 days

0

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532165557

BAR SWAY
(Superseded to 165557)

$

$

Not available

8

Jonsered 532181712

No Description Available
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

9

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Jonsered 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

11

Jonsered 532427984

BLADE.3N1.LH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

13

Jonsered 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Jonsered 532128774

HSG MANDREL

$34.99

$

Usually ships in 3-10 days

0

15

$13.99

$

In Stock, Qty 14

0

16

Jonsered 532427985

BLADE.3N1.RH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

17

Jonsered 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Jonsered 532181713

No Description Available
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

22

Jonsered 532431169

BRACKET.SUPT.IDLER.REAR.RH

$

$

Not available

27

Jonsered 532427981

BRACKET.ASM.SUSP.REAR.RH.

$

$

Not available

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

32

Jonsered 532153532

PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, Qty 5

0

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

36

Jonsered 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

40

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

41

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Jonsered 532430210

No Description Available
(Superseded to 583456401)

$15.99

$

Usually ships in 3-10 days

0

45

Jonsered 532430209

No Description Available
(Superseded to 583456301)

$15.99

$

Usually ships in 3-10 days

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

55

Jonsered 532199498

No Description Available
(Superseded to 583252901)

$30.99

$

Usually ships in 3-10 days

0

56

Jonsered 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 2 left!

0

61

Jonsered 532199486

No Description Available
(Superseded to 583252601)

$10.99

$

Usually ships in 3-10 days

0

67

Jonsered 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

68

Jonsered 532429532

BELT.DRIVE.CRD.97.2010
(Superseded to 584454401)

$121.99

$

Usually ships in 3-10 days

0

69

Jonsered 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$68.99

$

Usually ships in 3-10 days

0

84

Jonsered 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

116

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Jonsered 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

119

$1.99

$

Usually ships in 3-10 days

0

124

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

131

Jonsered 532165661

CHUTE BAGGER

$93.99

$

Usually ships in 3-10 days

0

152

Jonsered 532176074

No Description Available

$

$

Not available

158

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

185

Jonsered 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

In Stock, only 1 left!

0

260

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

298

Jonsered 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

299

Jonsered 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

311

Jonsered 532430774

No Description Available

$

$

Not available

312

Jonsered 532430775

No Description Available

$

$

Not available

--

Jonsered 532181857

No Description Available
(Superseded to 583118201)

Note: NOT SHOWN

$91.99

$

Usually ships in 3-10 days

0

--

Jonsered 532181858

No Description Available
(Superseded to 583118301)

Note: NOT SHOWN

$96.99

$

Usually ships in 3-10 days

0

--

Jonsered 532431007

No Description Available

Note: NOT SHOWN

$

$

Not available
