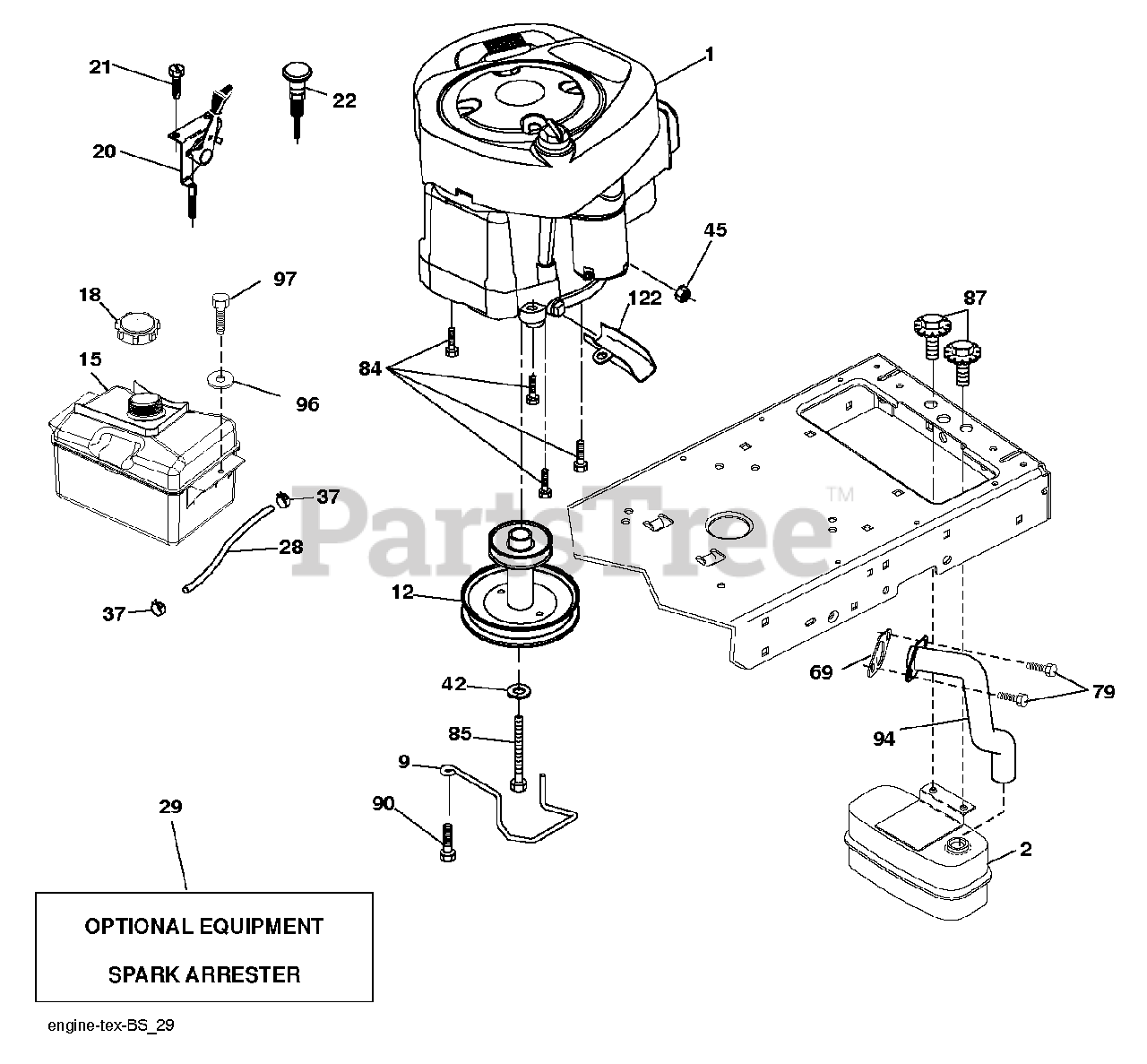

LT 2216 (960410112-03) - Jonsered Lawn Tractor (2011-02) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

1

Jonsered 000000000

No Description Available

Note: Engine Briggs Model No 31E677-2438-B1 (438585) (order parts from engine manufacturer)

$

$

Not available

2

Jonsered 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$45.99

$

In Stock, only 3 left!

0

9

Jonsered 532194319

KEEPER.BELT.ENGINE.3.25

$13.99

$

In Stock, only 1 left!

0

12

Jonsered 532401985

PULLEY ENGINE
(Superseded to 586729001)

$40.99

$

Usually ships in 3-10 days

0

15

Jonsered 532407545

TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, only 1 left!

0

18

Jonsered 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

20

Jonsered 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

Usually ships in 3-10 days

0

21

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

22

Jonsered 532194981

No Description Available
(Superseded to 532194977)

$

$

Not available

28

Jonsered 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

37

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

69

Jonsered 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Jonsered 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 8

0

84

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Jonsered 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, only 4 left!

0

90

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

94

Jonsered 532405450

EXHAUST.TUBE.B&S.
(Superseded to 581880901)

$31.99

$

In Stock, only 3 left!

0

96

Jonsered 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

97

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

122

Jonsered 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0
