LT 2216 (960410112-00) - Jonsered Lawn Tractor (2009-01) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

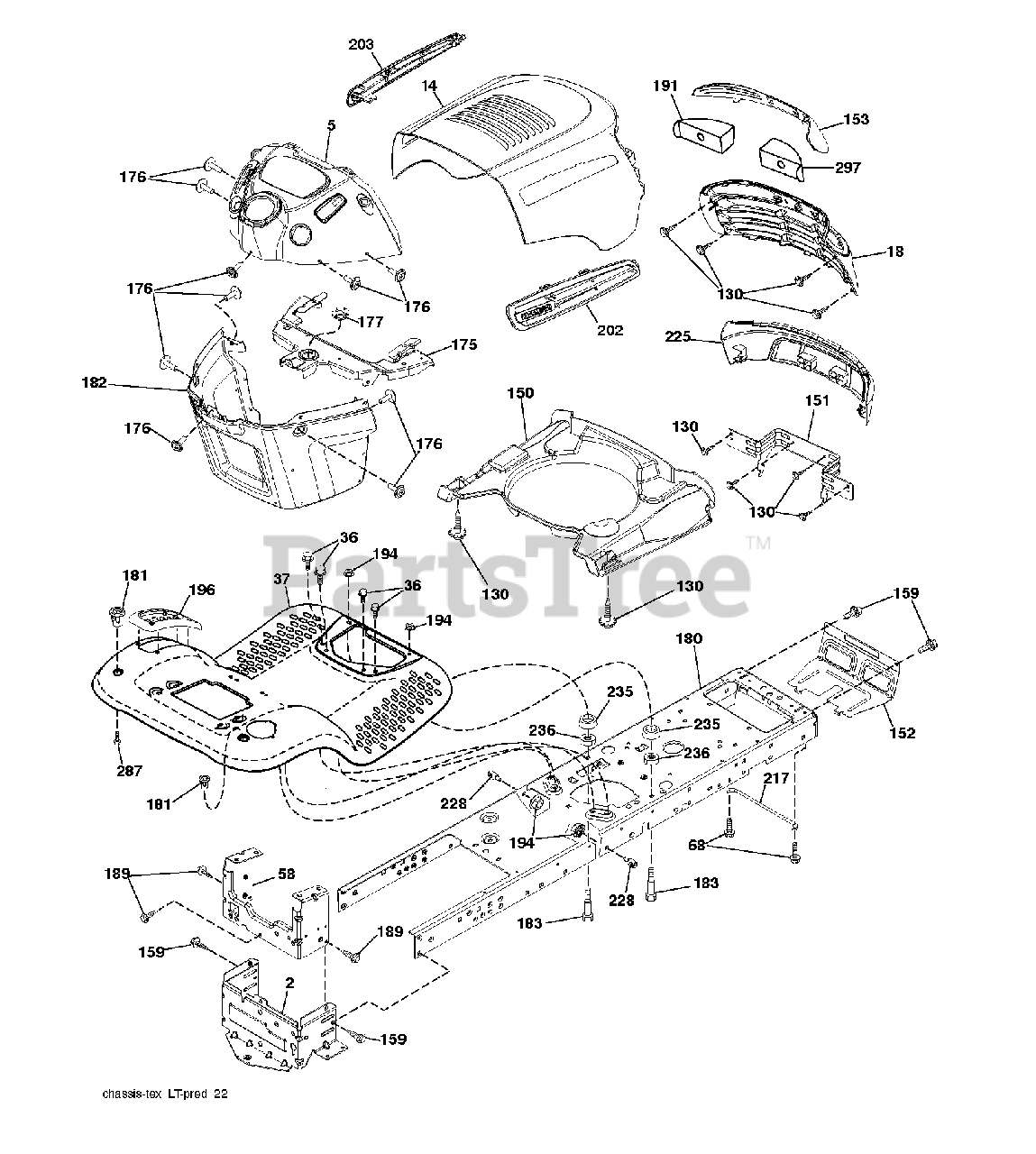

CHASSIS ENCLOSURES Parts Diagram

  • Title
2

Jonsered 532412282

DRAWBAR.LOWER.2PC.18/22

$53.99

$

Usually ships in 3-10 days

0

5

Jonsered 532409597

No Description Available
(Superseded to 583745601)

$54.99

$

Usually ships in 3-10 days

0

14

Jonsered 532424332

No Description Available
(Superseded to 532441287)

$102.99

$

Usually ships in 3-10 days

0

18

Jonsered 532423229

No Description Available

$

$

Not available

36

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532424335

No Description Available
(Superseded to 532442044)

$

$

Not available

58

Jonsered 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

68

$6.49

$

Usually ships in 3-10 days

0

150

Jonsered 532400267

No Description Available

$34.99

$

Usually ships in 3-10 days

0

151

Jonsered 532187568

BRACKET.PIVOT.ALPHA.LT

$28.99

$

Usually ships in 3-10 days

0

152

Jonsered 532194329

SHIELD.BROWNING/DEBRIS

$20.99

$

Usually ships in 3-10 days

0

153

Jonsered 532409740

No Description Available
(Superseded to 532444264)

$22.99

$

Usually ships in 3-10 days

0

159

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

175

Jonsered 532199472

CROSSMEMBER

$28.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Jonsered 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

Jonsered 532194260

CHASSIS.STAMPING.LT/GT
(Superseded to 532445559)

$265.99

$

Usually ships in 3-10 days

0

181

Jonsered 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Jonsered 532407176

DASH.LWER.PREDATOR/HUSQ.LT

$79.99

$

Usually ships in 3-10 days

0

183

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

191

Jonsered 532401827

REFLECTOR.INSERT.PRED.LH.LT

$28.99

$

Usually ships in 3-10 days

0

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

196

Jonsered 532414579

CONSOLE.ASM.DECKLFT.BL/RBT.TLT

$37.99

$

In Stock, only 1 left!

0

202

Jonsered 532424322

No Description Available

$

$

Not available

203

Jonsered 532424323

No Description Available

$15.99

$

Usually ships in 3-10 days

0

217

Jonsered 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

222

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

225

Jonsered 532409585

No Description Available
(Superseded to 584465401)

$48.99

$

Usually ships in 3-10 days

0

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

287

$6.49

$

Usually ships in 3-10 days

0

297

Jonsered 532416502

INSERT.REFLECT.PREDATOR.LT.RH

$28.99

$

Usually ships in 3-10 days

0
