LT 2216 (960410056-01) - Jonsered Lawn Tractor (2007-04) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

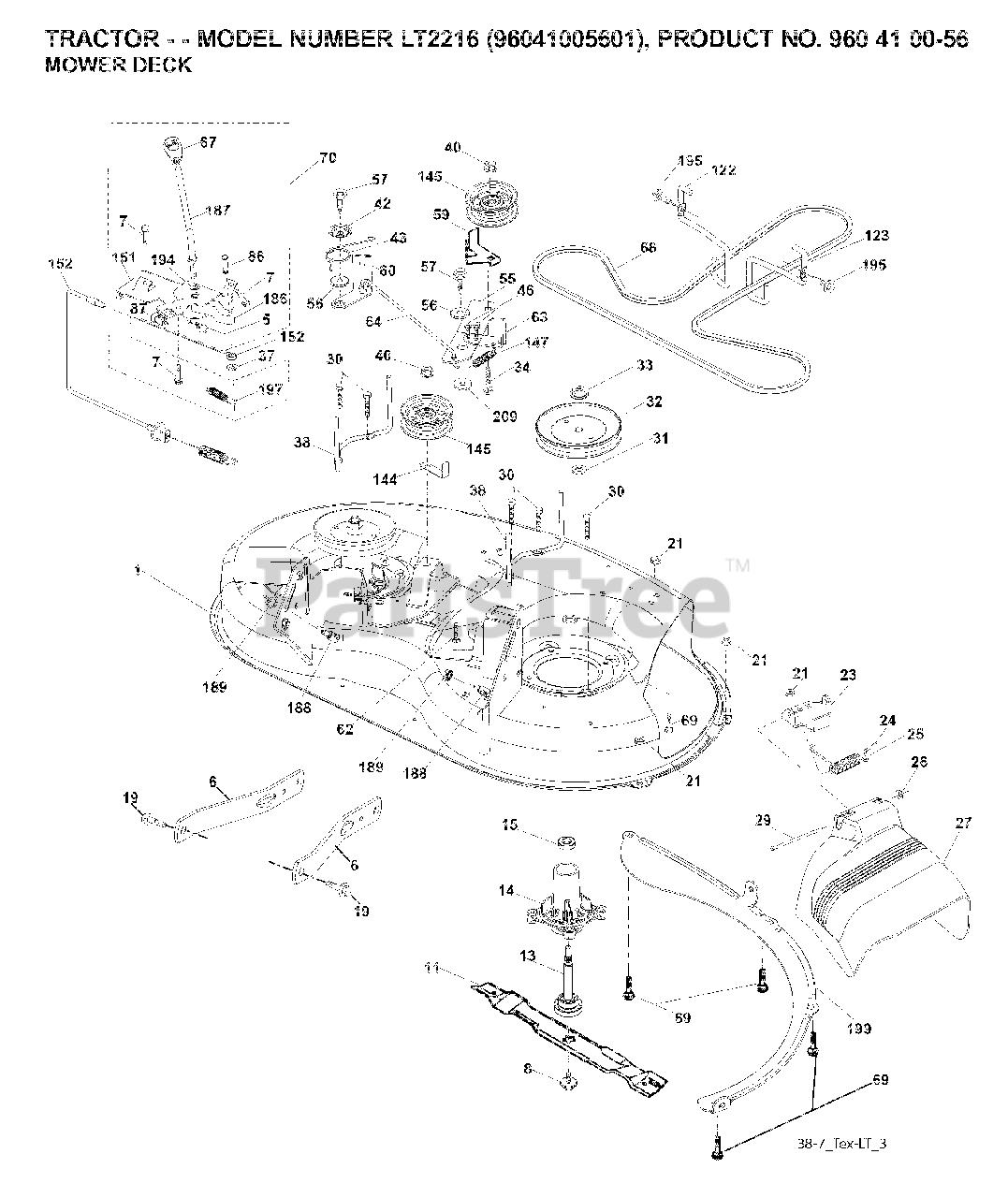

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532194251

No Description Available
(Superseded to 583215501)

$399.99

$

Usually ships in 3-10 days

0

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

7

Jonsered 532191611

SCREW
(Superseded to 532416358)

$3.99

$

In Stock, Qty 15

0

8

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Jonsered 532193957

BLADE 38" PREMIUM
(Superseded to 581116302)

$17.99

$

Usually ships in 3-10 days

0

13

Jonsered 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

14

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

$13.99

$

In Stock, Qty 10

0

19

Jonsered 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 532401472

No Description Available
(Superseded to 584465501)

$30.99

$

Usually ships in 3-10 days

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

32

Jonsered 532199789

PULLEY.MANDREL.5.0.PD.38"

$20.99

$

Usually ships in 3-10 days

0

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

37

$4.99

$

In Stock, Qty 5

0

38

Jonsered 532199541

KEEPER BELT LH MANDREL
(Superseded to 532400140)

$53.99

$

In Stock, only 1 left!

0

40

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Jonsered 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 6

0

43

Jonsered 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 7

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

55

Jonsered 532197249

IDLER.ARM

$

$

Not available

56

Jonsered 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

57

Jonsered 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

59

Jonsered 532141043

GUARD, BELT

$

$

Not available

60

Jonsered 532199471

ARM BRAKE MOWER RH 38"
(Superseded to 532199471)

$17.99

$

In Stock, only 3 left!

0

62

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

63

Jonsered 532199470

ARM BRAKE MOWER RH
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

64

Jonsered 532199790

LINK BRAKE
(Superseded to 532199918)

$24.99

$

Usually ships in 3-10 days

0

67

Jonsered 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

68

$60.99

$

In Stock, only 1 left!

0

69

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Jonsered 532198332

CLUTCH.ASM.MANUAL.LT.TEX

$80.99

$

In Stock, only 1 left!

0

86

Jonsered 532197798

PIN ATTACHMENT CABLE
(Superseded to 532406563)

$

$

Not available

87

Jonsered 532197802

SWITCH.INTRLCK.CLUTCH.

$18.99

$

In Stock, Qty 7

0

122

Jonsered 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, only 4 left!

0

123

Jonsered 532197259

KEEPER BELT RH

$

$

Not available

144

Jonsered 532193414

KEEPER BELT

$6.49

$

In Stock, only 1 left!

0

145

Jonsered 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

147

Jonsered 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

151

Jonsered 532198331

BRACKET.CLUTCH CABLE.TEX
(Superseded to 532198332)

$80.99

$

In Stock, only 1 left!

0

152

Jonsered 532408714

CLUTCH CABLE
(Superseded to 532435111)

$34.99

$

In Stock, only 2 left!

0

186

Jonsered 532197799

ARM ACTUATOR
(Superseded to 532406563)

$

$

Not available

187

Jonsered 532197800

No Description Available

$

$

Not available

188

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

194

Jonsered 532197797

BEARING.CONTROL.LEVER.CLUTCH
(Superseded to 532406563)

$

$

Not available

195

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

197

Jonsered 532197801

SPRING.PLUNGER.ACTUATOR
(Superseded to 532406563)

$

$

Not available

199

Jonsered 532400095

BAFFLE VORTEX

$18.99

$

Usually ships in 3-10 days

0

209

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

-

Jonsered 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

-

Jonsered 532400422

No Description Available
(Superseded to 583263201)

$848.99

$

Usually ships in 3-10 days

0
