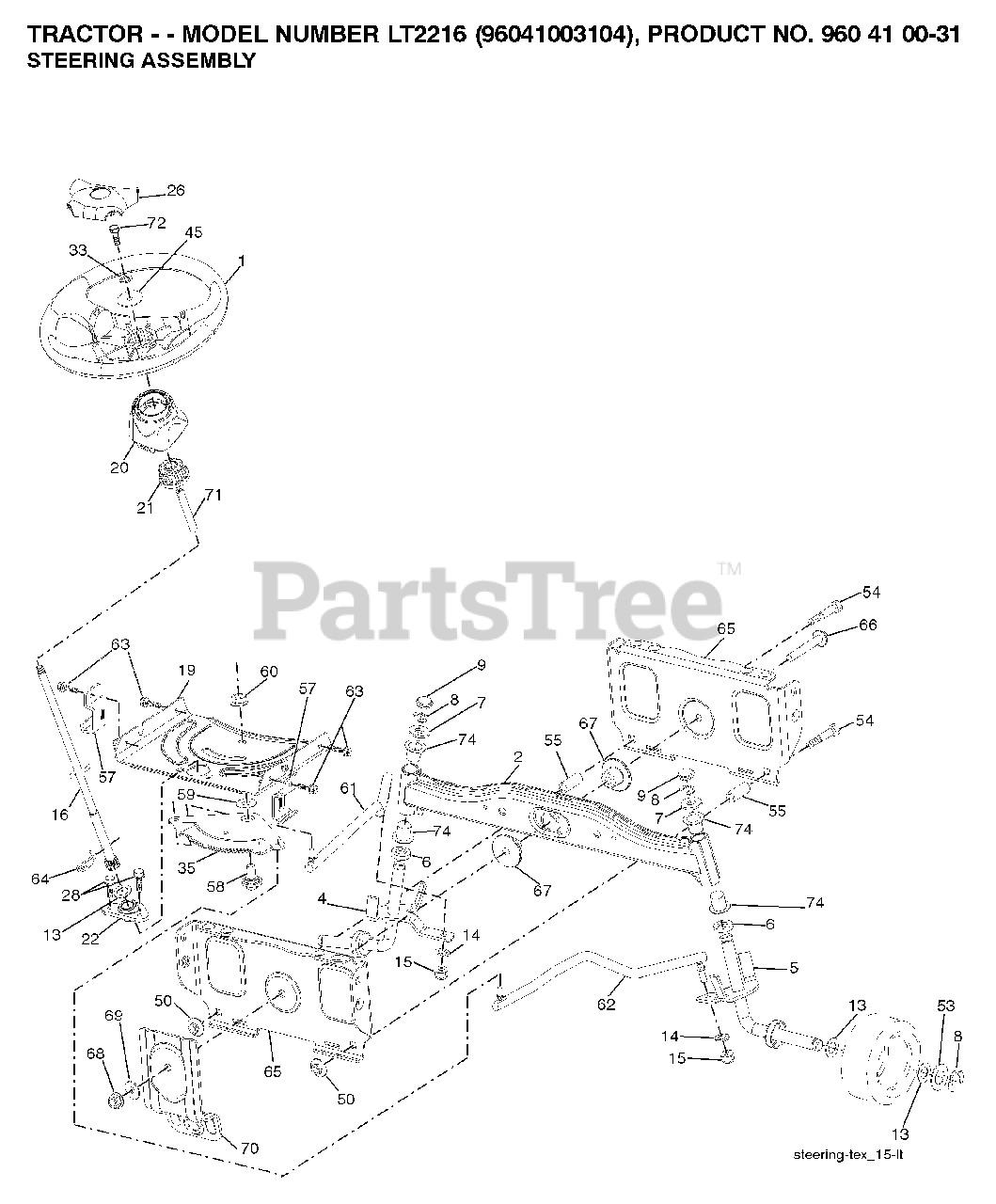

LT 2216 (960410031-04) - Jonsered Lawn Tractor (2007-10) STEERING Parts Diagram

Lawn Tractor

STEERING Parts Diagram

  • Title

1

Jonsered 532194595

No Description Available

$

$

Not available

2

Jonsered 532195673

AXLE.HALF.ASM.WELDED
(Superseded to 532418168)

$46.99

$

Usually ships in 3-10 days

0

4

Jonsered 532403087

SPINDLE.WELDED.LH.15"TEX
(Superseded to 596873601)

$17.99

$

In Stock, Qty 12

0

5

Jonsered 532403088

SPINDLE.WELDED.RH.15"T
(Superseded to 596873701)

$9.99

$

In Stock, Qty 20+

0

6

Jonsered 532124931

No Description Available
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Jonsered 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

8

Jonsered 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 532121232

CAP.SPINDLE

$4.99

$

In Stock, Qty 9

0

13

Jonsered 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

14

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

15

Jonsered 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 532196074

SHAFT STEERING

$

$

Not available

19

Jonsered 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

20

Jonsered 532411291

BOOT STEERING BLACK

$17.99

$

In Stock, Qty 18

0

21

Jonsered 532186737

ADAPTER, WHEEL STNG..
(Superseded to 532437747)

$9.49

$

In Stock, Qty 8

0

22

Jonsered 532194845

BUSHING.ASM.STEERING.A
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

26

Jonsered 532194603

INSERT.CAP.STRG.WH.BLACK

$53.99

$

Usually ships in 3-10 days

0

28

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

33

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

35

Jonsered 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

45

Jonsered 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

53

Jonsered 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

54

Jonsered 874760636

BOLT

$6.49

$

Usually ships in 3-10 days

0

55

Jonsered 532197636

SPACER.BRACE.AXLE

$7.49

$

Usually ships in 3-10 days

0

57

Jonsered 532407465

BRACKET.UPSTOP.TEX

$6.99

$

In Stock, only 1 left!

0

58

Jonsered 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0

59

Jonsered 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

60

Jonsered 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

61

Jonsered 532194740

DRAGLINK.LH.BALLSTUD.D
(Superseded to 597047801)

$12.99

$

Usually ships in 3-10 days

0

62

Jonsered 532194741

DRAGLINK.RH.BALLSTUD.D
(Superseded to 597047902)

$13.99

$

In Stock, Qty 20+

0

63

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

64

Jonsered 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

65

Jonsered 532194734

BRACE.AXLE.FRONT.NLT/N

$43.99

$

In Stock, only 1 left!

0

66

Jonsered 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

67

Jonsered 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

68

Jonsered 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 13

0

69

Jonsered 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

70

Jonsered 532196197

BRKT.DECK.SUSPENSION.F
(Superseded to 585338801)

$9.99

$

Usually ships in 3-10 days

0

71

Jonsered 532196075

SHAFT EXTENSION STEERING

$18.99

$

In Stock, only 2 left!

0

72

Jonsered 874780572

BOLT YT
(Superseded to 874780580)

$5.99

$

In Stock, only 1 left!

0

74

Jonsered 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+
