LT 2213 A (960410154-03) - Husqvarna Lawn Tractor (2012-08) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

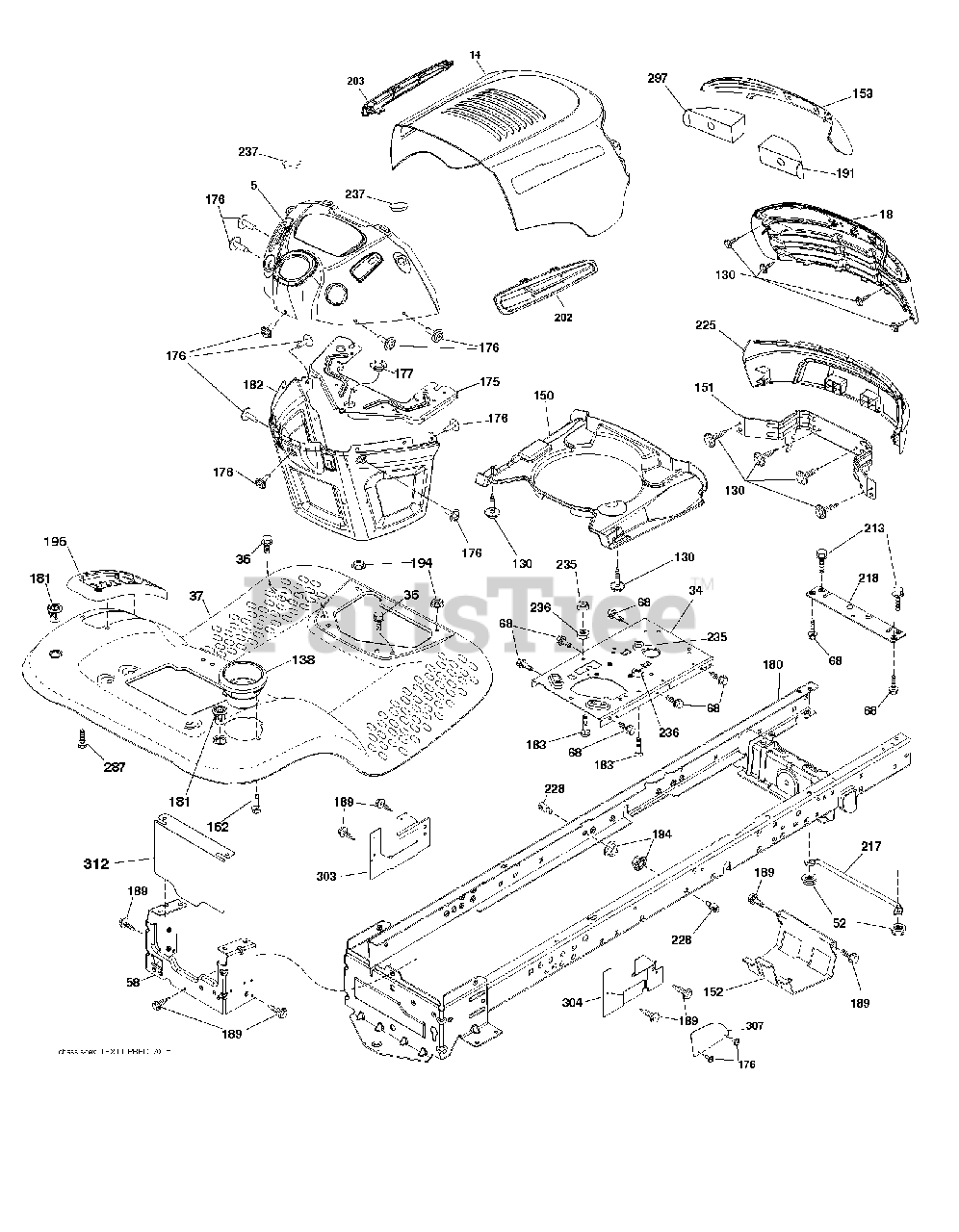

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Electrolux/AYP 532427410

DASH.LT.PRED.E.SRV.CKMTC.BLK

$91.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532441287

HOOD.PNT.PREDATOR.LT.TX.667

$102.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532426511

GRILLE.SVC.BASE.PREDATOR.LT428

$40.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 580910801

Engine Welded Chassis Plate

$68.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532443476

FENDER.TLT.PDL.CNTRL.W/CPH.667

$182.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

138

Electrolux/AYP 532409730

CUPHOLDER.TL.TEX.BLACK

$7.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 532400267

DUCT.AIR.PREDATOR.LT.2.36"

$34.99

$

Usually ships in 3-10 days

0

151

Electrolux/AYP 532187568

BRACKET.PIVOT.ALPHA.LT

$28.99

$

Usually ships in 3-10 days

0

153

Electrolux/AYP 532444264

LENS.PREDATOR.LT

$22.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 532199535

SHIELD BROWNING

$

$

Not available

162

Electrolux/AYP 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 532199472

CROSSMEMBER

$28.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

Electrolux/AYP 532414685

CHASSIS.WLDMNT.14GA.2PC.18".TI
(Superseded to 583351501)

$121.99

$

Usually ships in 3-10 days

0

181

Electrolux/AYP 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Electrolux/AYP 532407176

DASH.LWER.PREDATOR/HUSQ.LT

$79.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

191

Electrolux/AYP 532416502

INSERT.REFLECT.PREDATOR.LT.RH

$28.99

$

Usually ships in 3-10 days

0

194

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

196

Electrolux/AYP 532414579

CONSOLE.ASM.DECKLFT.BL/RBT.TLT

$37.99

$

In Stock, only 1 left!

0

202

Electrolux/AYP 532424322

No Description Available

$

$

Not available

203

Electrolux/AYP 532424323

VENT.SIDE.PRED.LT.LH.JONSERED

$15.99

$

Usually ships in 3-10 days

0

213

Electrolux/AYP 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Electrolux/AYP 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Electrolux/AYP 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

225

Electrolux/AYP 532441487

BUMPER.GRILLE.PRED.LT.JONS.505

$46.99

$

Usually ships in 3-10 days

0

228

Electrolux/AYP 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Electrolux/AYP 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Electrolux/AYP 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

237

Electrolux/AYP 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

287

Electrolux/AYP 817600406

SCREW

$6.49

$

Usually ships in 3-10 days

0

297

Electrolux/AYP 532401827

REFLECTOR.INSERT.PRED.LH.LT

$28.99

$

Usually ships in 3-10 days

0

303

Electrolux/AYP 532425151

SHIELD CHASSIS LEFT
(Superseded to 583417601)

$26.99

$

Usually ships in 3-10 days

0

304

Electrolux/AYP 532425152

No Description Available

$

$

Not available

307

Electrolux/AYP 532424570

SHIELD UPPER PEDAL
(Superseded to 583413101)

$12.99

$

Usually ships in 3-10 days

0

312

Electrolux/AYP 532425926

SHIELD.PNT.DRAWBAR.FRENCH

$

$

Not available
