LT 2213 (960410087-05) - Husqvarna Lawn Tractor (2012-08) SEAT Parts Diagram

Lawn Tractor

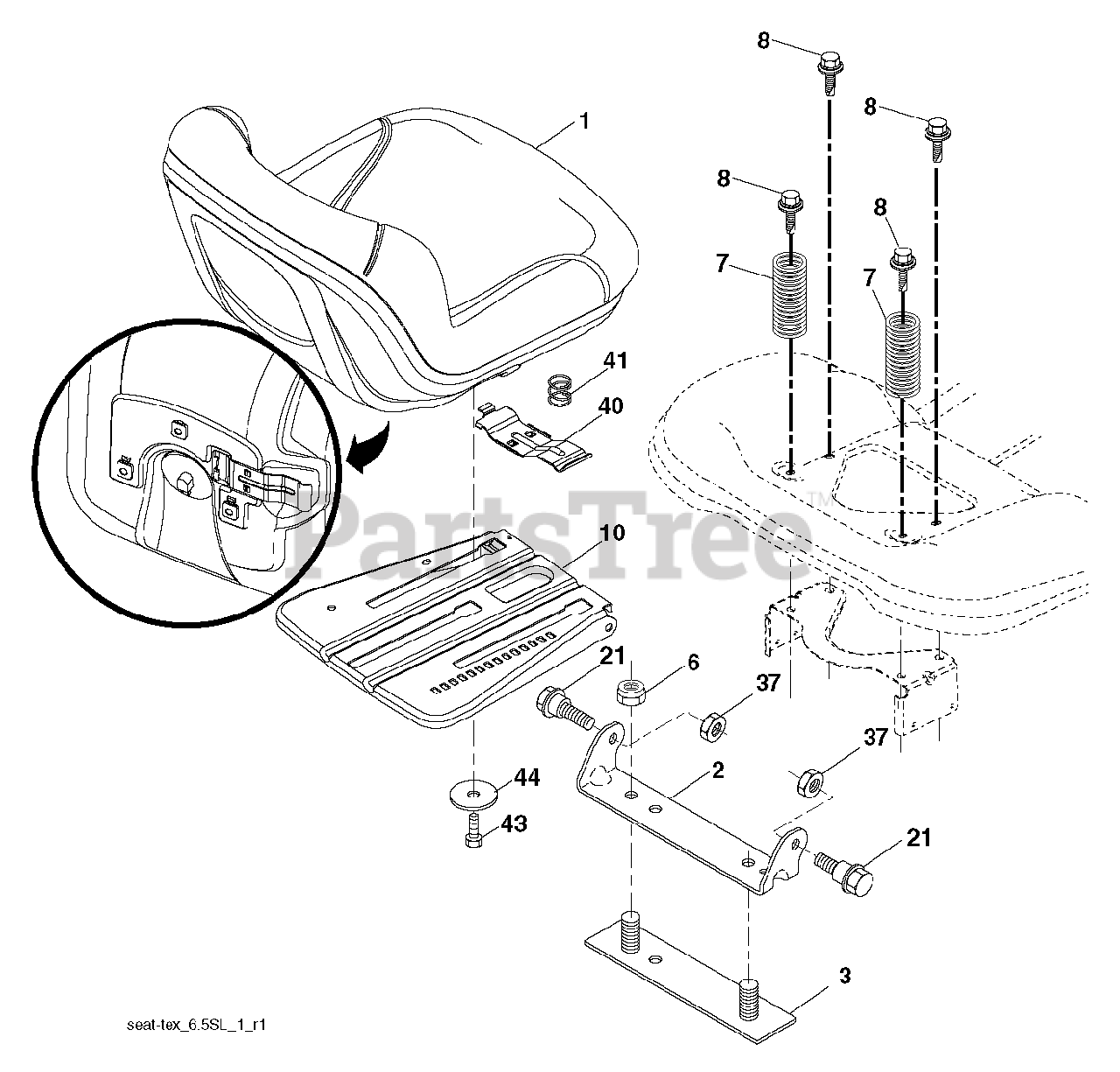

SEAT Parts Diagram

  • Title

1

Electrolux/AYP 532411405

SEAT.TG130.BLACK.NO/LOGO.

$241.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 532140675

STRAP

$6.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 6

0

10

Electrolux/AYP 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

37

Electrolux/AYP 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK
(Superseded to 595088102)

$5.99

$

In Stock, Qty 7

0

41

Electrolux/AYP 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 874760612

BOLT

$4.99

$

In Stock, only 3 left!

0

44

Electrolux/AYP 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

$

$

Not available
