LT-2200 (13A6606H790) - White Outdoor 46" Lawn Tractor (2004) Engine Accessories Parts Diagram

46" Lawn Tractor

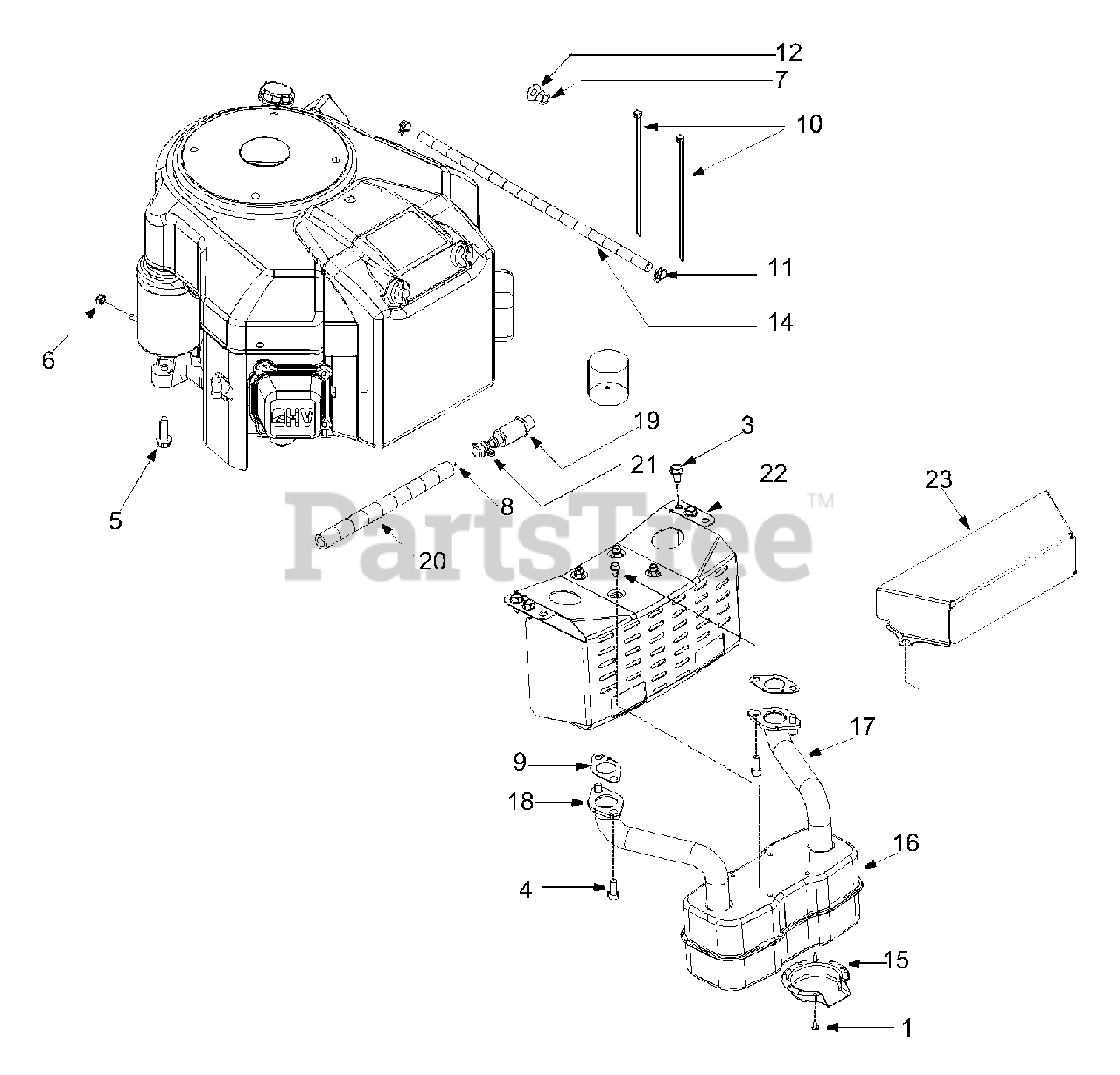

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 710-0227

AB Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 15

0

2

White Outdoor 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0726

AB Screw 5/16-12 x 0.5

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1314A

Socket Hd Scr 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

6

White Outdoor 712-0271

Sems Nut

$4.49

$

In Stock, Qty 10

0

7

White Outdoor 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

721-0331

Pipe Sealant

$

$

Not available

9

White Outdoor 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

10

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

11

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

12

White Outdoor 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

13

SAE 30W Oil

$

$

Not available

14

751-0535

Fuel Line Hose

$

$

Not available

15

White Outdoor 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

16

White Outdoor 751-0616A

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

17

White Outdoor 751-0813A

Exhaust Pipe LH

$

$

Not available

18

White Outdoor 751-0814A

Exhaust Pipe RH

$

$

Not available

19

White Outdoor 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

20

White Outdoor 751-3141

OIl Drain Hose extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

21

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, only 4 left!

0

22

White Outdoor 783-0615C

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615C-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

23

White Outdoor 783-0625C

Heat Shield

$111.99

$

Usually ships in 3-6 days

0
