LT-2200 (13A6606H790) - White Outdoor 46" Lawn Tractor (2004) Drive & Wheels Rear Parts Diagram

46" Lawn Tractor

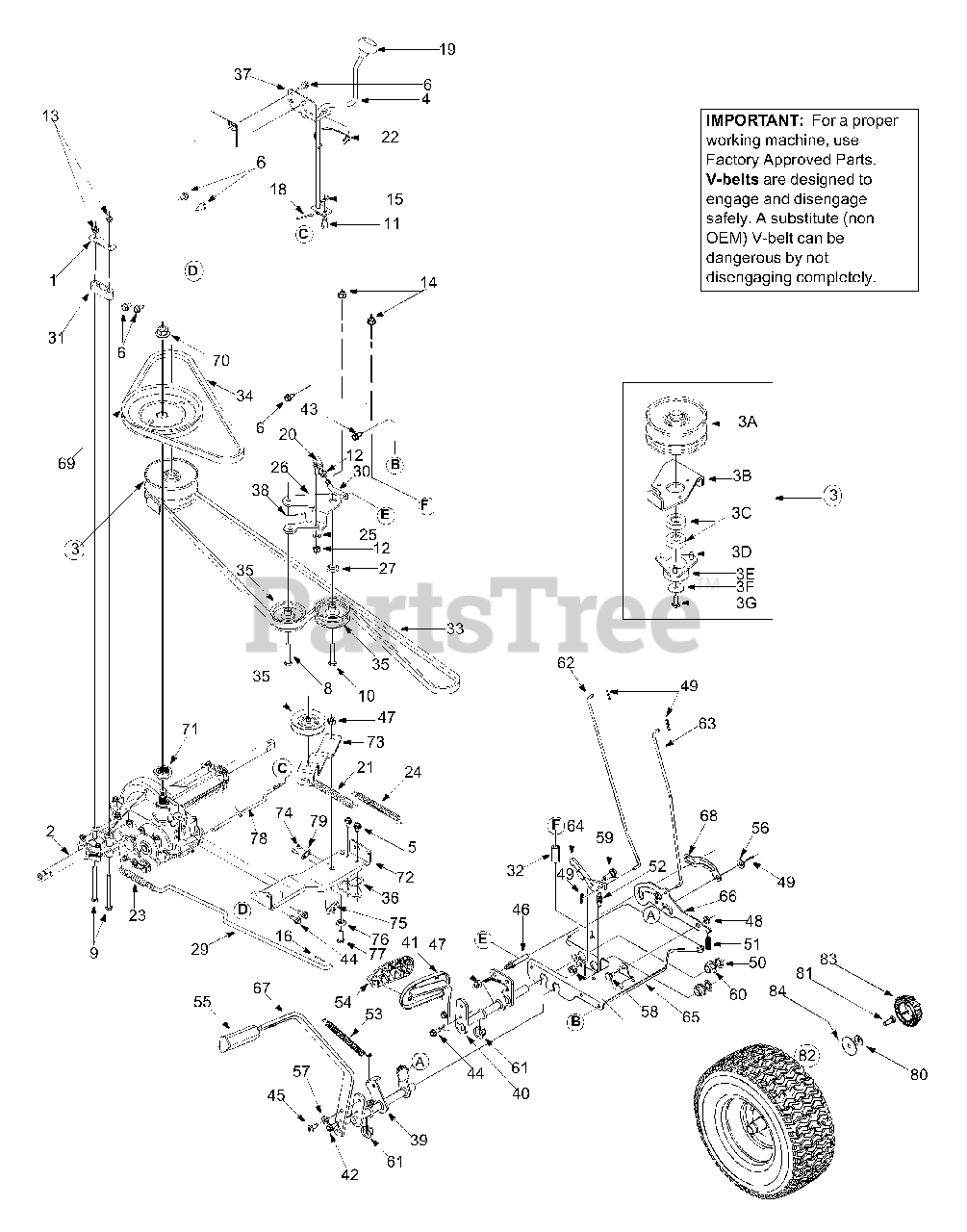

Drive & Wheels Rear Parts Diagram

  • Title

1

White Outdoor 17840

Mounting Bracket
(Superseded to 17840-0637)

Variations

White Outdoor 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

2

White Outdoor 618-04133

Drive Assembly
(Superseded to 753-05851)

$671.99

$

Usually ships in 3-6 days

0

3

White Outdoor 618-04147

Variable Spd. Pulley Assembly
(Superseded to 918-04423A)

$177.99

$

In Stock, only 2 left!

0

3A

White Outdoor 656-0059B

Var. Spd. Pulley
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

3B

White Outdoor 683-04129

Bracket: Variable Speed
(Superseded to 753-06035)

$

$

Not available

3C

White Outdoor 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

3D

White Outdoor 710-0642

TT Screw 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

3E

White Outdoor 718-04012

Cup: Bearing

$21.99

$

Usually ships in 3-6 days

0

3F

White Outdoor 736-0362

Flat Washer

$4.49

$

In Stock, Qty 8

0

3G

White Outdoor 710-0627

Hex Bolt 5/16-24 x 0.75

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 647-04020

Shift Lever Assembly

$29.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0607

TT Screw 5/16-18 x 0.5

$6.99

$

In Stock, Qty 11

0

6

White Outdoor 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0809

TT Screw 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

8

White Outdoor 710-1007

TT Sems Screw 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

9

White Outdoor 710-1266

Hex Bolt 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-3144

Hex Bolt 3/8-16 x 2.0

$4.49

$

In Stock, Qty 7

0

11

White Outdoor 711-0736

Ferrule

$13.99

$

In Stock, only 2 left!

0

12

White Outdoor 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

13

White Outdoor 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

17

White Outdoor 714-0209

Hairpin Clip
(Superseded to 914-0209)

$3.99

$

In Stock, only 2 left!

0

18

White Outdoor 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

20

White Outdoor 723-3018

Ball Joint
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

21

White Outdoor 732-0384

Extension Spring
(Superseded to 932-0384)

$14.99

$

In Stock, only 4 left!

0

22

White Outdoor 732-0525

Spring Clip

$10.99

$

In Stock, only 1 left!

0

23

White Outdoor 732-0716

Extension Spring
(Superseded to 732-0716D)

$13.99

$

In Stock, only 2 left!

0

24

White Outdoor 732-0963

Extension Spring

$9.99

$

In Stock, only 4 left!

0

25

White Outdoor 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

26

Grease

Note: Purchase locally

$

$

Not available

27

White Outdoor 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 20+

0

28

White Outdoor 747-04146

Shift Rod
(Superseded to 747-04146C)

$22.99

$

In Stock, only 1 left!

0

29

White Outdoor 747-04164

Brake Rod

$

$

Not available

30

White Outdoor 747-1127

Idler Adj. Rod

$42.99

$

Usually ships in 3-6 days

0

31

White Outdoor 748-0334

Spacer: Transaxle
(Superseded to 948-0334)

$10.99

$

In Stock, only 1 left!

0

32

White Outdoor 750-0566A

Spacer

$9.99

$

In Stock, only 1 left!

0

33

White Outdoor 754-0467

V Belt
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

34

White Outdoor 754-0468

V Belt
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 16

0

35

White Outdoor 756-0981A

Flat Idler Pulley
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

36

White Outdoor 783-04283

Shift Bracket

$

$

Not available

37

White Outdoor 783-04360

Shift Bracket

$

$

Not available

38

White Outdoor 783-04442

Double Idler Bracket: Center

Variations

White Outdoor 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

White Outdoor 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

39

White Outdoor 647-0031C

Brake Control Assembly
(Superseded to 753-05606)

$

$

Not available

40

White Outdoor 647-0032A

Speed Control Assembly
(Superseded to 647-0032A-0637)

Variations

White Outdoor 647-0032A-0637

CONTROL ASSY-SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

41

White Outdoor 683-0266

Drive Pedal Assembly

$

$

Not available

42

White Outdoor 710-0650

TT Screw 5/16-18 x 0.875

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 710-1611B

TT Screw 5/16-18 x 0.75

$6.99

$

In Stock, only 2 left!

0

46

White Outdoor 711-04159

Pin
(Superseded to 753-04872)

$

$

Not available

47

White Outdoor 712-0130

Hex Lock Nut 3/8-16

$3.99

$

In Stock, Qty 13

0

48

White Outdoor 712-3004A

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 726-04028

Push Nut
(Superseded to 712-04016)

$6.99

$

Usually ships in 3-6 days

0

51

White Outdoor 732-0335

Compression Spring

$

$

Not available

52

White Outdoor 732-0955

Extension Spring

$9.99

$

In Stock, only 1 left!

0

53

White Outdoor 732-0963

Extension Spring

$9.99

$

In Stock, only 4 left!

0

54

White Outdoor 735-0662

Control Pad

$11.99

$

Usually ships in 3-6 days

0

55

White Outdoor 735-3049

Brake Pad
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

56

White Outdoor 736-0262

Flat Washer

$3.99

$

Usually ships in 3-6 days

0

57

White Outdoor 736-3008

Flat Washer
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

58

White Outdoor 738-0155

Shoulder Screw
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

59

White Outdoor 738-0380

Shoulder Screw

$7.99

$

In Stock, only 1 left!

0

60

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

61

White Outdoor 741-3065B

Hex Flange Bearing: Split

$8.49

$

In Stock, Qty 11

0

62

White Outdoor 747-04093

Brake Lock Rod
(Superseded to 747-04093A)

$

$

Not available

63

White Outdoor 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

64

White Outdoor 748-04039

Cruise Latch
(Superseded to 748-04039B)

$

$

Not available

65

White Outdoor 783-0653F

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-0653F-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

66

White Outdoor 783-0732

Lock-Out Bracket
(Superseded to 783-0732A)

$34.99

$

Usually ships in 3-6 days

0

67

White Outdoor 783-0773A

Brake Pedal
(Superseded to 753-05606)

Variations

White Outdoor 783-0773A-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0773A-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0773A-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0773A-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0773A-4008

PEDAL-BRAKE - WINE RED (4008)

$

$

Not available

$

$

68

White Outdoor 783-0780B

Neutral Return Bracket

Variations

White Outdoor 783-0780B-0637

BRACKET-NEUTRAL RE - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

69

White Outdoor 756-04002

Transmission Pulley
(Superseded to 956-04002)

$27.99

$

In Stock, Qty 13

0

70

White Outdoor 712-0700

Flange Nut 9/16-18

$10.99

$

In Stock, only 2 left!

0

71

White Outdoor 718-0758A

Pulley Hub
(Superseded to 718-04407)

$12.99

$

In Stock, only 2 left!

0

72

White Outdoor 683-04055

Transmission Torque Bracket
(Superseded to 753-05343)

$

$

Not available

73

White Outdoor 683-04130

Idler Bracket
(Superseded to 753-05343)

$

$

Not available

74

White Outdoor 710-0227

AB Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 15

0

75

White Outdoor 725-1644

Spring Switch

$9.99

$

In Stock, only 1 left!

0

76

White Outdoor 750-0736

Shoulder Spacer
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

77

White Outdoor 710-0514

Hex Bolt 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 747-04146

Shift Rod
(Superseded to 747-04146C)

$22.99

$

In Stock, only 1 left!

0

79

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

80

White Outdoor 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 710-0627

Hex Cap Screw

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 634-0177

Wheel Assembly

Variations

White Outdoor 634-0177-0911

WHEEL ASS'Y COMP - Carlisle Gray (0911)

$473.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0931

WHEEL ASSEMBLY COM - Carlisle Beige (0931)

$473.99

$

In Stock, only 1 left!

0

White Outdoor 634-0177-0941

WHEEL ASS'Y COMP - Carlisle Yellow (0941)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0991

WHEEL ASS'Y COMP - Carlisle White (0991)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0994

WHEEL ASS'Y COMP - Cheng White (0994)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-4009

WHEEL ASS'Y COMP - TEE WHITE (4009)

$357.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0177-0961

WHEEL ASS'Y COMP - Carlisle Gray (0961)

$

$

Not available

$384.99

$

Usually ships in 3-6 days

0

82

White Outdoor 634-0070

Rim Assembly
(Superseded to 634-04369)

Note: Not Shown

Variations

White Outdoor 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

82

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 734-1873

Tire

Note: Not Shown

Variations

White Outdoor 734-1873-0901

Tire, 20 X 10 X 8 - Carlisle (0901)

$106.99

$

In Stock, only 1 left!

0

White Outdoor 734-1873-0904

Tire, 20 X 10 X 8 - Cheng (0904)

$106.99

$

In Stock, only 1 left!

0

$246.99

$

Usually ships in 3-6 days

0

83

White Outdoor 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

84

White Outdoor 736-0430

Flat Washer

$4.49

$

In Stock, Qty 10

0
