LT 2180 (13A-254G712) - Cub Cadet 42" Lawn Tractor Frame And Drawbar Parts Diagram

42" Lawn Tractor

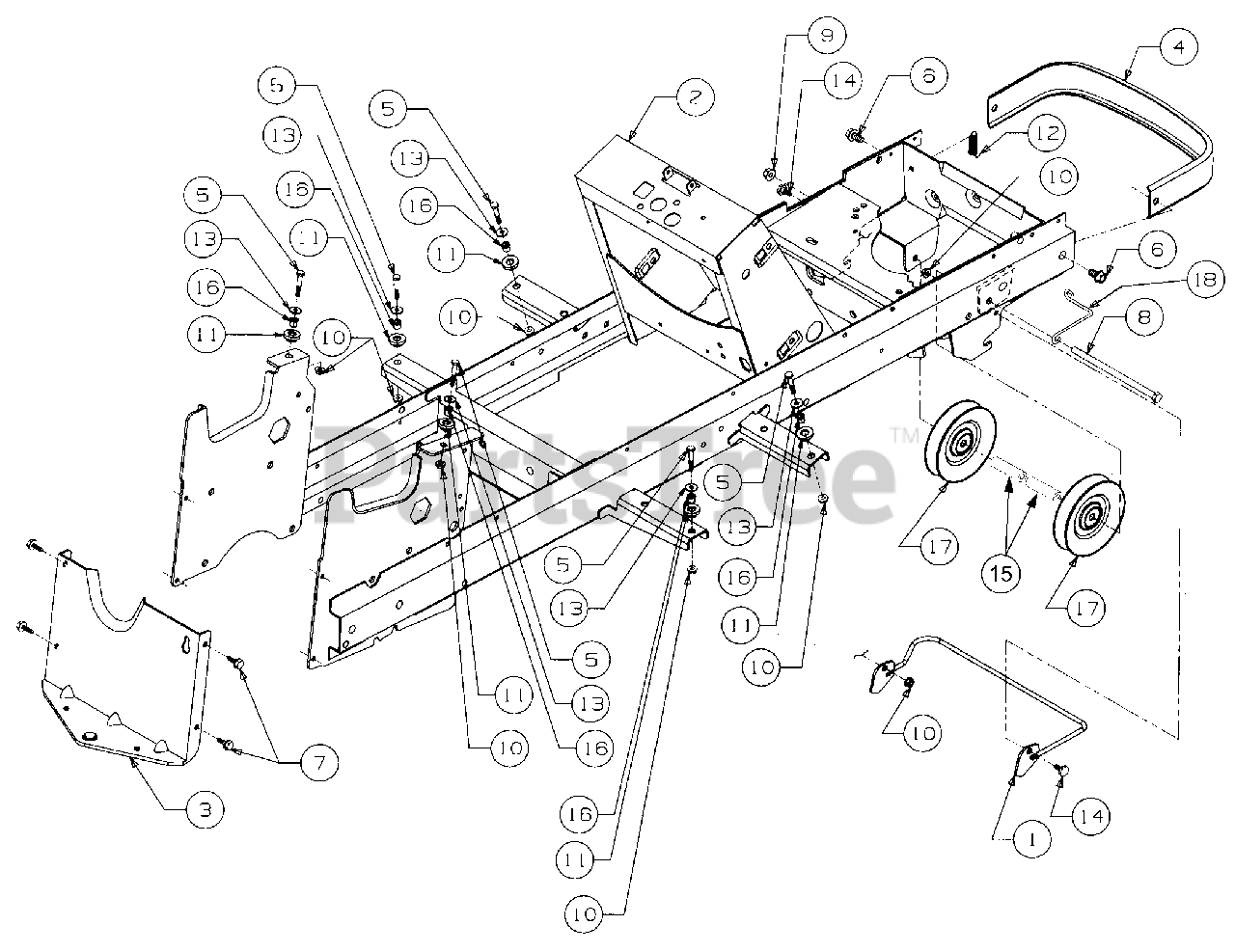

Frame And Drawbar Parts Diagram

  • Title

1

Cub Cadet 603-0132

Rod, Quick Attach
(Superseded to 603-04250-0637)

Variations

Cub Cadet 603-0132-0498

Latch Assembly, Quick - OLD CUB YELLOW (0498)

$71.99

$

In Stock, only 1 left!

0

Cub Cadet 603-0132-0716

Latch Assembly, Quick - CUB YELLOW-99 (0716)

$71.99

$

In Stock, only 1 left!

0

$71.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0328C

Frame

Variations

Cub Cadet 603-0328C-0716

FRAME ASSY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

Cub Cadet 703-2257

Drawbar

Note: use with 618-3231 trans

Variations

Cub Cadet 703-2257-0498

USE 703-2257-0716 PLATE-TOW - OLD CUB YELLOW (0498)

$155.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2257-0716

PLATE-TOW - CUB YELLOW-99 (0716)

$155.99

$

Usually ships in 3-6 days

0

$144.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-05464

Drawbar
(Superseded to 703-05464-0716)

Note: use with 618-04110 trans

Variations

Cub Cadet 703-05464-0716

PLATE-TOW - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

Cub Cadet 777I20296

Graphic, Transmission Release Lever

Note: Not shown

$

$

Not available

4

Cub Cadet 703-2577

Bumper
(Superseded to 703-05626)

Variations

Cub Cadet 703-2577-0498

Front Bumper - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2577-0716

Front Bumper - CUB YELLOW-99 (0716)

$

$

Not available

$

$

5

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

6

Cub Cadet 710-0623

Screw, Hex Wsh Hd Tapp 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-1260A

Screw, Hex Wsh Hd Tap 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3261

Screw, Hex Cap, 3/8-16 x 7.0

$13.99

$

In Stock, only 2 left!

0

9

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 722-0258

Grommet, Insulator
(Superseded to 922-0258)

$

$

Not available

12

Cub Cadet 732-3002

Spring, Latch
(Superseded to 932-3002)

$9.49

$

In Stock, only 4 left!

0

13

Cub Cadet 736-3090

Washer, Flat, .255 x .72 x .60

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 738-0255

Bolt, Shoulder
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

15

Cub Cadet 750-04198

Spacer, Idler, .411 x .720 x 2.19
(Superseded to 750-04198A)

$11.99

$

In Stock, Qty 6

0

16

Cub Cadet 750-3169

Spacer, .28 x .40 x .42 Lg
(Superseded to 950-3169)

$10.99

$

In Stock, Qty 6

0

17

Cub Cadet 756-3045

Pulley, Idler
(Superseded to 956-3045A)

$57.99

$

In Stock, Qty 6

0

18

Cub Cadet 732-0970

Belt Guide
(Superseded to 932-0970)

$11.99

$

Usually ships in 3-6 days

0
