LT 2180 (13A-254G712) - Cub Cadet 42" Lawn Tractor Engine Mounting And Muffler Parts Diagram

42" Lawn Tractor

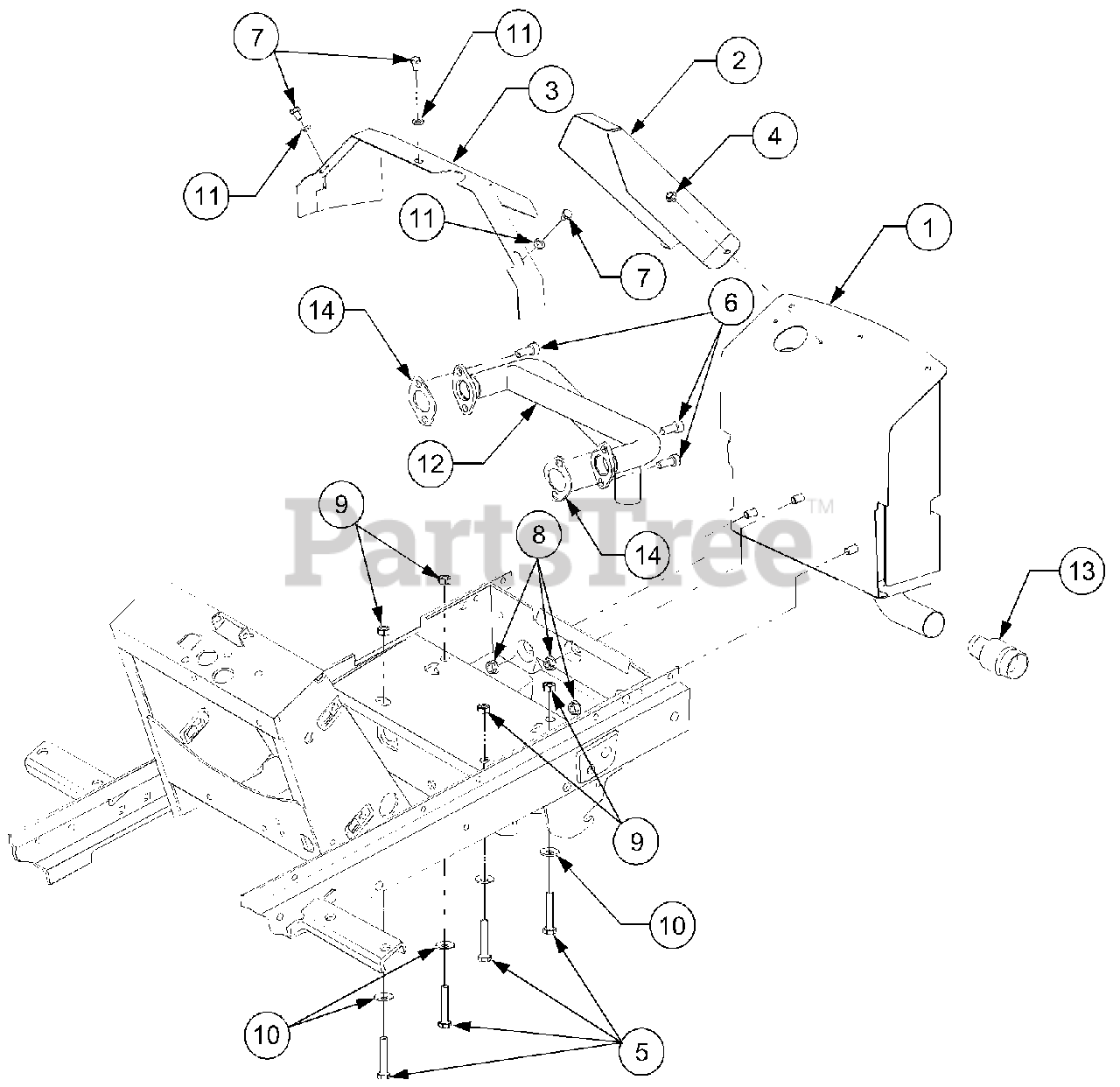

Engine Mounting And Muffler Parts Diagram

  • Title

1

Cub Cadet 651-3001

Muffler Assembly
(Superseded to 951-3001P)

$437.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-3099

Sheild, Muffler Tube
(Superseded to 703-3099A)

$33.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-05470

Sheild, Engine Heat

$

$

Not available

4

Cub Cadet 710-1268

Screw, Hex Wsh Hd Tap, #10-16 x .38

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3180

Bolt, Eng Mount, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3292

Screw, Scket Hd Cap, M8-1.25x20mm

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3209

Screw, Hex Cap, M6-1.0 x 10 GR8.8

$8.49

$

In Stock, Qty 13

0

8

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0242

Washer, Bell, .345 x .88 x .060

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0142

Washer, Flat, .281 x .5 x .063

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 751-0655

Tube, Exhaust

$169.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 759-3744

Arrestor, Spark
(Superseded to 951-0544)

$

$

Not available

14

Cub Cadet BS-691613

Gasket, Exhaust

$5.49

$

Usually ships in 2-12 days

0
