LT-2150 (13AJ616H190) - White Outdoor 46" Lawn Tractor (2000) Electrical Parts Diagram

46" Lawn Tractor

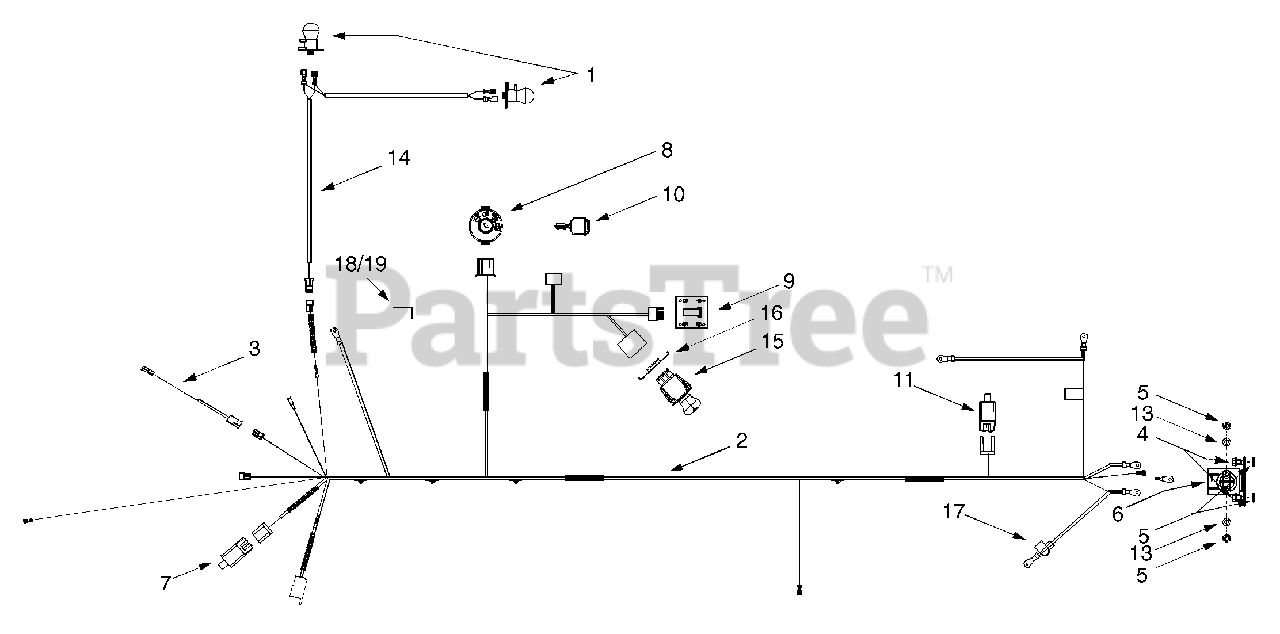

Electrical Parts Diagram

  • Title
1

White Outdoor 625-0051

Bulb/Socket Headlight Assembly
(Superseded to 925-0051)

$16.99

$

Usually ships in 3-6 days

0

2

White Outdoor 629-0943

Wiring Harness w/o Ref. 14

Note: (LT-1650)

$

$

Not available

White Outdoor 629-0939

Wiring Harness w/o Ref. 14

Note: (LT-1850 & 2150)

$401.99

$

Usually ships in 3-6 days

0

3

White Outdoor 629-0126

Harness Adapter, #18 x 5

$

$

Not available

4

White Outdoor 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

6

White Outdoor 725-1426

Solenoid, 12-volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

7

White Outdoor 725-1657A

Snap Mount Safety Interlock Switch
(Superseded to 925-1657A)

Note: (Brake)

$24.99

$

In Stock, only 4 left!

0

8

White Outdoor 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

In Stock, Qty 7

0

9

White Outdoor 725-1743

Indicator Monitor / Hour Meter
(Superseded to 753-0908)

$

$

Not available

10

White Outdoor 725-1745

Ignition Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

11

White Outdoor 725-1747

Safety Plunger Switch
(Superseded to 925-1747)

Note: (Seat)

$40.99

$

Usually ships in 3-6 days

0

?12

White Outdoor 736-0222

External Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

13

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

White Outdoor 629-0309

Headlight Harness
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

15

White Outdoor 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

Note: (LT-1850 & 2150 only)

$70.99

$

In Stock, only 2 left!

0

16

White Outdoor 783-0462

Retainer Bracket

Note: (LT-1850 & 2150 only)

$

$

Not available

17

White Outdoor 725-3007A

Positive Terminal Cover

Note: (Boot)

$

$

Not available

18

$

$

Not available

19

White Outdoor 725-1381

20-amp Fuse
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0
