LT 2138 (13A-214F710) - Cub Cadet 38" Lawn Tractor Starting System Parts Diagram

38" Lawn Tractor

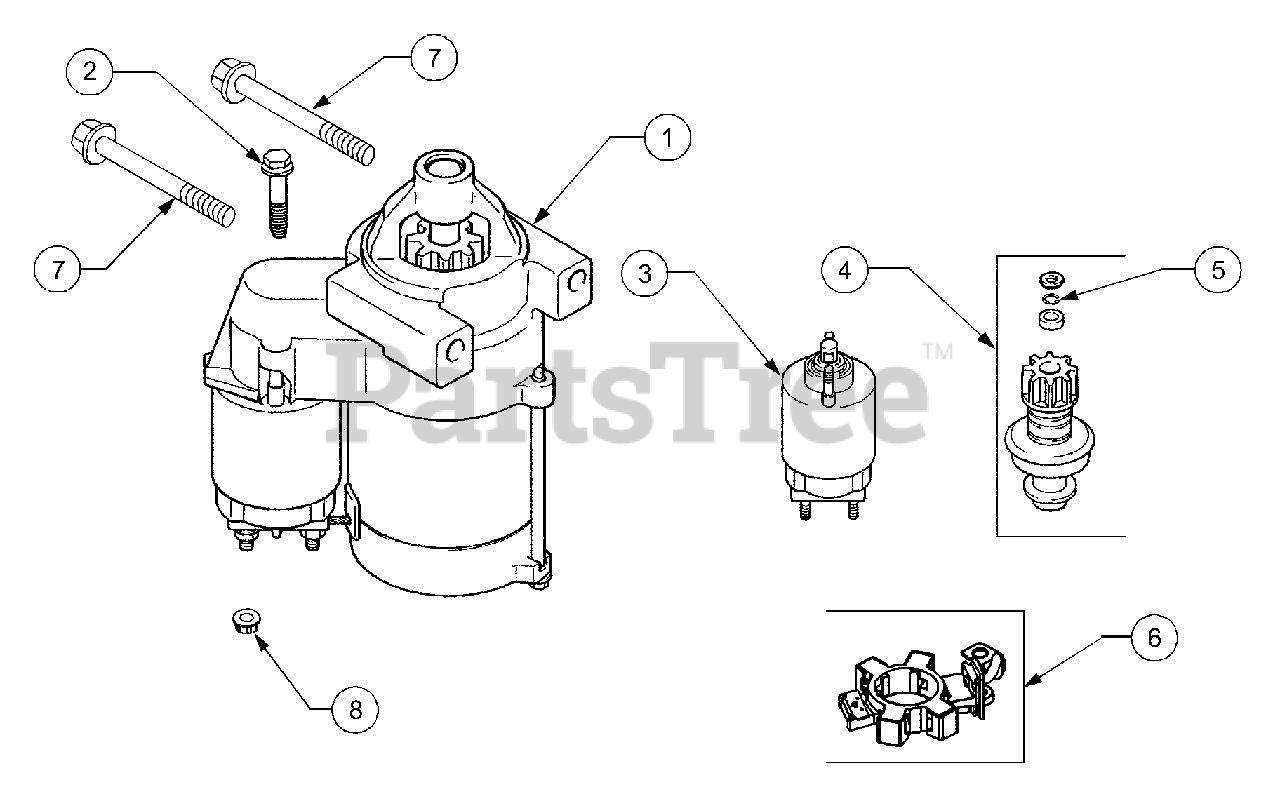

Starting System Parts Diagram

  • Title

1

Cub Cadet KH-25-098-09-S

Starter,
(Superseded to KH-25-098-24-S)

Note: (Incl. Ref #2-6)

$368.99

$

In Stock, only 4 left!

0

2

Cub Cadet KH-25-086-113-S

Screw, External Torx Hd.

$18.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-25-435-05-S

Kit, Solenoid
(Superseded to KH-25-435-06-S)

Note: (Includes Ref. #2)

$243.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-25-755-33-S

Kit, Pinion Drive

Note: (Includes Ref. 5)

$

$

Not available

5

Cub Cadet KH-25-141-05-S

Ring

$

$

Not available

6

Cub Cadet KH-25-221-01-S

Kit, Brush

$81.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-M-839080

Screw, Hex Flange, M8 x 1.25 x 80
(Superseded to KH-M-851080-S)

$4.49

$

In Stock, only 1 left!

0

8

Cub Cadet KH-M-0841080

Nut, Hex Flange, M8 x 1.25
(Superseded to 712-3086)

$4.99

$

In Stock, only 3 left!

0
