LT 2138 (13A-214F710) - Cub Cadet 38" Lawn Tractor PTO Clutch Parts Diagram

38" Lawn Tractor

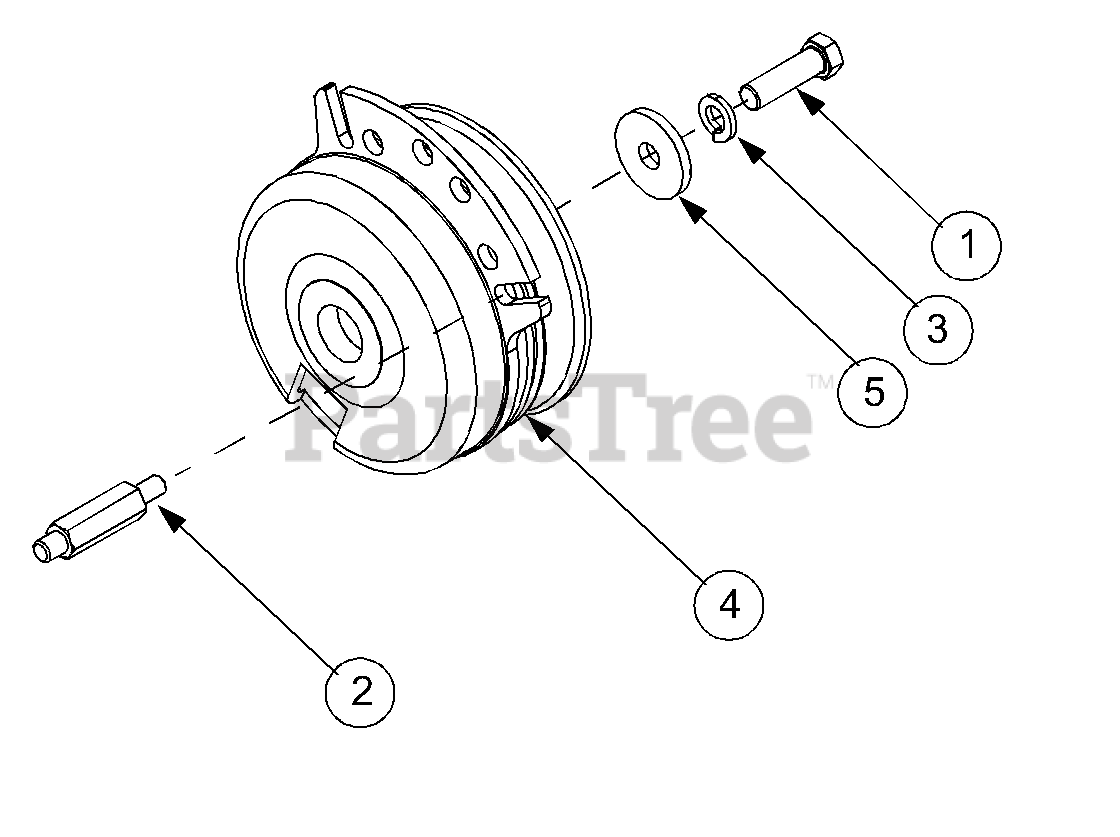

PTO Clutch Parts Diagram

  • Title
1

Cub Cadet 710-0757

Screw, Hex Cap, 7/16-20 x 1.5 GR5

$9.99

$

In Stock, only 1 left!

0

2

Cub Cadet 711-1099

Stud, Clutch Stop

$

$

Not available

3

Cub Cadet 736-0171

Washer, Lock, 3/8

$4.49

$

In Stock, Qty 5

0

4

Cub Cadet 717-3385A

Clutch Assy, PTO
(Superseded to 917-3385B)

$563.99

$

Usually ships in 3-6 days

0

Cub Cadet 711-3351

Spacer

Note: (Not Shown)

$

$

Not available

5

Cub Cadet 736-3082A

Washer, Flat, .445 x 1.5 x 1.72 Hdn

$9.99

$

In Stock, Qty 16

0
