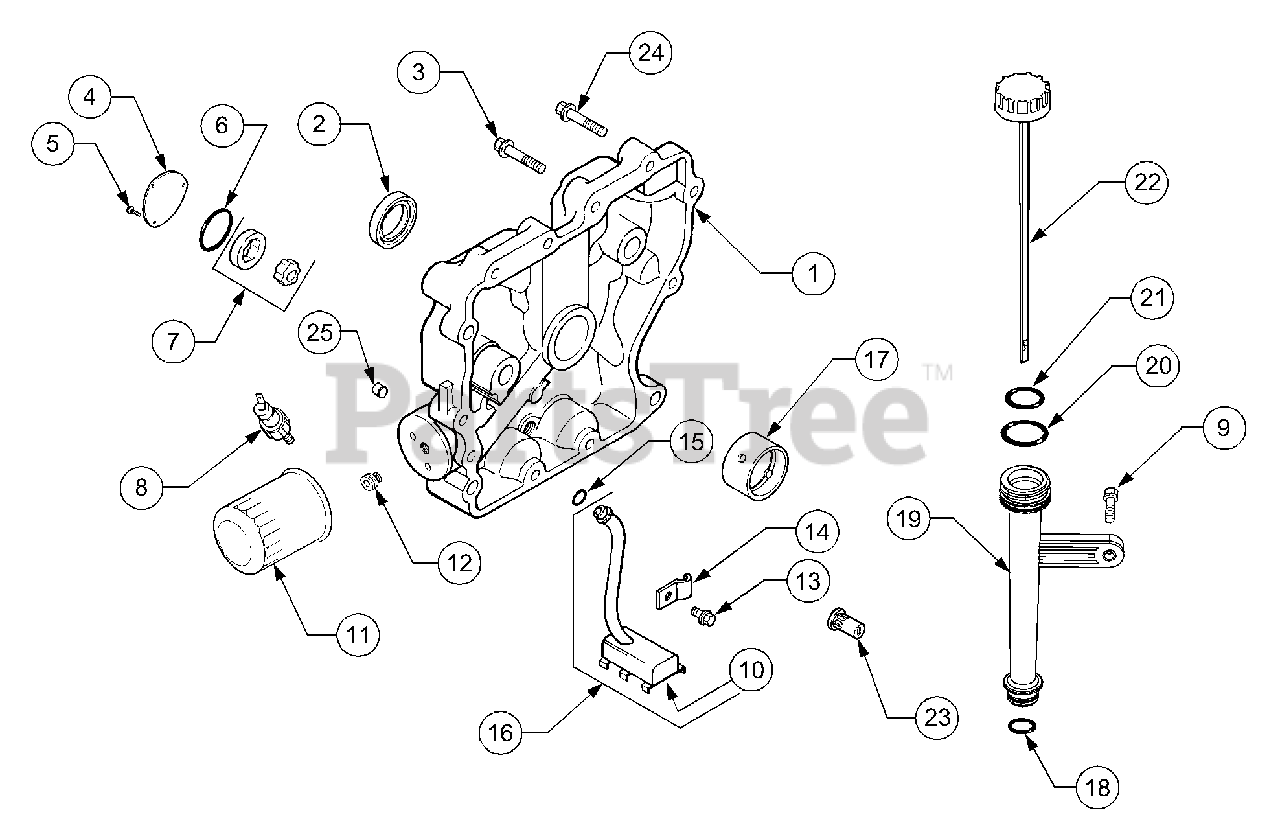

LT 2138 (13A-214F710) - Cub Cadet 38" Lawn Tractor Oil Pan And Lubrication Parts Diagram

38" Lawn Tractor

Oil Pan And Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-12-009-51

Plate Assembly, Closure

Note: (Incl. Ref #4-7,17, 23)

$

$

Currently unavailable

2

Cub Cadet KH-12-032-03

Seal, Oil (PTO End)
(Superseded to KH-12-032-03-S)

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-086-16

Screw, Closure Plate, M8x1.25x45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

4

Cub Cadet KH-12-096-21

Cover, Oil Pump

$

$

Not available

5

Cub Cadet KH-M-545016

Screw, Oil Pump Cover, M5x.8x16

$

$

Currently unavailable

6

Cub Cadet KH-12-153-05

O-Ring, Oil Pump

$

$

Not available

7

Cub Cadet KH-12-393-01

Pump Assembly, Oil

$

$

Not available

8

Cub Cadet KH-25-099-24

Switch, Oil Pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, only 4 left!

0

9

Cub Cadet KH-M-545016-S

Screw, Hex Flange M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-25-381-01

Pick-up, Oil Screen

$

$

Not available

11

Cub Cadet KH-12-050-08

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

12

Cub Cadet KH-24-136-01

Nipple, Oil Filter
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet KH-M-545016-S

Screw, Oil Pick-Up, M5 x .8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-52-154-01

Clip, Oil Tube

$

$

Not available

15

Cub Cadet KH-12-153-04

O-Ring, Oil Pick-Up

$

$

Not available

16

Cub Cadet KH-12-755-73

Kit, Oil Pick-Up

Note: (Incl. Ref #10)

$

$

Not available

17

Cub Cadet KH-12-030-05

Bearing, Thrust

$

$

Not available

18

Cub Cadet KH-12-153-07

O-Ring, Lower Oil Fill Tube

$

$

Not available

19

Cub Cadet KH-12-123-22

Tube, Oil Fill

$

$

Not available

20

Cub Cadet KH-12-153-02

O-Ring, Upper Oil Fill Tube
(Superseded to KH-12-153-02-S)

$2.49

$

In Stock, Qty 8

0

21

Cub Cadet KH-12-153-03

O-Ring, Dipstick Cap
(Superseded to KH-25-153-02-S)

$2.49

$

In Stock, only 1 left!

0

22

Cub Cadet KH-12-038-08

Cap/Dipstick, Oil Fill

$

$

Not available

23

Cub Cadet KH-25-462-09

Valve, Oil Pressure Relief

$

$

Not available

24

Cub Cadet KH-24-086-17

Screw, Hex Flange M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

25

Cub Cadet KH-25-139-60-S

Plug

$3.49

$

In Stock, only 2 left!

0
