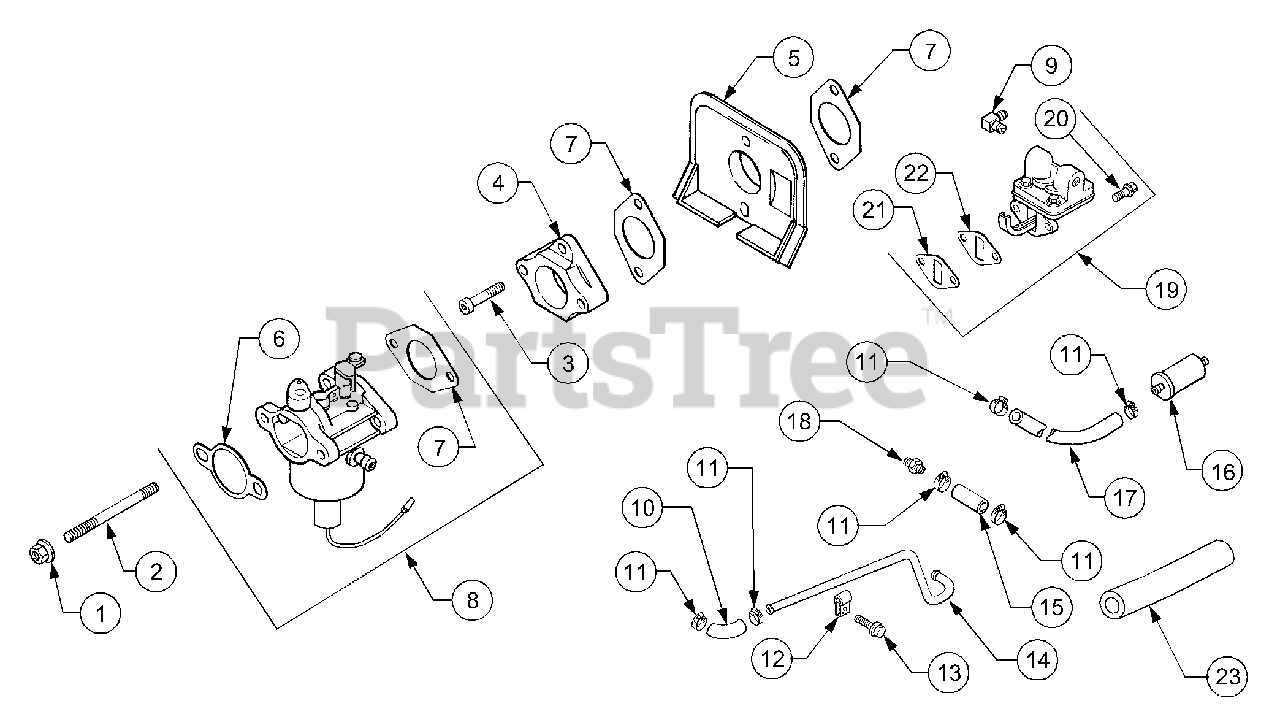

LT 2138 (13A-214F710) - Cub Cadet 38" Lawn Tractor Fuel System Parts Diagram

38" Lawn Tractor

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-M-0641060

Nut, Hex Flange, M6 x 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 6

0

2

Cub Cadet KH-M-0629116

Stud, Carburetor, M6 x 1.0 x 116

$

$

Currently unavailable

3

Cub Cadet KH-M-0644035

Screw, Socket Cap, M6 x 1.0 x 35
(Superseded to KH-M-644035-S)

$2.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-12-029-04

Adapter, Carburetor

$

$

Not available

5

Cub Cadet KH-12-265-04

Deflector, Heat
(Superseded to KH-12-265-08-S)

$9.49

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-041-02

Gasket, Air Filter

$2.99

$

In Stock, Qty 5

0

7

Cub Cadet KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 14

0

8

Cub Cadet KH-12-853-93

Kit, Carb w/Gskts

Note: [Incl. Ref #6, 7(1), KH-12-454-03-S (Wire Tie) and KH-25-452-20 (Terminal)]

$

$

Not available

9

Cub Cadet KH-12-294-13-S

Connector, Hose, 90°.

$6.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-12-353-07

Line, 90° Fuel
(Superseded to KH-25-111-36-S)

$7.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-25-237-14-S

Clamp, Fuel Line
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

12

Cub Cadet KH-X-728-1

Clip, Tube

$

$

Not available

13

Cub Cadet KH-M-0545010

Screw, Hex Flange, M5 x .8 x 10

$

$

Not available

14

Cub Cadet KH-12-353-11

Line, Metal Fuel

$

$

Not available

15

Cub Cadet KH-12-353-01

Line, Fuel, 1 1/4
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

16

Cub Cadet KH-25-050-07-S

Filter, Fuel

$10.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-25-353-08

Line, Fuel, 5"
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

18

Cub Cadet KH-25-294-09-S

Connector, Straight Hose

$6.49

$

In Stock, only 1 left!

0

19

Cub Cadet KH-12-559-02

Kit, Fuel Pump

Note: (Incl. 9, 20-22)

$

$

Currently unavailable

20

Cub Cadet KH-M-0645020

Screw, Hex Flange, M6 x 1 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

21

Cub Cadet KH-12-112-05

Spacer, Fuel Pump

$

$

Not available

22

Cub Cadet KH-25-041-10

Gasket, Fuel Pump

$

$

Currently unavailable

23

Cub Cadet 723-3066-24

Insulation, Fuel Line

$16.99

$

In Stock, only 3 left!

0

Cub Cadet KH-12-757-02

Kit, Float Assembly

Note: NOT SHOWN

$

$

Not available

Cub Cadet KH-12-757-03

Kit, Carburetor Repair

Note: NOT SHOWN; Includes Gasket, Carburetor Gasket, Air Filter Base Gasket, Fuel Bowl Gasket, Bowl Screw

$35.99

$

In Stock, Qty 7

0

Cub Cadet KH-12-757-08

Kit, Choke Repair

Note: NOT SHOWN; Includes Shaft Assembly, Choke Plate, Choke Bushing, Choke Cap, Choke Lever Screw, Valve (2)

$

$

Not available

Cub Cadet KH-12-757-33

Kit, Solenoid Repair

Note: NOT SHOWN; Includes Gasket, Bowl Screw, Tie, Wire Terminal

$

$

Not available

Cub Cadet KH-12-757-37-S

Kit, Bowl Replacement

Note: NOT SHOWN

$16.99

$

In Stock, only 4 left!

0

Cub Cadet KH-12-755-92-S

Kit, High Altitude

Note: NOT SHOWN

$15.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-153-04-S

O-Ring, Fuel Pump

Note: NOT SHOWN

$2.99

$

In Stock, only 2 left!

0

Cub Cadet KH-M-561010

Screw, Thrd Forming M5 x .8 x 10

Note: NOT SHOWN; Used to Attach Carburetor Ground Lead

$

$

Not available

Cub Cadet KH-X-22-11

Washer, Lock 1/4"

Note: NOT SHOWN; Used to Attach Carburetor Ground Lead

$

$

Not available
