LT 2122 A2 (960110131-00) - Jonsered Lawn Tractor (2006-04) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

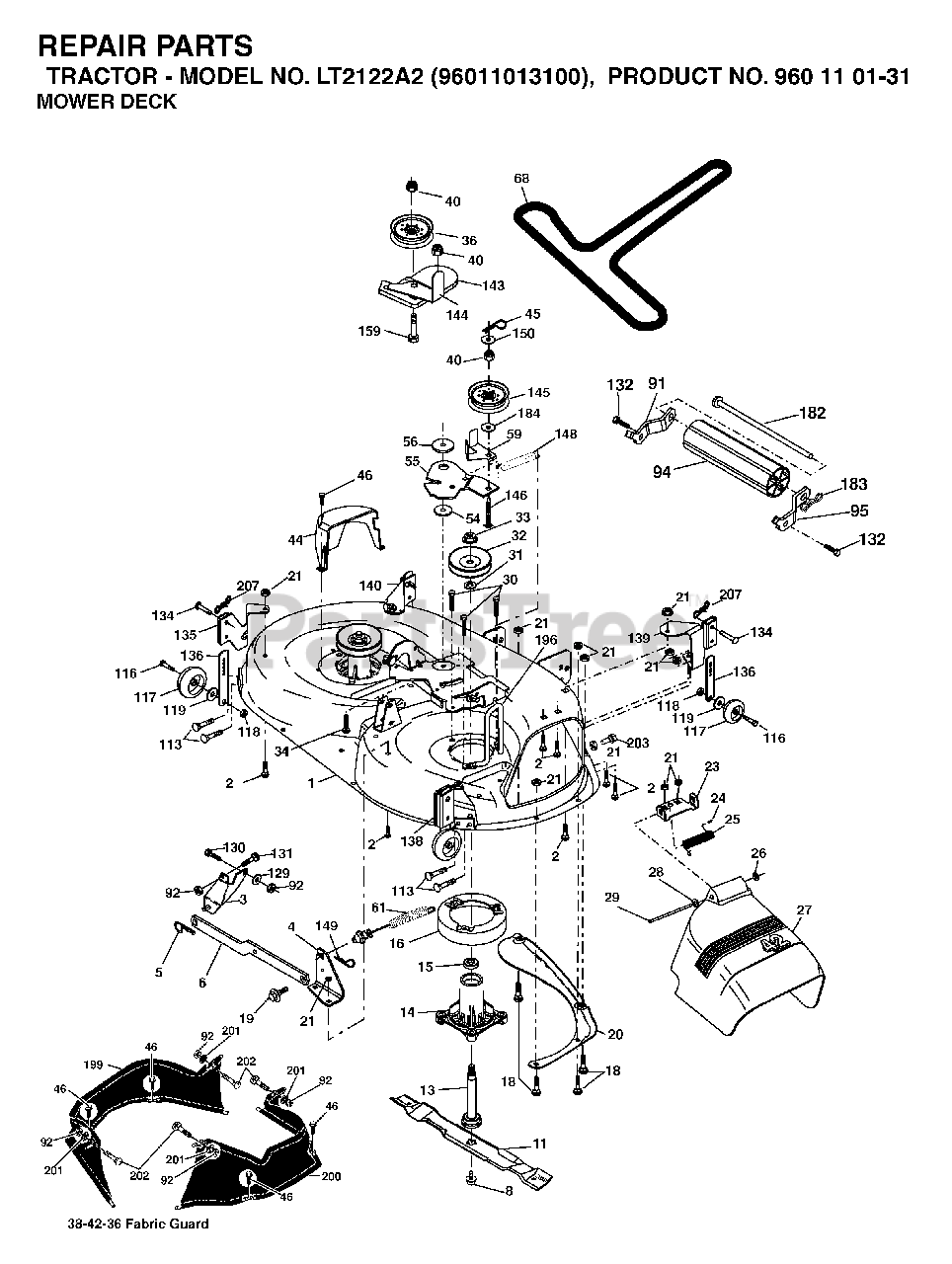

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532182032

MOWER DECK ASSY. 42"
(Superseded to 532179836)

$433.99

$

Usually ships in 3-10 days

0

2

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

4

Jonsered 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

In Stock, only 1 left!

0

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

8

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Jonsered 532138971

42" HI-LIFT BLADE

$20.99

$

In Stock, Qty 19

0

13

Jonsered 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 18

0

14

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 18

0

15

$13.99

$

In Stock, Qty 6

0

16

Jonsered 532174493

STRIPPER, MWR ROUND

$7.49

$

Usually ships in 3-10 days

0

18

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Jonsered 532159770

BAFFLE.VORTEX

$

$

Not available

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 532177563

BRKT, DEFL. MOWER

$

$

Not available

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532123713

SPRING TORSION

$7.99

$

In Stock, only 3 left!

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 532401431

No Description Available
(Superseded to 584465501)

$30.99

$

Usually ships in 3-10 days

0

28

Jonsered 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 5

0

32

Jonsered 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

34

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

40

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Jonsered 532140088

GUARD MANDREL LH BLACK

$34.99

$

In Stock, Qty 10

0

45

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

54

$6.99

$

Usually ships in 3-10 days

0

55

Jonsered 532155046

ARM IDLER 42" MOWER LT/YT

$15.99

$

Usually ships in 3-10 days

0

56

Jonsered 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 2 left!

0

59

Jonsered 532141043

GUARD, BELT

$

$

Not available

61

Jonsered 532174882

SPRING EXT ELEC CLUTCH

$26.99

$

In Stock, only 2 left!

0

68

Jonsered 532180260

No Description Available

$

$

Not available

91

Jonsered 532180532

BRACKET ASM NOSEROLLER LH

$4.99

$

Usually ships in 3-10 days

0

92

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

94

Jonsered 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

95

Jonsered 532180533

BRACKET ASM NOSEROLLER RH

$6.49

$

Usually ships in 3-10 days

0

113

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

116

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Jonsered 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

118

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

129

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

131

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

132

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

134

Jonsered 532156941

RIVET.PIN.HEAD.YELLOW

$

$

Not available

135

Jonsered 532159765

BRACKET ASSY

$15.99

$

Usually ships in 3-10 days

0

136

Jonsered 532155986

BAR.ADJUST.WHEEL.ANTI.SCALP.BL

$20.99

$

In Stock, Qty 9

0

138

Jonsered 532159763

GAUGE WHEEL BRACKET ASSY
(Superseded to 532437046)

$18.99

$

Usually ships in 3-10 days

0

139

$21.99

$

Usually ships in 3-10 days

0

140

Jonsered 532159768

BRACKET ASSY

$24.99

$

Usually ships in 3-10 days

0

143

Jonsered 532157109

BRACKET, ARM IDLER

$6.49

$

Usually ships in 3-10 days

0

144

Jonsered 532158634

KEEPER.BELT.42".CLUTCH.CABLE
(Superseded to 532173441)

$9.99

$

In Stock, only 1 left!

0

145

Jonsered 532165888

PULLEY
(Superseded to 532173437)

$28.99

$

In Stock, only 3 left!

0

146

Jonsered 532171977

BOLT, CARRIAGE IDLER BLACK
(Superseded to 532173443)

$7.49

$

In Stock, Qty 8

0

148

Jonsered 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 9

0

149

Jonsered 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

150

Jonsered 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

159

Jonsered 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

182

Jonsered 532179126

ROD ROLLER NOSE STANDARD

$

$

Not available

183

Jonsered 532194209

PIN.COTTER.7/16.BOW TI

$3.99

$

In Stock, Qty 16

0

184

Jonsered 819131410

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

196

Jonsered 532401119

No Description Available

$

$

Not available

199

Jonsered 532400278

No Description Available

$

$

Not available

200

Jonsered 532403463

No Description Available

$

$

Not available

201

Jonsered 532401220

PUSH.NUT.ROUND.3/8.DIAM

$2.99

$

Usually ships in 3-10 days

0

202

$6.49

$

Usually ships in 3-10 days

0

203

Jonsered 532197262

No Description Available

$

$

Not available

205

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

--

Jonsered 532402782

No Description Available

$

$

Not available

--

Jonsered 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 18

0
