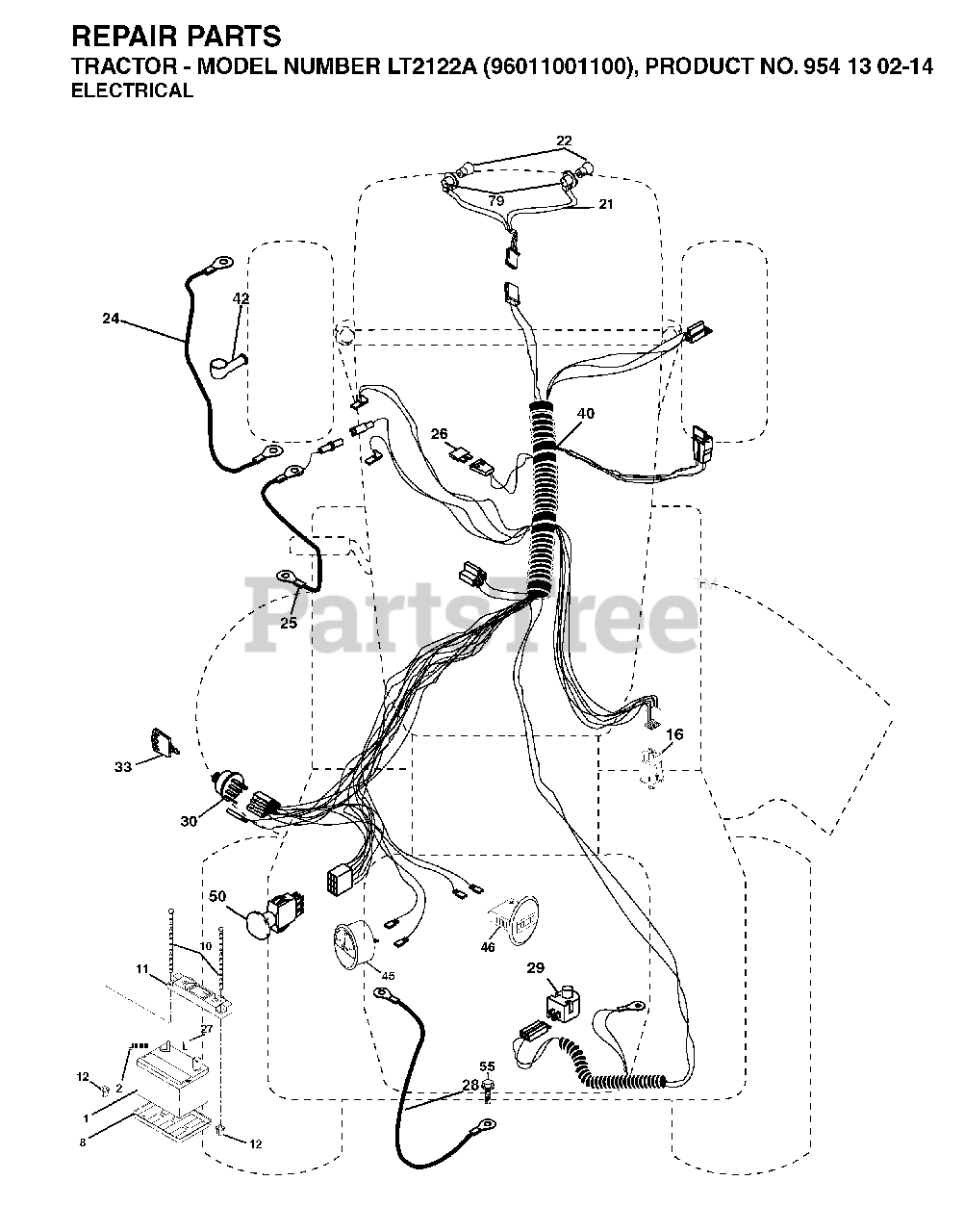

LT 2122 A (960110011-00) - Jonsered Lawn Tractor (2005-01) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Jonsered 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

$194.99

$

In Stock, only 2 left!

0

2

$7.49

$

In Stock, only 1 left!

0

8

Jonsered 532124886

BATTERY TRAY T
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

10

Jonsered 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

11

Jonsered 532150109

BATTERY HOLDDOWN

$

$

Not available

12

Jonsered 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

16

Jonsered 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 5

0

21

Jonsered 532175688

HARNESS.W/LIGHT SOCKET

$44.99

$

Usually ships in 3-10 days

0

22

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532008860

No Description Available

$

$

Not available

25

Jonsered 532186846

No Description Available

$

$

Not available

26

Jonsered 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

27

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Jonsered 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

29

Jonsered 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$20.99

$

In Stock, only 1 left!

0

30

Jonsered 532175566

IGNITION SWITCH

$26.99

$

In Stock, only 4 left!

0

33

Jonsered 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 7

0

40

Jonsered 532188030

No Description Available

$

$

Not available

42

Jonsered 532154336

COVER.TERMINAL.RED

$8.99

$

In Stock, only 2 left!

0

45

$78.99

$

Usually ships in 3-10 days

0

46

Jonsered 532177501

HOURMETER SNAP-IN

$122.99

$

Usually ships in 3-10 days

0

50

Jonsered 532174651

PTO SWITCH
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

55

$6.49

$

Usually ships in 3-10 days

0

79

Jonsered 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0
