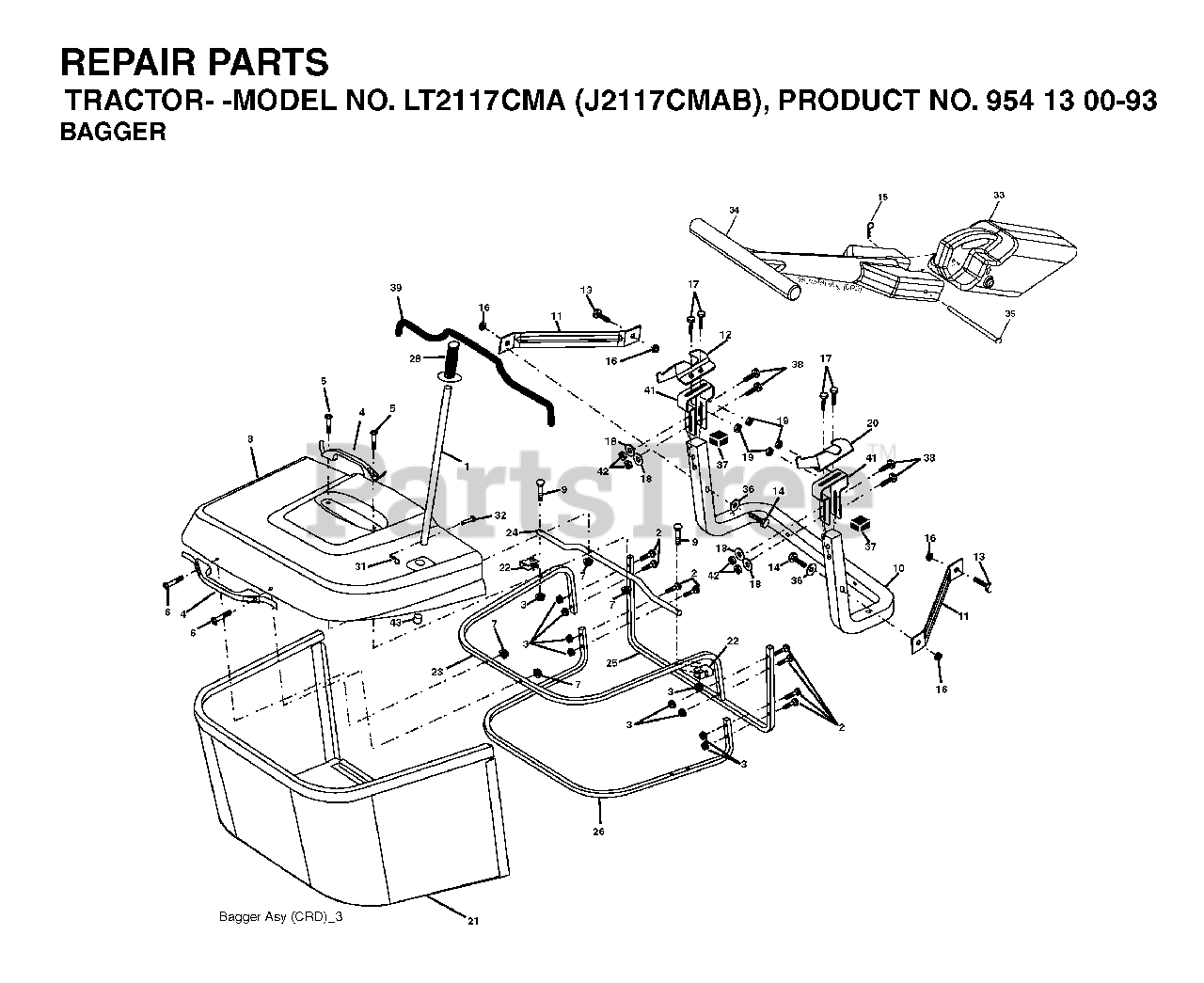

LT 2117 CMA (954130093) - Jonsered Lawn Tractor (2003-05) BAGGER Parts Diagram

Lawn Tractor

BAGGER Parts Diagram

  • Title
1

Jonsered 532165249

TUBE HANDLE
(Superseded to 532170690)

$

$

Not available

2

Jonsered 872140416

No Description Available
(Superseded to 583789801)

$2.99

$

Usually ships in 3-10 days

0

3

Jonsered 532123976

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

$11.99

$

Usually ships in 3-10 days

0

5

Jonsered 874981024

SCREW.PAN.HEAD

$9.99

$

In Stock, Qty 9

0

6

Jonsered 874981032

No Description Available
(Superseded to 532750029)

$6.49

$

Usually ships in 3-10 days

0

$7.99

$

Usually ships in 3-10 days

0

8

Jonsered 532181354

No Description Available

$

$

Not available

9

Jonsered 872140418

No Description Available
(Superseded to 583789901)

$2.99

$

Usually ships in 3-10 days

0

10

Jonsered 532181282

No Description Available
(Superseded to 583110201)

$

$

Not available

11

Jonsered 532165719

BRACKET
(Superseded to 165719)

$11.99

$

Usually ships in 3-10 days

0

12

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

14

Jonsered 874520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.99

$

In Stock, only 2 left!

0

15

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

16

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Jonsered 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

19

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

20

Jonsered 532169684

BRACKET
(Superseded to 532188847)

$2.99

$

Usually ships in 3-10 days

0

21

Jonsered 532180880

GRASS BAG
(Superseded to 532406180)

$157.99

$

Usually ships in 3-10 days

0

22

Jonsered 532165781

BRACKET
(Superseded to 532428236)

$11.99

$

Usually ships in 3-10 days

0

23

Jonsered 532165782

TUBE
(Superseded to 165782)

$30.99

$

Usually ships in 3-10 days

0

24

Jonsered 532165783

TUBE
(Superseded to 165783)

$26.99

$

Usually ships in 3-10 days

0

25

Jonsered 532180124

No Description Available

$

$

Not available

26

Jonsered 532165785

TUBE
(Superseded to 165785)

$27.99

$

Usually ships in 3-10 days

0

28

Jonsered 532165787

GRIP.HANDLE.BLACK

$6.99

$

In Stock, only 2 left!

0

31

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

32

Jonsered 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

33

Jonsered 532169380

MULCH PLUG, CTH150
(Superseded to 532428683)

$48.99

$

Usually ships in 3-10 days

0

34

$60.99

$

Usually ships in 3-10 days

0

35

Jonsered 532165572

PIN
(Superseded to 574988601)

$

$

Not available

36

Jonsered 819132016

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

37

Jonsered 532175401

No Description Available

$

$

Not available

38

Jonsered 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

39

Jonsered 532180985

No Description Available
(Superseded to 532416257)

$36.99

$

Usually ships in 3-10 days

0

41

Jonsered 532169683

BRKT, BAGGER
(Superseded to 532432755)

$9.49

$

Usually ships in 3-10 days

0

42

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

43

Jonsered 532174083

PLUG, TUBING END

$7.49

$

Usually ships in 3-10 days

0
