LT 2117 A (954130212) - Jonsered Lawn Tractor (2004-06) ELECTRICAL Parts Diagram

Lawn Tractor

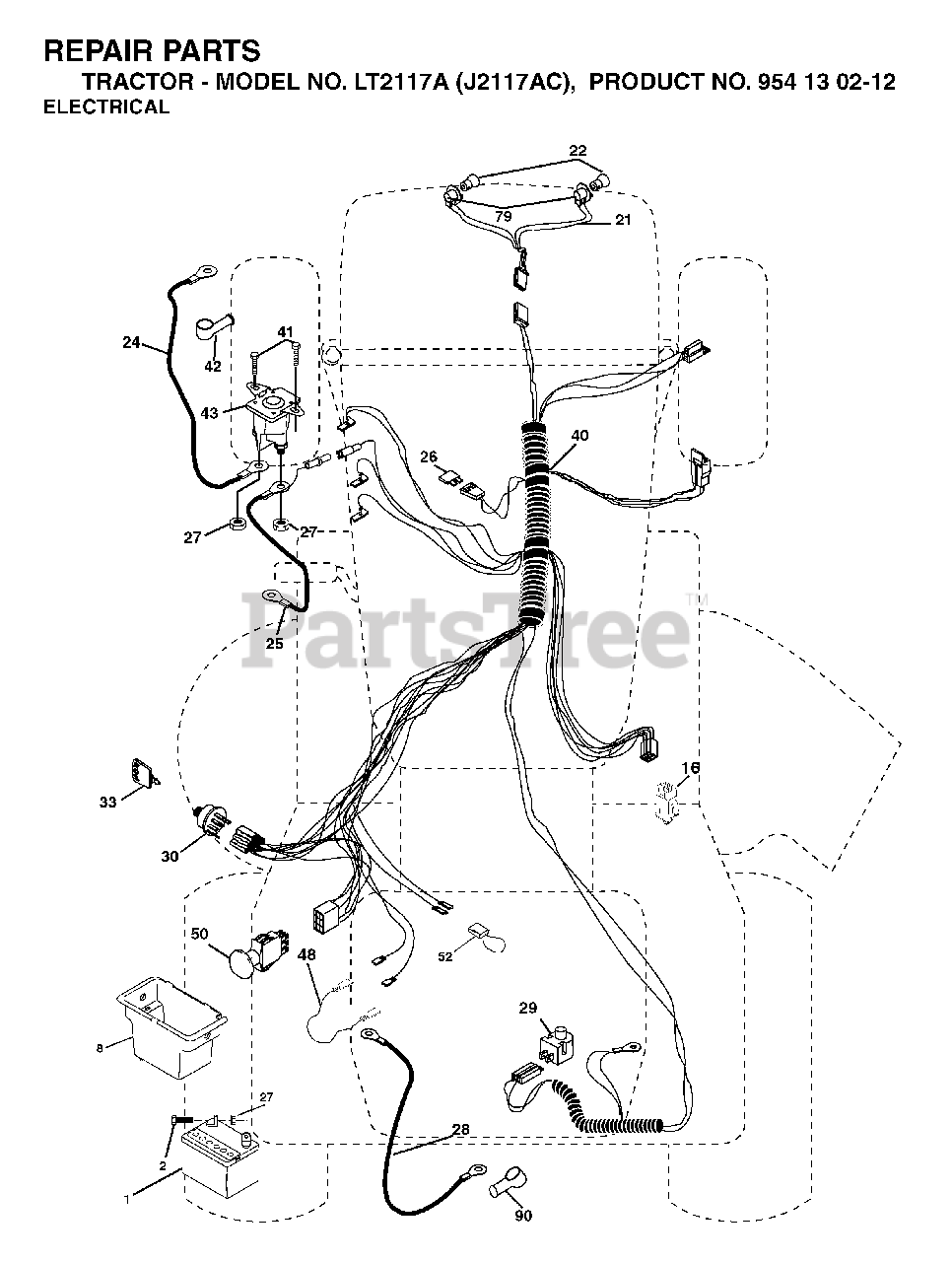

ELECTRICAL Parts Diagram

  • Title
1

Jonsered 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

$194.99

$

In Stock, only 2 left!

0

2

$7.49

$

In Stock, only 1 left!

0

8

Jonsered 532176689

BOX.BATTERY.FENDER

$

$

Not available

16

Jonsered 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 5

0

21

Jonsered 532175688

HARNESS.W/LIGHT SOCKET

$44.99

$

Usually ships in 3-10 days

0

22

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 532146147

CABLE BATTERY

$34.99

$

Usually ships in 3-10 days

0

26

Jonsered 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

27

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Jonsered 532124773

CABLE T
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

29

Jonsered 532121305

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

30

Jonsered 532175566

IGNITION SWITCH

$26.99

$

In Stock, only 4 left!

0

33

Jonsered 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 7

0

40

Jonsered 532188031

No Description Available

$

$

Not available

41

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Jonsered 532178861

SOLENOID
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

48

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 532174651

PTO SWITCH
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

52

Jonsered 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

79

Jonsered 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

81

Jonsered 532109748

RELAY.ASSY.T

$30.99

$

In Stock, only 1 left!

0

90

Jonsered 532180449

COVER TERMINAL
(Superseded to 532435395)

$6.49

$

In Stock, only 2 left!

0
