LT 2117 A (954130089) - Jonsered Lawn Tractor (2003-01) ENGINE Parts Diagram

Lawn Tractor

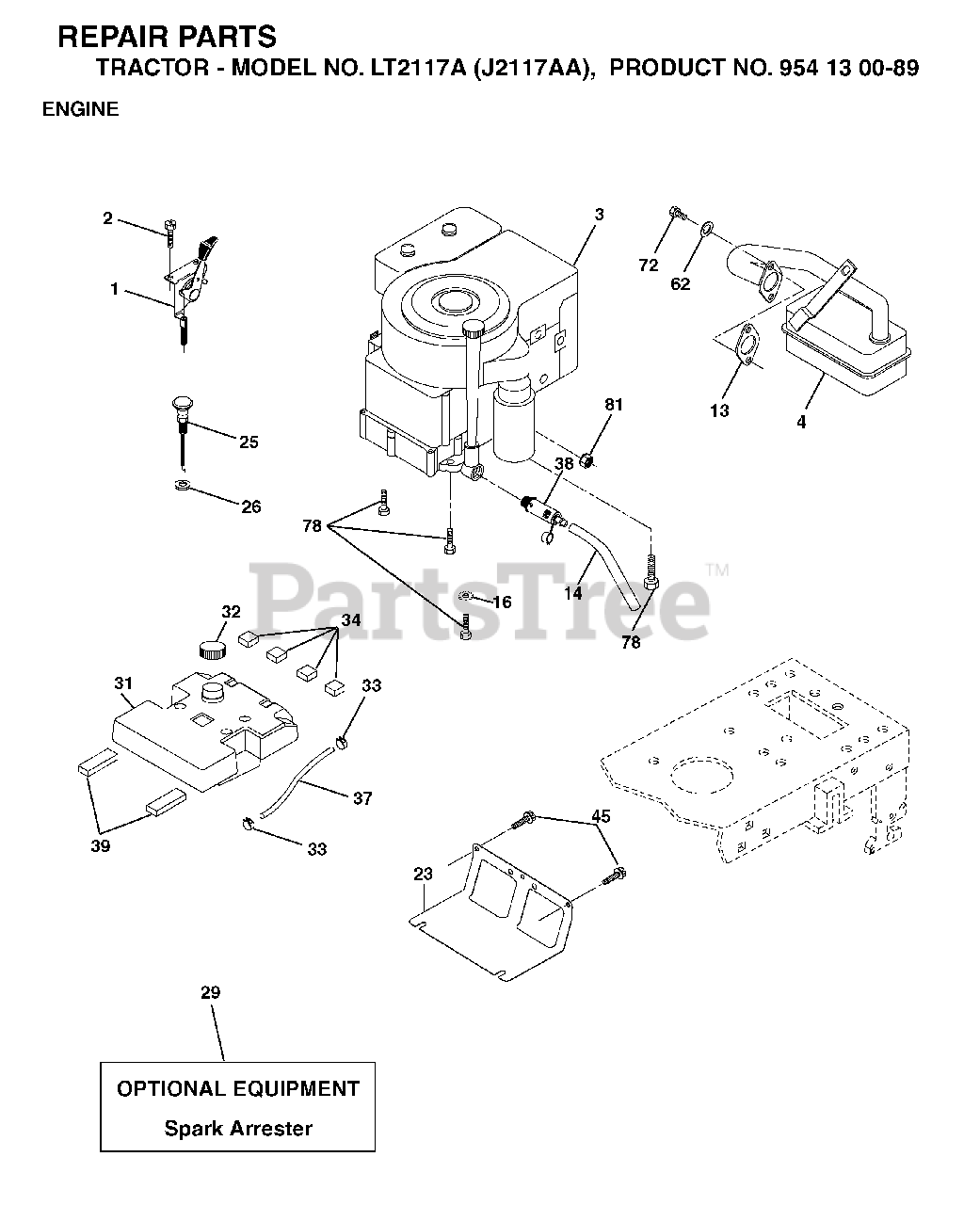

ENGINE Parts Diagram

  • Title
1

Jonsered 532176636

CONTROL.TH/CK.C.BLACK

$37.99

$

Usually ships in 3-10 days

0

2

Jonsered 532171875

SCREW
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

4

$45.99

$

In Stock, only 3 left!

0

13

Jonsered 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 5

0

16

Jonsered 811050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

23

Jonsered 532169837

SHEILD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 532183898

No Description Available

$

$

Not available

26

Jonsered 873920600

NUT KEPS 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

31

Jonsered 532157103

TANK.FUEL(3.5.GAL)

$

$

Not available

32

Jonsered 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

34

Jonsered 532106082

PAD-SPACER LT

$

$

Not available

37

Jonsered 532142158

No Description Available
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

38

Jonsered 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

39

Jonsered 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

45

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

62

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

72

Jonsered 871070512

SCREW
(Superseded to 532192334)

$

$

Not available

78

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

81

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$
