LT 2115 CMA (960610010-00) - Jonsered Lawn Tractor (2005-01) ENGINE Parts Diagram

Lawn Tractor

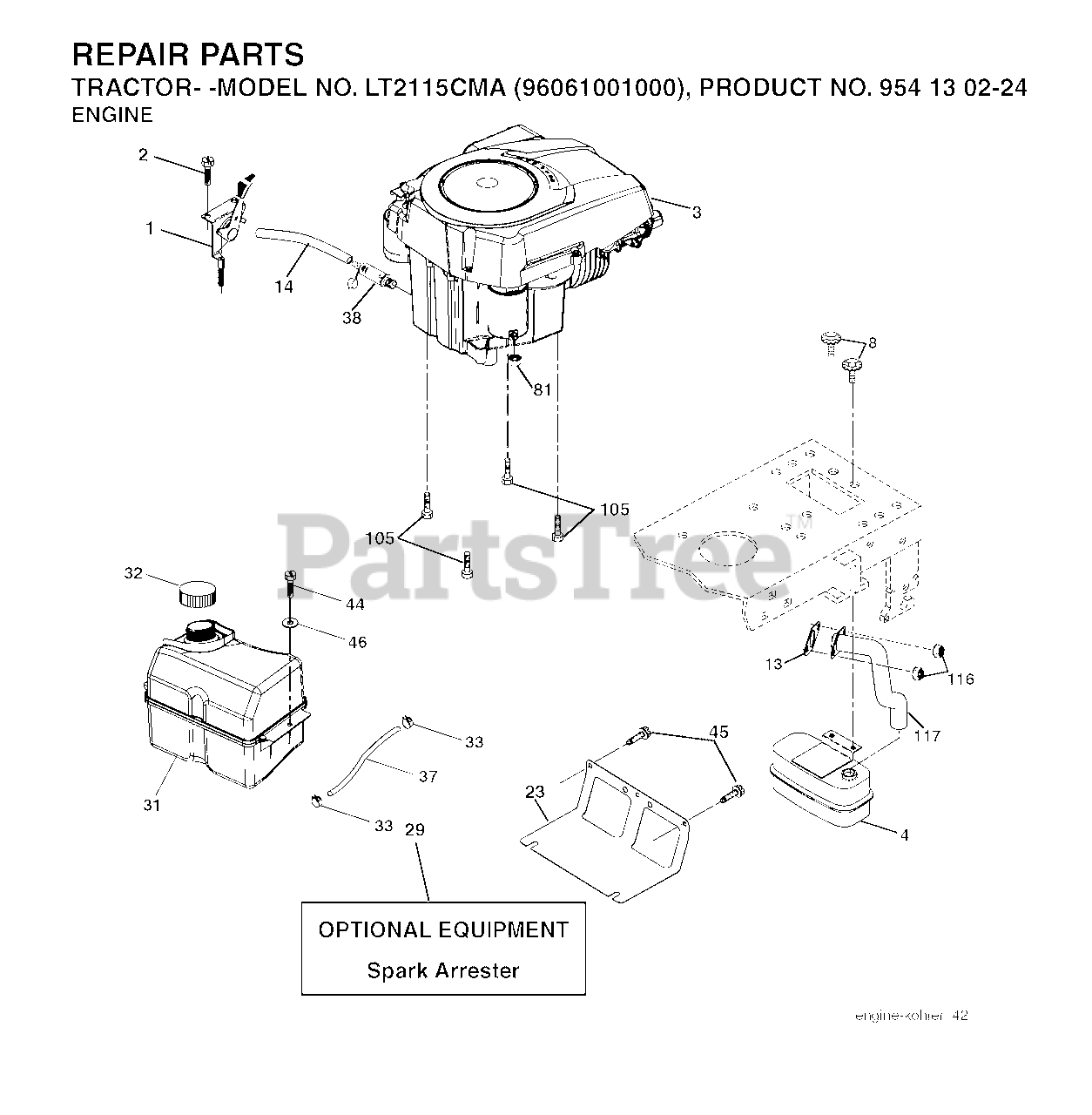

ENGINE Parts Diagram

  • Title

1

Jonsered 532170805

CONTROL.THROTTLE.LT/YT

$

$

Not available

2

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

4

Jonsered 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$45.99

$

In Stock, only 2 left!

0

8

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

13

Jonsered 532185909

GASKET ENGINE

$4.99

$

Usually ships in 3-10 days

0

14

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

23

Jonsered 532169837

SHEILD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

31

Jonsered 532185534

TANK FUEL
(Superseded to 532183361)

$87.99

$

In Stock, only 1 left!

0

32

Jonsered 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

37

Jonsered 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

44

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

45

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

46

Jonsered 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

81

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

105

Jonsered 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

116

Jonsered 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 1 left!

0

117

Jonsered 532188654

TUBE EXHAUST
(Superseded to 583955301)

$34.99

$

In Stock, only 2 left!

0
