LT 2115 A (960110182-00) - Jonsered Lawn Tractor (2006-03) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

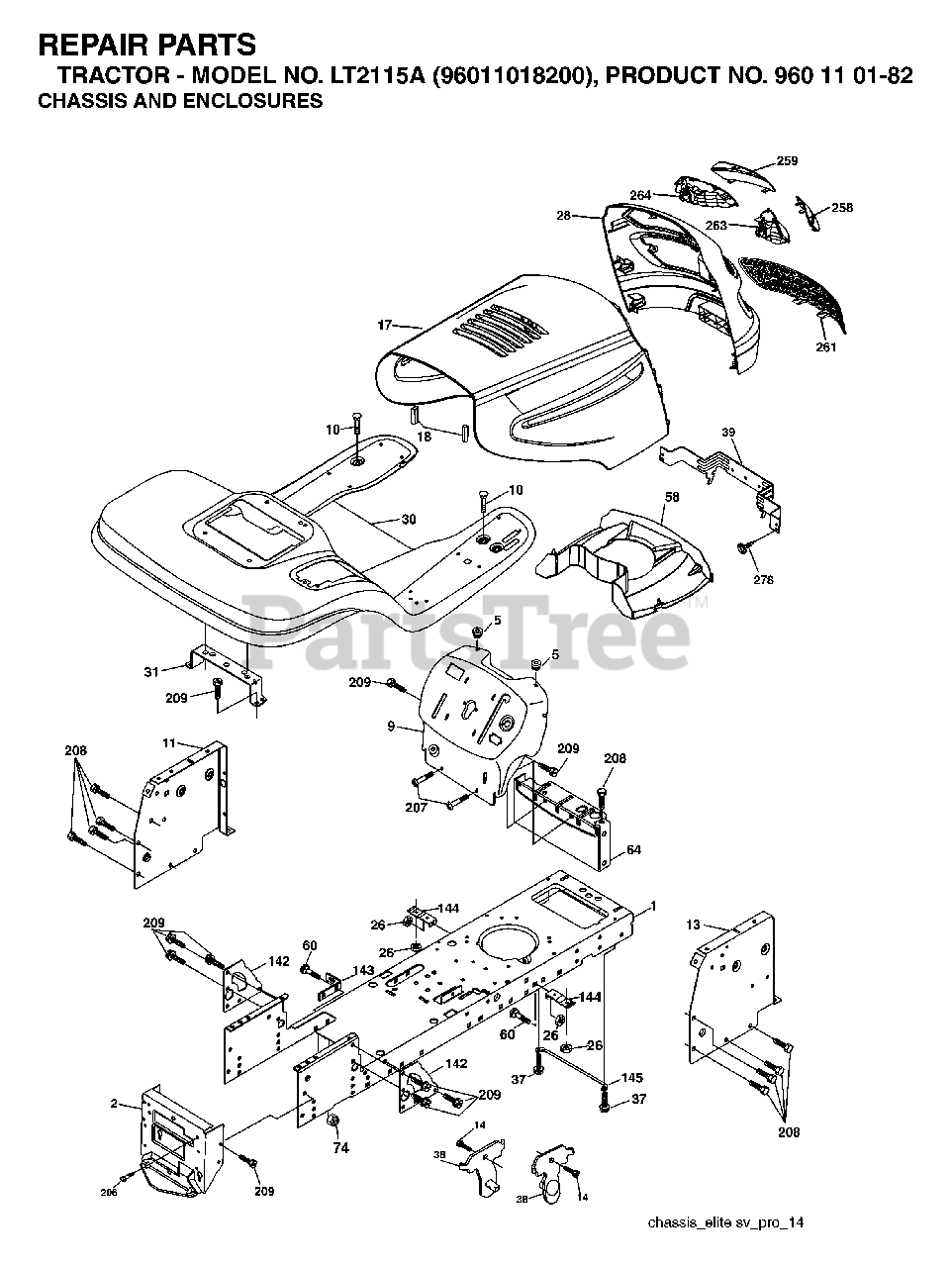

CHASSIS ENCLOSURES Parts Diagram

  • Title
1

Jonsered 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

2

Jonsered 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

5

Jonsered 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

9

Jonsered 532194822

No Description Available

$

$

Not available

10

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532174996

PANEL.DASH.LH.LTX
(Superseded to 174996)

$

$

Not available

13

Jonsered 532186952

No Description Available
(Superseded to 532186946)

$28.99

$

Usually ships in 3-10 days

0

14

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532194757

No Description Available

$

$

Not available

18

Jonsered 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

26

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532192915

No Description Available

$

$

Not available

30

Jonsered 532195296

No Description Available
(Superseded to 532406179)

$133.99

$

Usually ships in 3-10 days

0

31

$17.99

$

Usually ships in 3-10 days

0

37

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

58

Jonsered 532184322

No Description Available
(Superseded to 583133101)

$34.99

$

Usually ships in 3-10 days

0

$

$

Not available

64

Jonsered 532154798

DASH LOWER
(Superseded to 154798)

$15.99

$

Usually ships in 3-10 days

0

74

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

142

Jonsered 532175702

PLATE REINFORCEMENT

$9.49

$

Usually ships in 3-10 days

0

143

Jonsered 532186689

BRACKET, SWAYBAR CHASSIS

$6.99

$

In Stock, only 2 left!

0

144

Jonsered 532175582

BRKT, FOOT REST

$7.49

$

Usually ships in 3-10 days

0

145

Jonsered 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

206

Jonsered 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 5

0

207

Jonsered 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

208

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

209

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

258

Jonsered 532189755

No Description Available
(Superseded to 183835599)

$14.99

$

Usually ships in 3-10 days

0

259

Jonsered 532189754

No Description Available
(Superseded to 183834599)

$

$

Not available

261

Jonsered 532189753

No Description Available

$

$

Not available

263

Jonsered 532183833

BEZEL GRILL RH

$

$

Not available

264

Jonsered 532183832

BEZEL GRILL LH

$

$

Not available

278

Jonsered 532191611

SCREW
(Superseded to 532416358)

$3.99

$

In Stock, Qty 15

0

--

Jonsered 532005479

PLUG BUTTON T

$5.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0
