LT 2115 (954130210) - Jonsered Lawn Tractor (2004-09) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

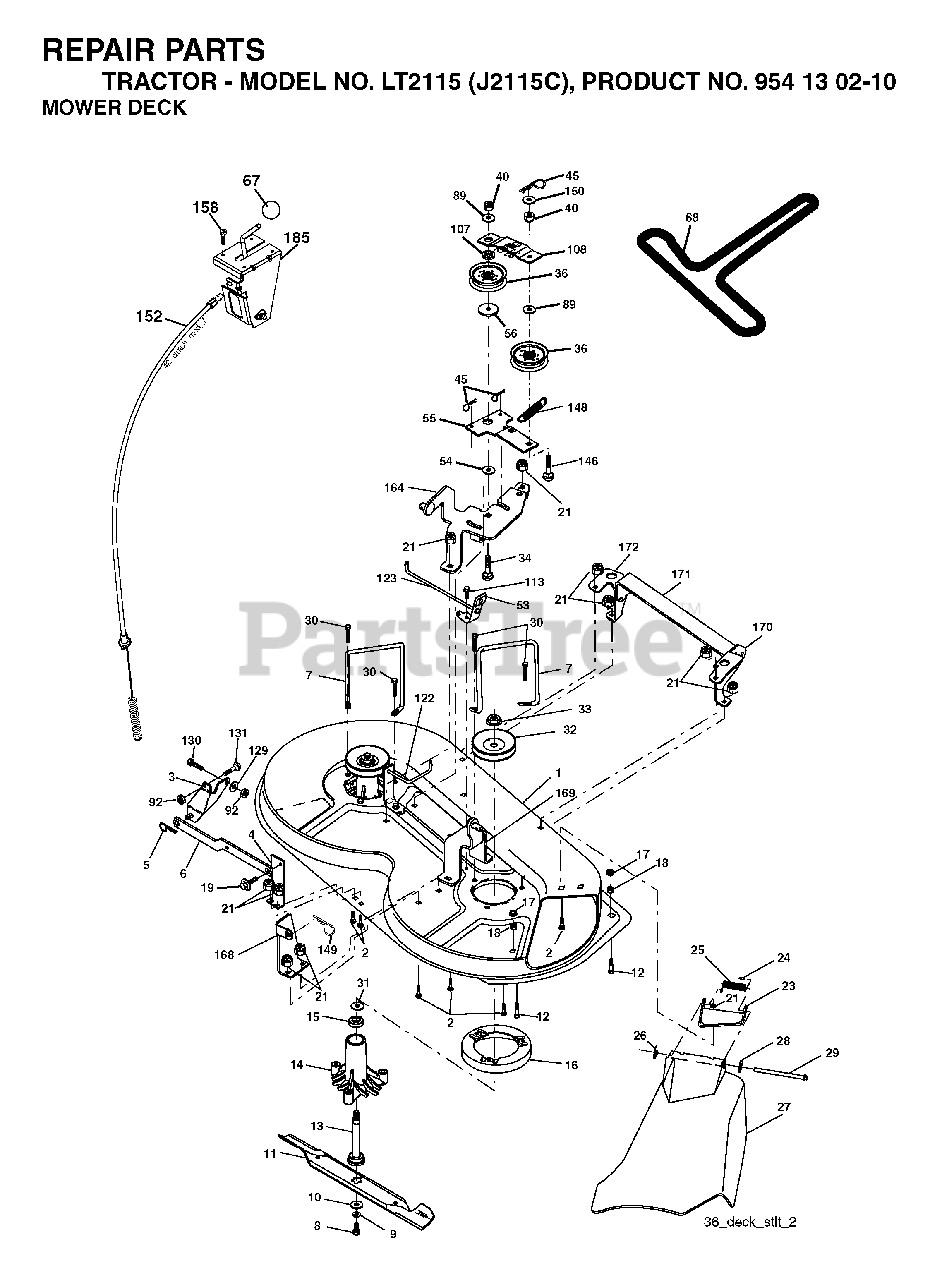

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532174595

No Description Available

$

$

Not available

2

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

4

Jonsered 532175654

No Description Available

$

$

Not available

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

7

Jonsered 532140608

KEEPER LH

$27.99

$

Usually ships in 3-10 days

0

8

Jonsered 532850857

BLADE BOLT

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Jonsered 532140296

WASHER.BLADE

$6.99

$

In Stock, only 1 left!

0

11

Jonsered 532138496

BLADE, HI-LIFT 36" PREMIUM

$26.99

$

Usually ships in 3-10 days

0

13

Jonsered 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

Usually ships in 3-10 days

0

14

Jonsered 532128774

HSG MANDREL

$34.99

$

In Stock, only 1 left!

0

15

$13.99

$

In Stock, Qty 6

0

16

Jonsered 532174493

STRIPPER, MWR ROUND

$7.49

$

Usually ships in 3-10 days

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$

$

Not available

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 532136631

BRACKET ASM DEFLECTOR
(Superseded to 136631)

$7.49

$

Usually ships in 3-10 days

0

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532123713

SPRING TORSION

$7.99

$

In Stock, only 3 left!

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 532176162

No Description Available

$8.99

$

Usually ships in 3-10 days

0

28

Jonsered 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Jonsered 532121980

HINGE ROD
(Superseded to 583383801)

$

$

Not available

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 5

0

32

Jonsered 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

33

Jonsered 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 532400234)

$4.99

$

In Stock, Qty 18

0

34

Jonsered 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

36

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

40

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 8

0

45

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

53

Jonsered 532130840

BRAKE ASSEMBLY

$12.99

$

Usually ships in 3-10 days

0

54

$6.99

$

Usually ships in 3-10 days

0

55

Jonsered 532133840

IDLER ARM

$

$

Not available

56

Jonsered 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 2 left!

0

67

Jonsered 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

68

Jonsered 532180213

V-BELT.MOWER.

$79.99

$

In Stock, only 1 left!

0

89

Jonsered 819131311

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

92

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

107

Jonsered 532133502

SPACER.IDLER.ARM

$6.49

$

In Stock, only 1 left!

0

108

Jonsered 532133503

STIFFENER.IDLER.ARM

$6.49

$

Usually ships in 3-10 days

0

113

$6.49

$

Usually ships in 3-10 days

0

122

Jonsered 532174505

No Description Available

$

$

Not available

123

Jonsered 532174504

No Description Available

$

$

Not available

129

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

131

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

146

Jonsered 532165891

BOLT, CARRIAGE IDLER
(Superseded to 532173443)

$7.49

$

In Stock, Qty 8

0

148

Jonsered 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 9

0

149

Jonsered 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

150

Jonsered 819091216

WASHER PM
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

152

Jonsered 532176079

No Description Available

$

$

Not available

158

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

164

Jonsered 532174976

No Description Available

$

$

Not available

168

Jonsered 532172377

No Description Available

$

$

Not available

169

Jonsered 532174977

No Description Available

$

$

Not available

170

Jonsered 532172359

No Description Available

$

$

Not available

171

Jonsered 532165237

BRACE
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

172

Jonsered 532172355

No Description Available

$

$

Not available

185

Jonsered 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

In Stock, only 1 left!

0

--

Jonsered 532130794

MANDREL ASM, LH 5PT STAR

$56.99

$

In Stock, Qty 5

0

--

Jonsered 532181376

No Description Available

$

$

Not available
