LT 2114 (960110293-01) - Jonsered Lawn Tractor (2011-02) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

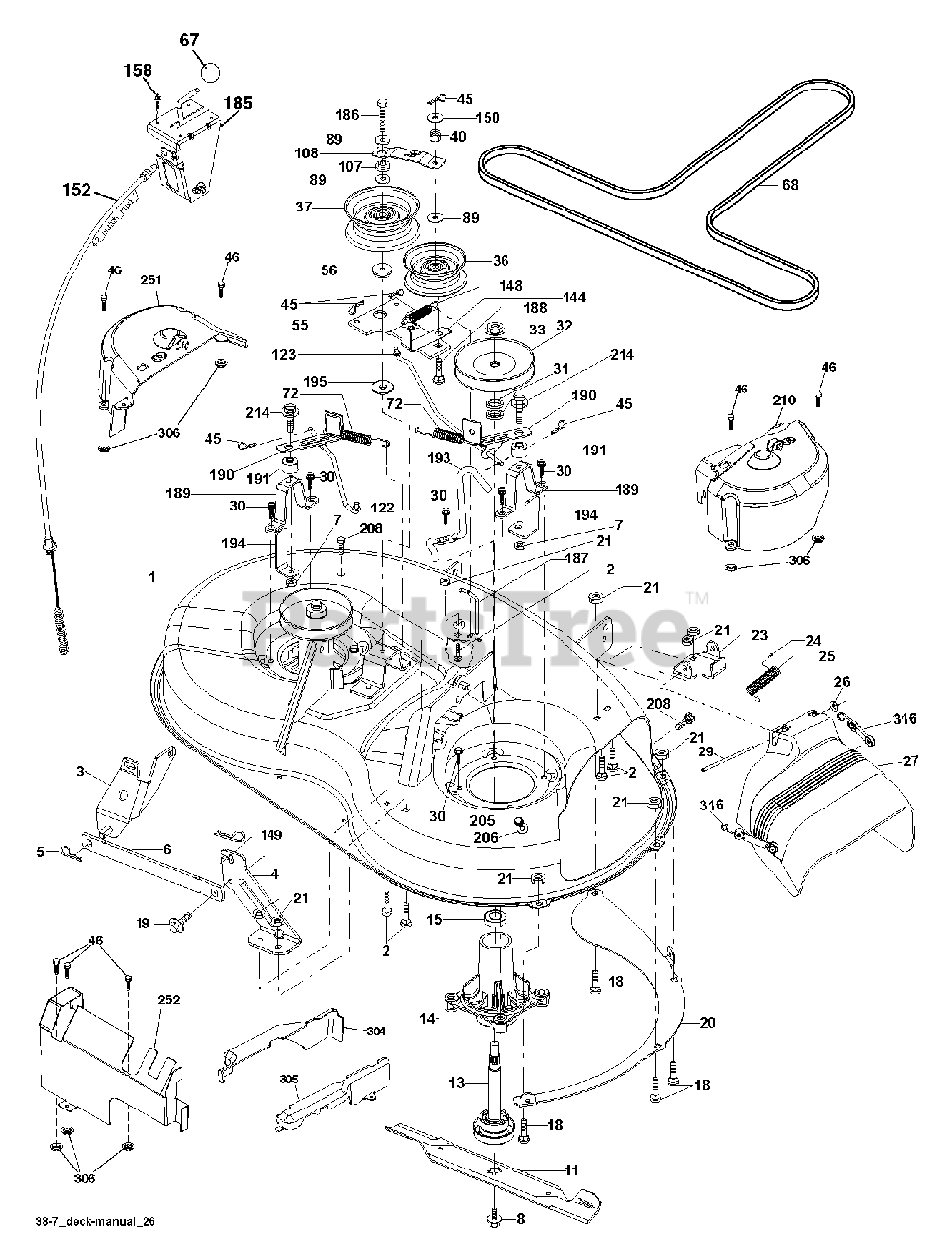

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532192556

DECK.WELDMENT.38"2005

$338.99

$

Usually ships in 3-10 days

0

2

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

4

Jonsered 532192568

BRACKET DECK SWAY BAR 38"/42"

$10.99

$

Usually ships in 3-10 days

0

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

7

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

8

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Jonsered 532193957

BLADE 38" PREMIUM
(Superseded to 581116302)

$17.99

$

In Stock, only 1 left!

0

13

Jonsered 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

14

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

$13.99

$

In Stock, Qty 11

0

18

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Jonsered 532400095

BAFFLE VORTEX

$18.99

$

Usually ships in 3-10 days

0

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 15

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 532401472

No Description Available
(Superseded to 584465501)

$30.99

$

Usually ships in 3-10 days

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

32

Jonsered 532153532

PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

36

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Jonsered 532193198

PULLEY.IDLER.FLAT.UNPLATED
(Superseded to 596481402)

$26.99

$

In Stock, only 1 left!

0

40

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

45

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

$6.49

$

Usually ships in 3-10 days

0

55

Jonsered 532133840

IDLER ARM

$

$

Not available

56

Jonsered 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

67

Jonsered 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

68

Jonsered 532193214

V-BELT.MOWER.38"2005+

$51.99

$

Usually ships in 3-10 days

0

72

Jonsered 532193216

SPRING.BRAKE.RETURN.38"

$7.49

$

In Stock, only 1 left!

0

89

Jonsered 819131311

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

107

Jonsered 532133502

SPACER.IDLER.ARM

$6.49

$

In Stock, only 1 left!

0

108

Jonsered 532133503

STIFFENER.IDLER.ARM

$6.49

$

Usually ships in 3-10 days

0

122

Jonsered 532410189

ROD, BRAKE LH LINK

$17.99

$

Usually ships in 3-10 days

0

123

Jonsered 532410190

LINK.BRAKE.38"RIGHT

$18.99

$

Usually ships in 3-10 days

0

144

Jonsered 532193414

KEEPER BELT

$6.49

$

In Stock, only 1 left!

0

148

Jonsered 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 7

0

149

Jonsered 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

150

Jonsered 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 2 left!

0

152

Jonsered 532193235

CABLE.CLUTCH.38".SERVICE

$51.99

$

In Stock, only 2 left!

0

158

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

185

Jonsered 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

In Stock, only 1 left!

0

186

Jonsered 817490644

SCREW.HXWSH.3/8

$

$

Not available

187

Jonsered 532193412

KEEPER BELT

$7.99

$

Usually ships in 3-10 days

0

188

Jonsered 532165891

BOLT, CARRIAGE IDLER
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

189

Jonsered 532192559

STAND, BRAKE
(Superseded to 532192558)

$26.99

$

Usually ships in 3-10 days

0

190

Jonsered 532192560

ARM, BRAKE
(Superseded to 532192558)

$26.99

$

Usually ships in 3-10 days

0

191

Jonsered 532192561

SPACER, BRAKE

$3.49

$

Usually ships in 3-10 days

0

193

Jonsered 532193413

KEEPER BELT RH MANDREL

$11.99

$

In Stock, only 1 left!

0

194

Jonsered 532194105

GUARD BRAKE
(Superseded to 532192558)

$26.99

$

Usually ships in 3-10 days

0

195

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

205

Jonsered 817490416

SCREW
(Superseded to 817640416)

$

$

Not available

206

$6.49

$

Usually ships in 3-10 days

0

208

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

210

Jonsered 532432357

No Description Available

$

$

Not available

214

Jonsered 532193782

BOLT/WASHER ASM 5/16-18

$7.49

$

Usually ships in 3-10 days

0

251

Jonsered 532432356

No Description Available

$

$

Not available

252

Jonsered 532430250

No Description Available

$

$

Not available

304

Jonsered 532432358

No Description Available

$

$

Not available

305

Jonsered 532432359

No Description Available

$

$

Not available

306

Jonsered 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

316

Jonsered 532436087

No Description Available
(Superseded to 583508201)

$14.99

$

Usually ships in 3-10 days

0

--

Jonsered 532192558

BRAKE.ASSY.38"2005.+

$26.99

$

Usually ships in 3-10 days

0

--

Jonsered 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

--

Jonsered 532432031

No Description Available

$

$

Not available
