LT 2113 CM (960610225-00) - Jonsered Lawn Tractor (2007-10) ENGINE Parts Diagram

Lawn Tractor

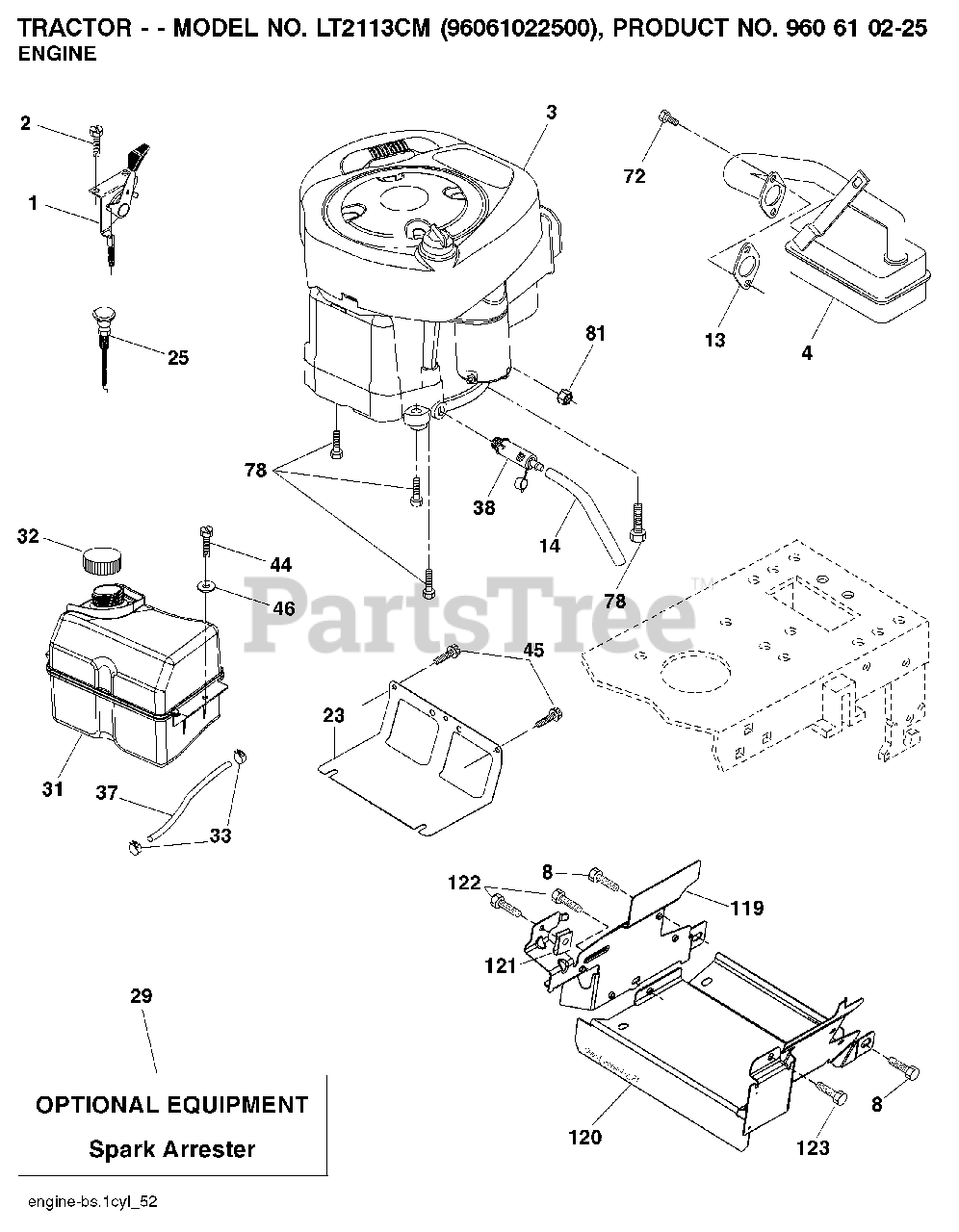

ENGINE Parts Diagram

  • Title
1

Jonsered 532170551

CONTROL TH/CH FLAG

$37.99

$

Usually ships in 3-10 days

0

2

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

4

$45.99

$

In Stock, only 3 left!

0

8

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

13

Jonsered 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

23

Jonsered 532169837

SHEILD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 532190695

No Description Available

$2.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

31

Jonsered 532185534

TANK FUEL
(Superseded to 532183361)

$87.99

$

In Stock, only 1 left!

0

32

Jonsered 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

37

Jonsered 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

44

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

45

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

46

$6.49

$

Usually ships in 3-10 days

0

72

Jonsered 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

78

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

81

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

119

Jonsered 532199768

No Description Available
(Superseded to 583254301)

$21.99

$

Usually ships in 3-10 days

0

120

Jonsered 532199767

No Description Available
(Superseded to 583254201)

$36.99

$

Usually ships in 3-10 days

0

121

$4.99

$

In Stock, only 3 left!

0

122

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

123

Jonsered 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0
