LT 2113 CM (960610224-04) - Jonsered Lawn Tractor (2010-03) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

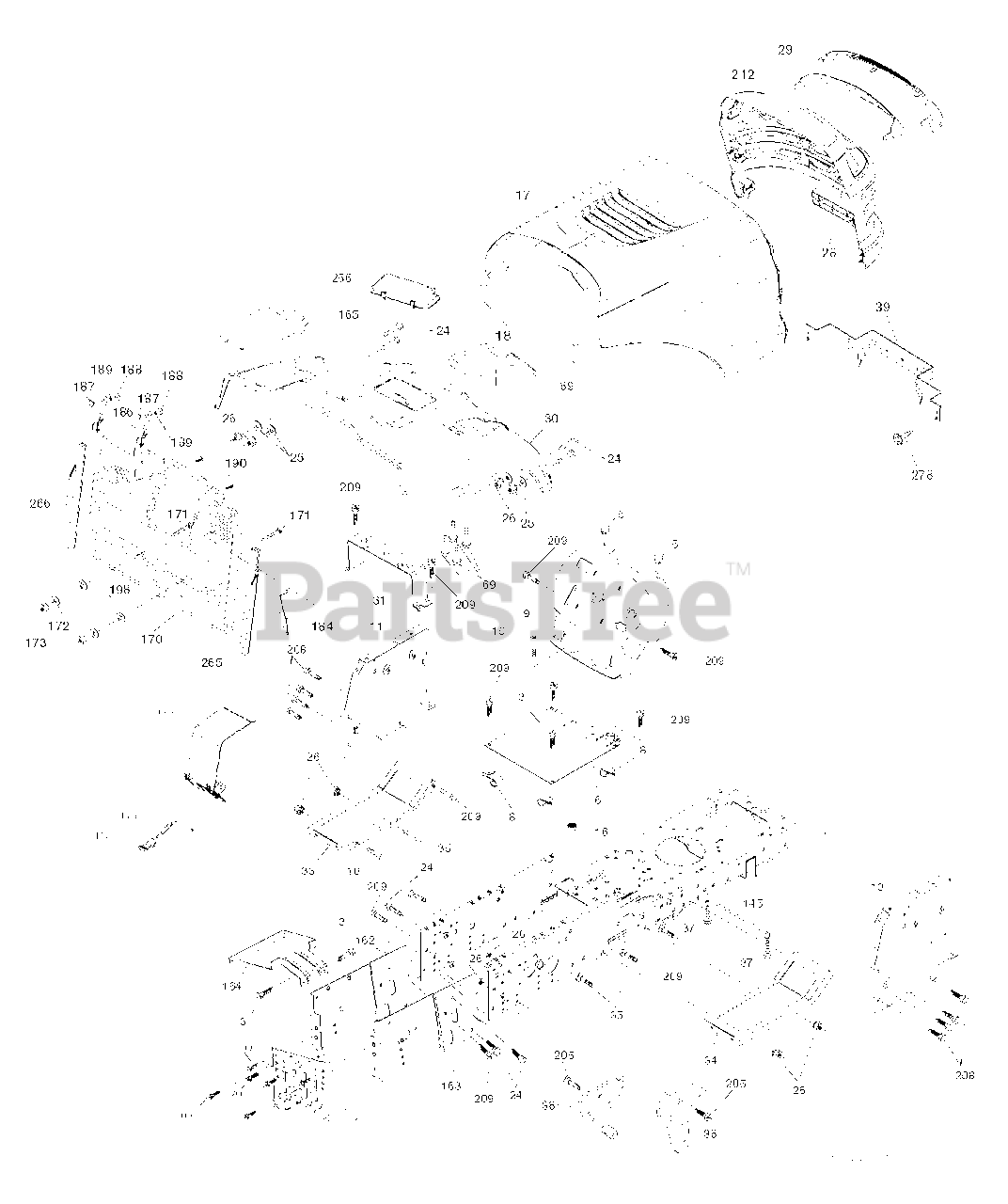

CHASSIS ENCLOSURES Parts Diagram

  • Title
1

Jonsered 532174620

CHASSIS
(Superseded to 174620)

$136.99

$

Usually ships in 3-10 days

0

2

Jonsered 532180384

No Description Available
(Superseded to 583101001)

$

$

Not available

3

Jonsered 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

5

Jonsered 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

6

Jonsered 532184419

No Description Available
(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

8

Jonsered 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 532194688

No Description Available
(Superseded to 532194672)

$28.99

$

Usually ships in 3-10 days

0

10

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532174996

PANEL.DASH.LH.LTX
(Superseded to 174996)

$

$

Not available

13

Jonsered 532175255

PANEL DASH RH

$

$

Not available

$

$

Not available

16

Jonsered 873510500

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Jonsered 532186707

No Description Available

$54.99

$

Usually ships in 3-10 days

0

18

Jonsered 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

$6.49

$

Usually ships in 3-10 days

0

25

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532186706

No Description Available
(Superseded to 532441532)

$96.99

$

Usually ships in 3-10 days

0

29

Jonsered 532185846

No Description Available
(Superseded to 532185741)

$20.99

$

Usually ships in 3-10 days

0

30

Jonsered 532197344

No Description Available
(Superseded to 532441530)

$122.99

$

Usually ships in 3-10 days

0

31

Jonsered 532165156

BRACKET SUPPORT FENDER
(Superseded to 165156)

$

$

Not available

33

Jonsered 532181193

No Description Available
(Superseded to 532182508)

$

$

Not available

34

Jonsered 532181194

No Description Available

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

37

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 532181748

No Description Available
(Superseded to 583117401)

$11.99

$

Usually ships in 3-10 days

0

39

Jonsered 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

69

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

89

Jonsered 532197339

No Description Available

$14.99

$

Usually ships in 3-10 days

0

145

Jonsered 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

162

Jonsered 532180382

No Description Available
(Superseded to 583100801)

$47.99

$

Usually ships in 3-10 days

0

163

Jonsered 532180383

No Description Available
(Superseded to 583100901)

$42.99

$

Usually ships in 3-10 days

0

164

Jonsered 532165605

SUPPORT
(Superseded to 165605)

$

$

Not available

165

Jonsered 532181356

No Description Available

$11.99

$

Usually ships in 3-10 days

0

170

Jonsered 532199488

No Description Available

$

$

Not available

171

Jonsered 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

172

Jonsered 819132016

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

173

$6.49

$

Usually ships in 3-10 days

0

175

Jonsered 532188203

No Description Available
(Superseded to 583707801)

$24.99

$

Usually ships in 3-10 days

0

179

Jonsered 532188202

No Description Available
(Superseded to 583170601)

$27.99

$

Usually ships in 3-10 days

0

184

Jonsered 532174662

No Description Available

$5.99

$

Usually ships in 3-10 days

0

185

Jonsered 532181101

No Description Available

$

$

Not available

186

Jonsered 532160793

LATCH ASSY

$

$

Not available

187

Jonsered 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

188

$4.99

$

Usually ships in 3-10 days

0

189

Jonsered 810071000

LOCKWASHER

$4.99

$

In Stock, Qty 11

0

190

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

205

$6.49

$

Usually ships in 3-10 days

0

207

Jonsered 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

208

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

209

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

212

Jonsered 532183550

No Description Available
(Superseded to 583126601)

$12.99

$

Usually ships in 3-10 days

0

256

Jonsered 532181361

No Description Available

$3.99

$

Usually ships in 3-10 days

0

265

Jonsered 532185704

No Description Available
(Superseded to 583146701)

$21.99

$

Usually ships in 3-10 days

0

266

Jonsered 532185703

No Description Available
(Superseded to 583146601)

$21.99

$

Usually ships in 3-10 days

0

278

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0
