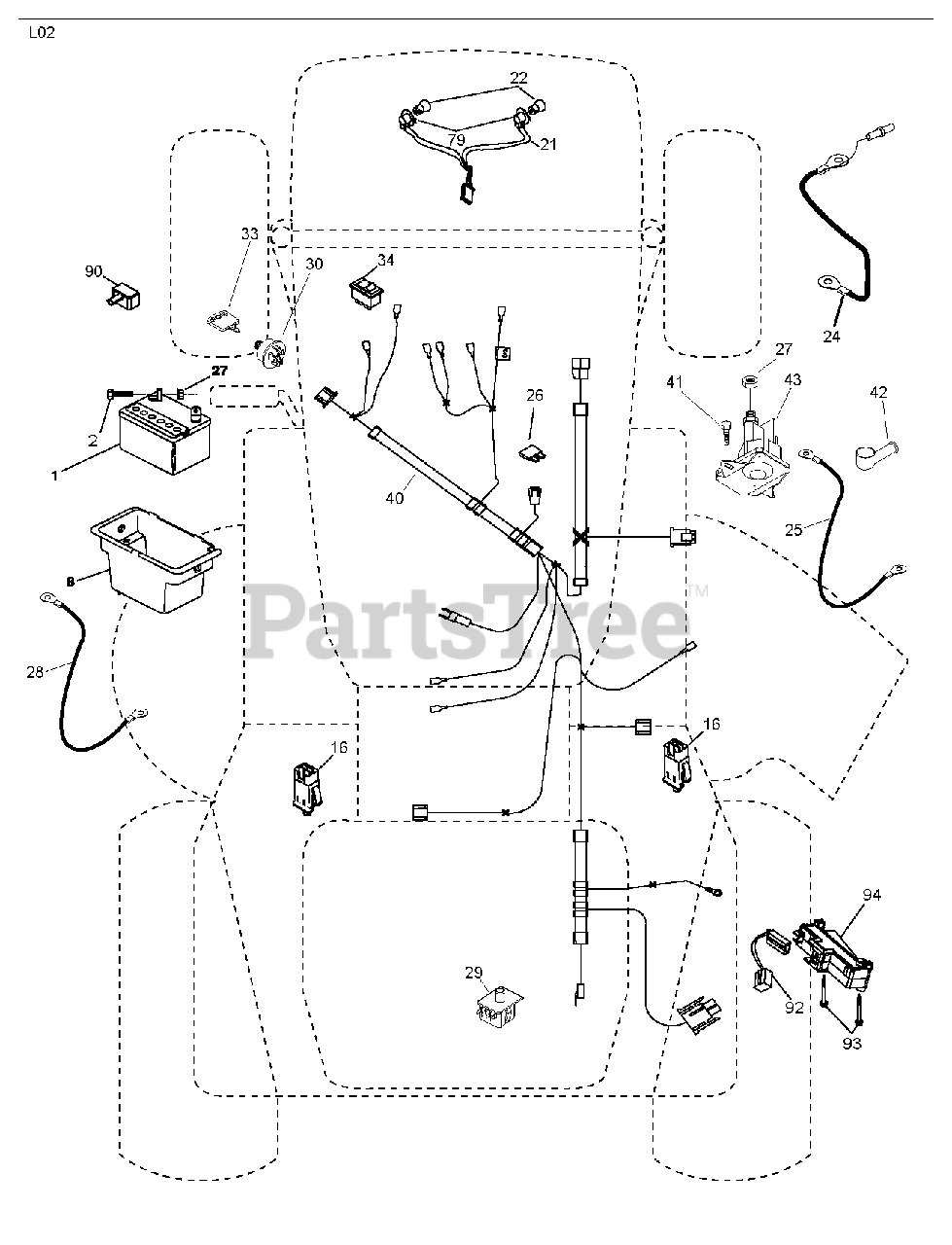

LT 2113 (960110266-07) - Jonsered Lawn Tractor (2012-08) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Jonsered 532163465

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

$7.49

$

In Stock, only 1 left!

0

8

Jonsered 532176689

BOX.BATTERY.FENDER

$

$

Not available

16

Jonsered 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

21

Jonsered 532183759

HARNESS ASSY LIGHT

$47.99

$

Usually ships in 3-10 days

0

22

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532421297

CABLE.GROUND.REAR.BTRY.8GA.44"

$24.99

$

In Stock, only 4 left!

0

25

Jonsered 532421299

CABLE BATTERY 6 GA. 11" RED

$20.99

$

In Stock, only 1 left!

0

26

Jonsered 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

27

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Jonsered 532421298

CABLE GROUND 6 GA. 12" BLACK

$14.99

$

Usually ships in 3-10 days

0

29

Jonsered 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

Usually ships in 3-10 days

0

30

Jonsered 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

33

Jonsered 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

34

Jonsered 532110712

SWITCH LT

$9.49

$

In Stock, only 4 left!

0

40

Jonsered 532197428

HARNESS.IGN.CABLE.REG.
(Superseded to 532421251)

$157.99

$

Usually ships in 3-10 days

0

41

Jonsered 871110408

No Description Available
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Jonsered 532192507

SOLENOID.W/BRASS.PLUNG
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

79

Jonsered 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

90

Jonsered 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

92

Jonsered 532196615

HARNESS.PIGTAIL.CONSLE

$18.99

$

Usually ships in 3-10 days

0

93

Jonsered 532192540

SCREW.PLASTITE

$4.99

$

Usually ships in 3-10 days

0

94

Jonsered 532191834

MODULE.REVERSE.ROS

$37.99

$

Usually ships in 3-10 days

0
