LT 2113 (960110266-05) - Jonsered Lawn Tractor (2010-09) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

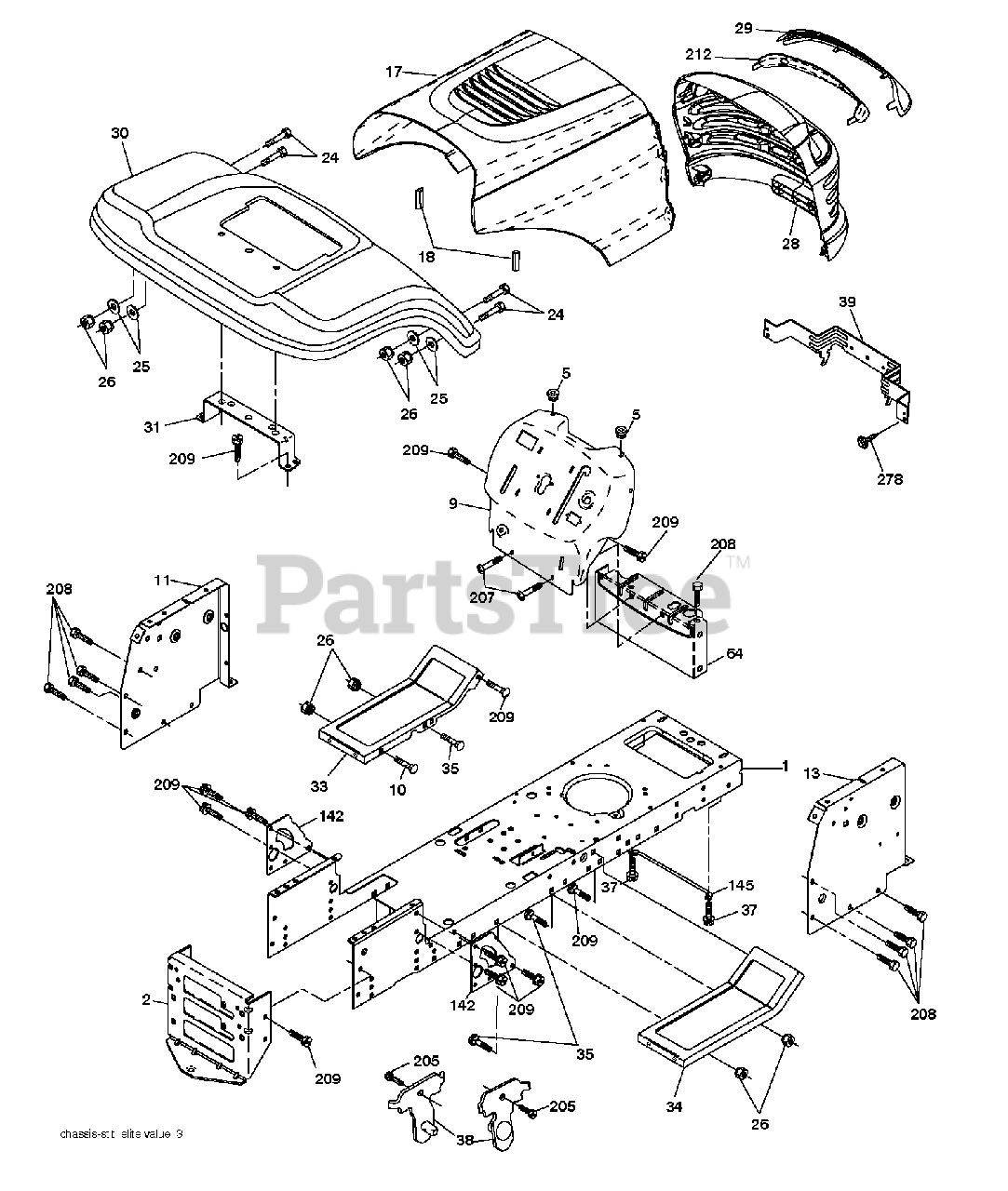

CHASSIS ENCLOSURES Parts Diagram

  • Title
1

Jonsered 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

2

Jonsered 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

5

Jonsered 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

9

Jonsered 532194822

No Description Available

$

$

Not available

10

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532174996

PANEL.DASH.LH.LTX
(Superseded to 174996)

$

$

Not available

13

Jonsered 532186952

No Description Available
(Superseded to 532186946)

$28.99

$

Usually ships in 3-10 days

0

17

Jonsered 532186707

No Description Available

$54.99

$

Usually ships in 3-10 days

0

18

Jonsered 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

$6.49

$

Usually ships in 3-10 days

0

25

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532186706

No Description Available
(Superseded to 532441532)

$96.99

$

Usually ships in 3-10 days

0

29

Jonsered 532185846

No Description Available
(Superseded to 532185741)

$20.99

$

Usually ships in 3-10 days

0

30

Jonsered 532195770

No Description Available

$

$

Not available

31

Jonsered 532136619

BRACKET FENDER
(Superseded to 136619)

$3.49

$

Usually ships in 3-10 days

0

33

Jonsered 532181193

No Description Available
(Superseded to 532182508)

$

$

Not available

34

Jonsered 532181194

No Description Available

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

37

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

39

Jonsered 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

64

Jonsered 532154798

DASH LOWER
(Superseded to 154798)

$15.99

$

Usually ships in 3-10 days

0

142

Jonsered 532175702

PLATE REINFORCEMENT

$9.49

$

Usually ships in 3-10 days

0

145

Jonsered 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

205

$6.49

$

Usually ships in 3-10 days

0

207

Jonsered 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

208

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

209

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

212

Jonsered 532183550

No Description Available
(Superseded to 583126601)

$12.99

$

Usually ships in 3-10 days

0

278

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

--

Jonsered 532005479

PLUG BUTTON T

$5.99

$

Usually ships in 3-10 days

0
