LT 2113 (960110266-04) - Jonsered Lawn Tractor (2010-03) ENGINE Parts Diagram

Lawn Tractor

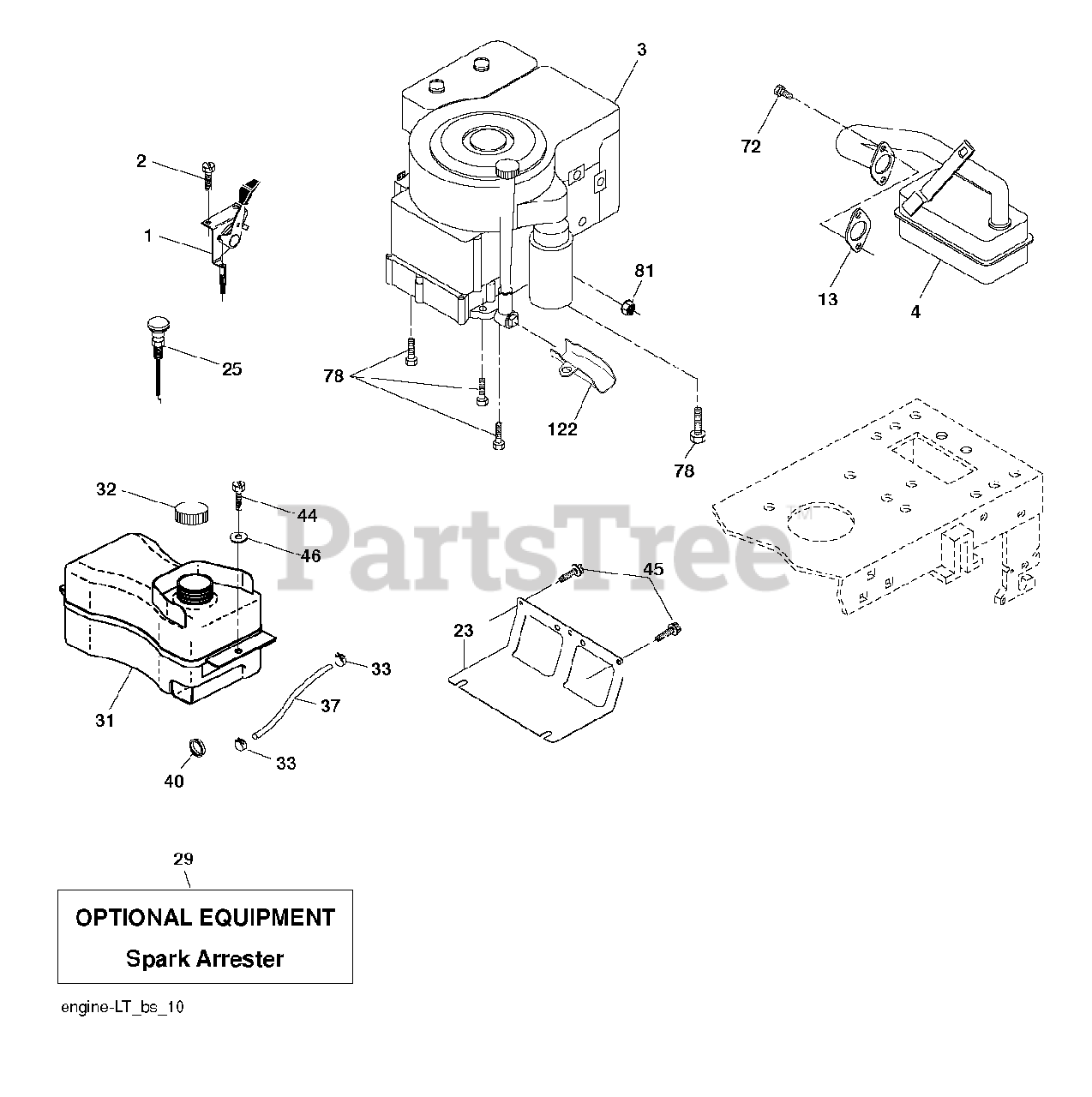

ENGINE Parts Diagram

  • Title

1

Jonsered 532170551

CONTROL TH/CH FLAG

$37.99

$

Usually ships in 3-10 days

0

2

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

3

Jonsered 000000000

No Description Available

Note: Engine B S Model No 219807-1402-B1

$

$

Not available

4

Jonsered 532179758

MUFFLER

$45.99

$

In Stock, only 3 left!

0

13

Jonsered 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

23

Jonsered 532169837

SHEILD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 532190695

No Description Available

$2.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

31

Jonsered 532407516

No Description Available

$

$

Not available

32

Jonsered 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

37

Jonsered 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

40

Jonsered 532124028

GROMMET T

$5.99

$

In Stock, only 3 left!

0

44

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

45

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

46

Jonsered 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

72

Jonsered 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

78

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

81

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

122

Jonsered 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0
