LT 2113 (960110266-00) - Jonsered Lawn Tractor (2007-09) MOWER LIFT / DECK LIFT Parts Diagram

Lawn Tractor

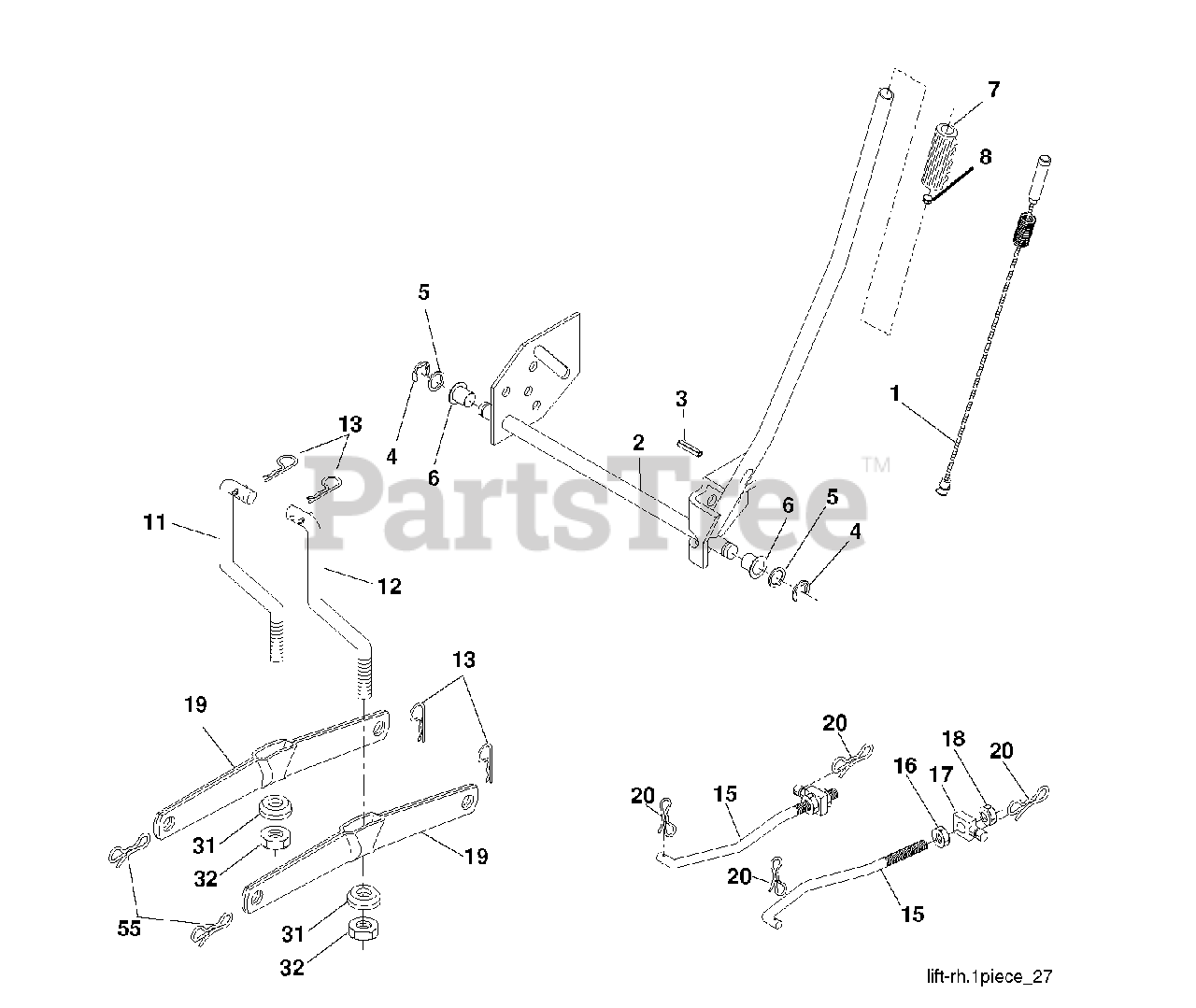

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
1

Jonsered 532198417

No Description Available

$

$

Not available

2

Jonsered 532198070

No Description Available
(Superseded to 585906501)

$56.99

$

Usually ships in 3-10 days

0

3

Jonsered 532188822

No Description Available
(Superseded to 583172901)

$7.49

$

In Stock, only 1 left!

0

4

Jonsered 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 2 left!

0

6

Jonsered 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

7

Jonsered 532109413

GRIP
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Jonsered 532122365

No Description Available
(Superseded to 532125925)

$

$

Not available

11

Jonsered 532139865

LINK LIFT LH
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Jonsered 532139866

LINK LIFT RH
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

15

Jonsered 532173288

LINK.SUSPENSION.FRONT

$13.99

$

In Stock, only 2 left!

0

16

Jonsered 873350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

$

$

Not available

18

Jonsered 873800800

NUT
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Jonsered 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

20

Jonsered 532194209

PIN.COTTER.7/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

31

Jonsered 532169865

BEARING.PIVOT.LIFT

$

$

Not available

32

Jonsered 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

55

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0
