LT 20460 (7800192) - Murray 46" Lawn Tractor, Hydro Drive, 20hp, Manual PTO (2008) Electrical Group - Hydro Drive Parts Diagram

46" Lawn Tractor, Hydro Drive, 20hp, Manual PTO

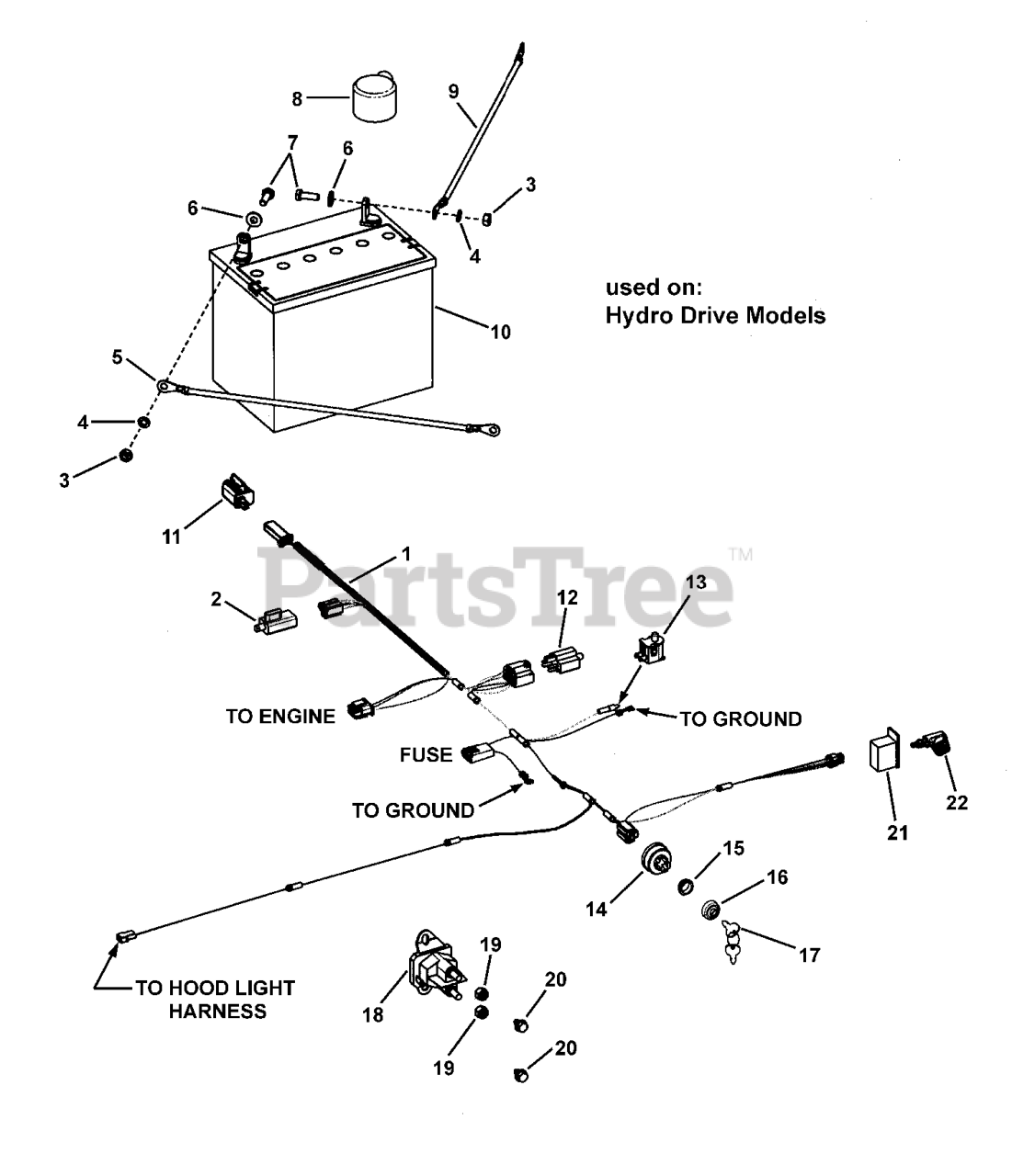

Electrical Group - Hydro Drive Parts Diagram

  • Title

1

Murray 7101432YP

HARNESS, WIRING, HYDRO, TCT, MAN PTO

$74.99

$

Usually ships in 2-12 days

0

2

Murray 094136MA

SWITCH, LIMIT, NO/NC, SNAP-IN

$12.99

$

Usually ships in 2-12 days

0

3

Murray 2816622SM

NUT, HEX 1/4-20 NC-2B YELLOW
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

4

Murray 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

5

Murray 024X32MA

CABLE, BAT 8GA 12.00L - BLACK

$8.49

$

Usually ships in 2-12 days

0

6

Murray 2821319SM

WASHER, 0.250(0.27IDX0.62ODX.05THK)YEL
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

7

Murray 2823341SM

CAPSCREW, HEX HD 1/4-20X0.750 G5 YEL
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

8

Murray 690604MA

BOOT, BATTERY POSITIVE

$5.99

$

Usually ships in 2-12 days

0

9

Murray 024X31MA

CABLE, BAT 8GA 18.00L - RED

$7.49

$

In Stock, only 1 left!

0

10

Murray 1685215SM

BATTERY KIT, 12 VOLT, 230 CCA

Note: (shipped dry)

$

$

Not available

12

Murray 1726774SM

SWITCH, 3 POLE, PLUNGER, SNAP-IN

$20.99

$

Usually ships in 2-12 days

0

13

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

11

Murray 1001575MA

SWITCH, LIMIT, NO, SNAP-IN

$9.99

$

In Stock, only 1 left!

0

14

Murray 7026343SM

SWITCH, IGNITION-AFTERFIRE SOLENOID

$38.99

$

In Stock, Qty 18

0

15

Murray 7100329YP

NUT, 5/8"-32 E-START
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

16

Murray 7100330YP

CAP, E-START

$6.99

$

Usually ships in 2-12 days

0

17

Murray 1717163SM

KEY, IGNITION INDAK (SET OF 2)

$8.99

$

In Stock, Qty 20+

0

18

Murray 7769224MA

SOLENOID, 3 POLE

$27.99

$

In Stock, only 3 left!

0

19

Murray 1908125MA

NUT, HEX LOCK 1/4-20 BZ

$3.99

$

Usually ships in 2-12 days

0

20

Murray 26X229MA

SCREW, 1/4-14X.38"ST-

$4.49

$

In Stock, only 1 left!

0

21

Murray 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

22

Murray 1726557SM

KEY, RMO Module Plastic

$5.49

$

In Stock, Qty 20+

0

--

Murray 1001304MA

KEY, IGNITION

Note: (not shown)

$5.49

$

In Stock, only 1 left!

0

--

Murray 250X149MA

HARNESS, RR GR

Note: (not shown)

$23.99

$

Usually ships in 2-12 days

0
