LT 20440 (2690759) - Snapper 44" Lawn Tractor, 20hp Seat & Seat Deck Group Parts Diagram

44" Lawn Tractor, 20hp

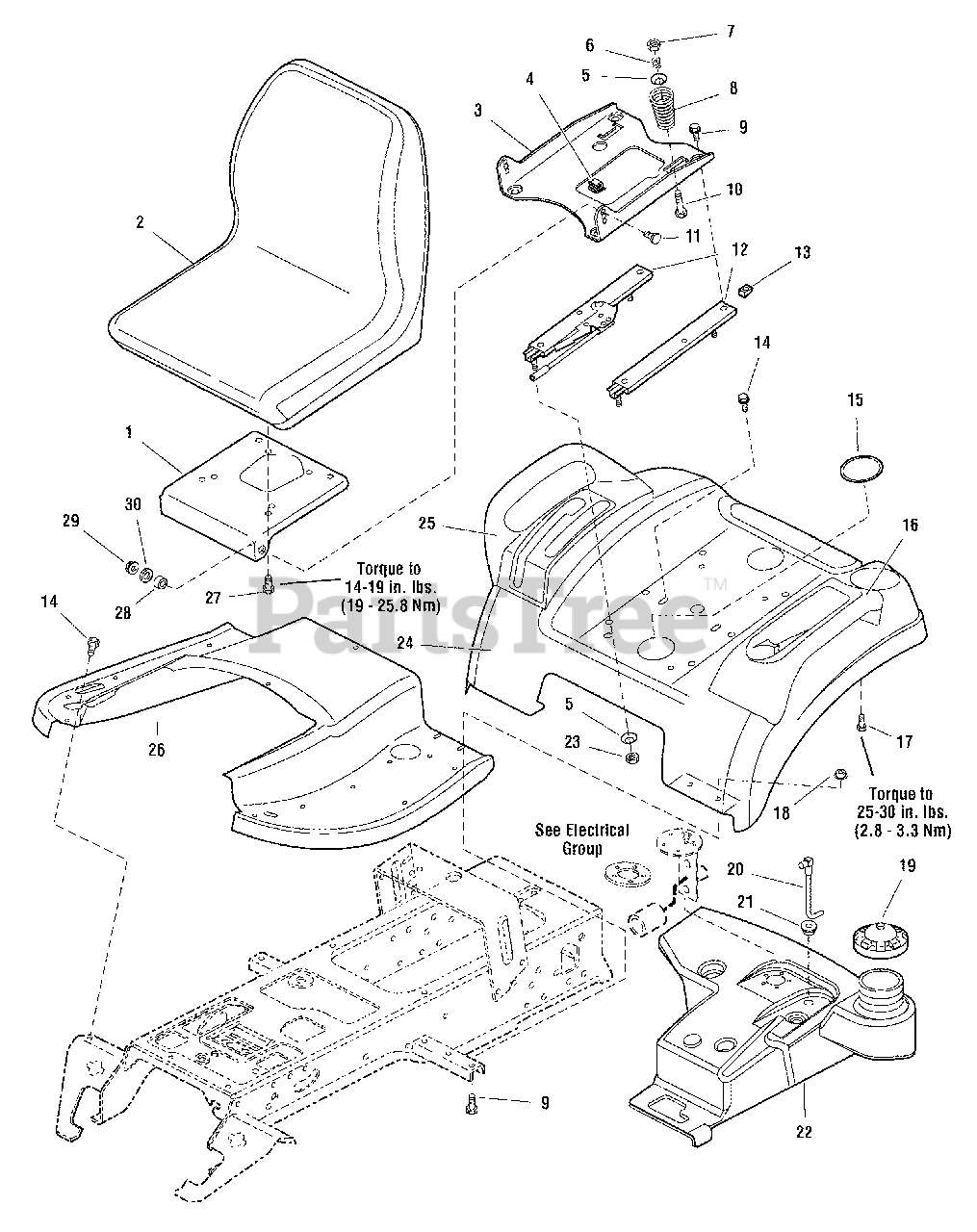

Seat & Seat Deck Group Parts Diagram

  • Title

1

Snapper 1722129A

BRACKET, 1-5/8 x 1-3/4
(Superseded to 1722129ASM)

$62.99

$

Usually ships in 2-12 days

0

2

Snapper 1731998

SEAT, 15" Back
(Superseded to 1731998SM)

$381.99

$

Usually ships in 2-12 days

0

3

Snapper 1722128A

SUPPORT, Seat
(Superseded to 1722128ASM)

$87.99

$

Usually ships in 2-12 days

0

4

Snapper 2172434

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 1709256A

WASHER, Spring, 5/16 x 1-1/4
(Superseded to 1709256SM)

$5.99

$

In Stock, only 1 left!

0

6

Snapper 1714263

SPRING, Compression
(Superseded to 1714263SM)

$4.99

$

In Stock, only 1 left!

0

7

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 1717051

SPRING, Compression
(Superseded to 1717051FS)

$13.99

$

Usually ships in 2-12 days

0

9

Snapper 1930591

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

10

Snapper 1931339

CARRIAGE BOLT, 5/16-18 x 2
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

11

Snapper 1931350

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

12

Snapper 1722356

SLIDE, Seat
(Superseded to 1722356SM)

$62.99

$

In Stock, only 1 left!

0

13

Snapper 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 3 left!

0

14

Snapper 1930601

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

15

Snapper 1722309

PLUG, Plastic
(Superseded to 1722309SM)

$5.99

$

In Stock, Qty 11

0

16

Snapper 1729711

POD, with Cup Holder, LH
(Superseded to 1687789YP)

$103.99

$

Usually ships in 2-12 days

0

17

Snapper 2860664

CAPSCREW, Hex Washer Head, 1/4-20 x 5/8
(Superseded to 2860664SM)

$5.99

$

In Stock, only 2 left!

0

18

Snapper 1931277

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 1715917

CAP, Gas
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

20

Snapper 1726902

TUBE & ELBOW ASSEMBLY
(Superseded to 1757609YP)

$19.99

$

Usually ships in 2-12 days

0

21

Snapper 1654930

BUSHING, 3/8 x 9/16 x 5/8, Rubber
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

22

Snapper 1722432

TANK, Fuel
(Superseded to 1722432SM)

$330.99

$

Usually ships in 2-12 days

0

23

Snapper 1960636

NUT, Hex KEPS, 5/16-18
(Superseded to 1960636SM)

$4.99

$

In Stock, only 1 left!

0

24

Snapper 1722106D

DECK, Seat, Red
(Superseded to 1722106DSM)

$512.99

$

Usually ships in 2-12 days

0

25

Snapper 1722108

POD, RH with 2 Slots
(Superseded to 1687790YP)

$103.99

$

Usually ships in 2-12 days

0

26

Snapper 1729322D

TUNNEL, Red

$

$

Currently unavailable

27

Snapper 1960667

CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1
(Superseded to 1960667SM)

$4.99

$

Usually ships in 2-12 days

0

28

Snapper 1663752

SPACER, 25/64 x 5/8 x 3/16, Hardened
(Superseded to 1663752SM)

$5.99

$

In Stock, only 2 left!

0

29

Snapper 1930645

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

30

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
