LT 2044 (2690761) - Snapper 44" Lawn Tractor, 20hp Wheels & Tires Group Parts Diagram

44" Lawn Tractor, 20hp

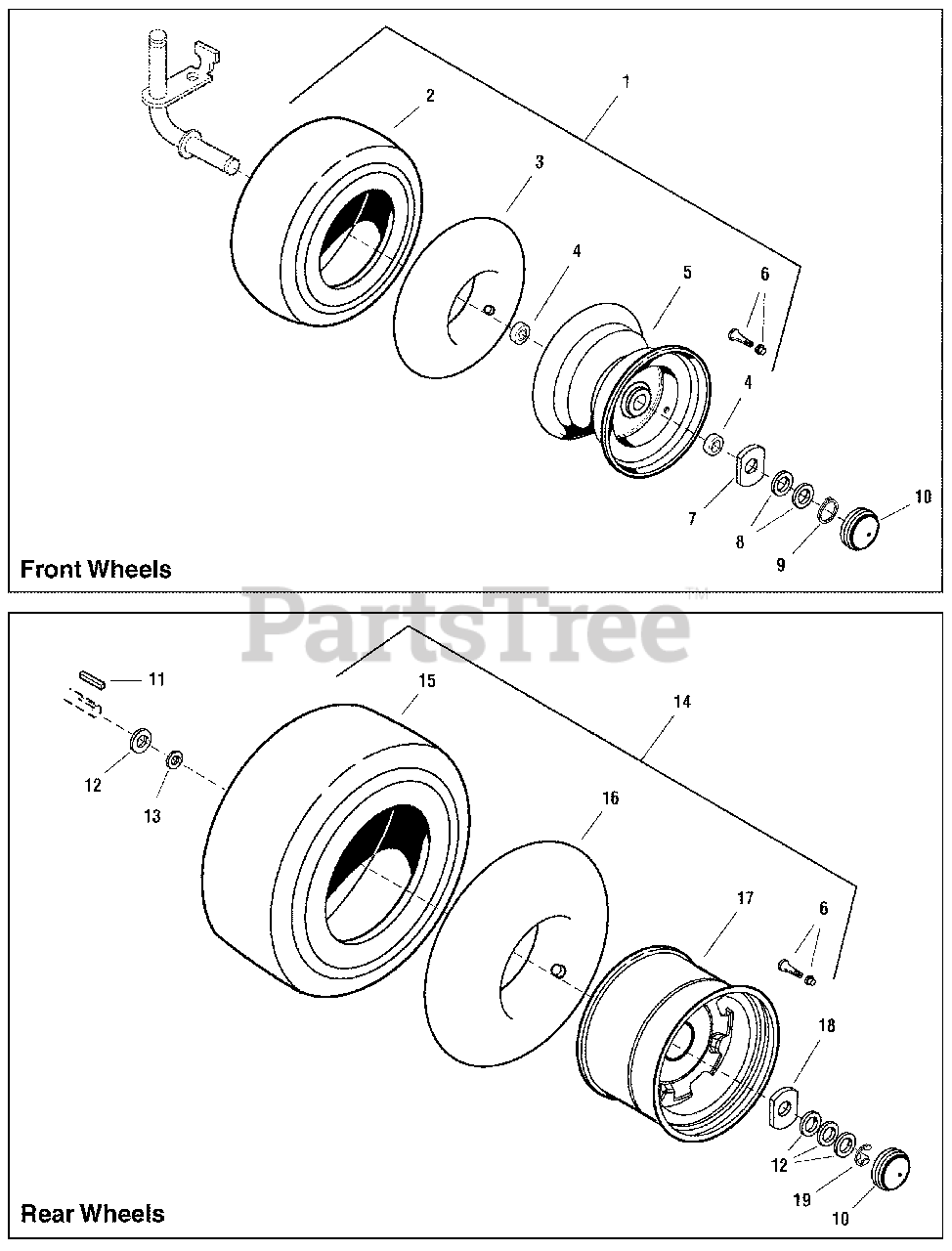

Wheels & Tires Group Parts Diagram

  • Title

1

Snapper 1732202SM

WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4, 5, & 6)

$213.99

$

In Stock, only 1 left!

0

2

Snapper 1733882SM

TIRE, 15 x 6, Super Turf

$104.99

$

In Stock, only 1 left!

0

3

Snapper 1664090SM

TUBE, Tire, Front, 4.10/3.50

$26.99

$

In Stock, only 3 left!

0

4

Snapper 1717056SM

BEARING, Ball

$33.99

$

Usually ships in 2-12 days

0

5

Snapper 1722837SM

WHEEL, 4-1/2" x 6"

$

$

Not available

6

Snapper 2172353SM

VALVE STEM & CAP ASSEMBLY
(Superseded to 024373MA)

$8.49

$

In Stock, only 2 left!

0

7

Snapper 1722726SM

WASHER, Special

$5.49

$

In Stock, only 1 left!

0

8

Snapper 1919394SM

WASHER, 1
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

10

Snapper 1722676SM

CAP, Hub, Gray

$5.49

$

In Stock, Qty 20+

0

11

Snapper 1729279SM

KEY, Parellel, 3/16 x 3/16 x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

12

Snapper 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 20+

0

13

Snapper 1960114SM

WASHER, 3/4 x 1-1/16 x 5/64
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 1726491SM

WHEEL & TIRE ASSEMBLY, Rear, (Includes Ref. Nos. 6, 15, 16 & 17)
(Superseded to 1755553YP)

$396.99

$

In Stock, only 2 left!

0

15

Snapper 1727136SM

TIRE, 22 x 10, 10 Super Turf

$179.99

$

Usually ships in 2-12 days

0

16

Snapper 2173477SM

TUBE, Tire, 20 x 8, Rear

$85.99

$

Usually ships in 2-12 days

0

17

Snapper 1726492SM

WHEEL, 7 x 9.97 Dia. 3/4 ID, Hub

$

$

Not available

18

Snapper 1722717SM

WASHER, Special

$7.99

$

In Stock, Qty 20+

0

19

Snapper 2827794SM

RING, "E" External

$3.49

$

In Stock, Qty 16

0
